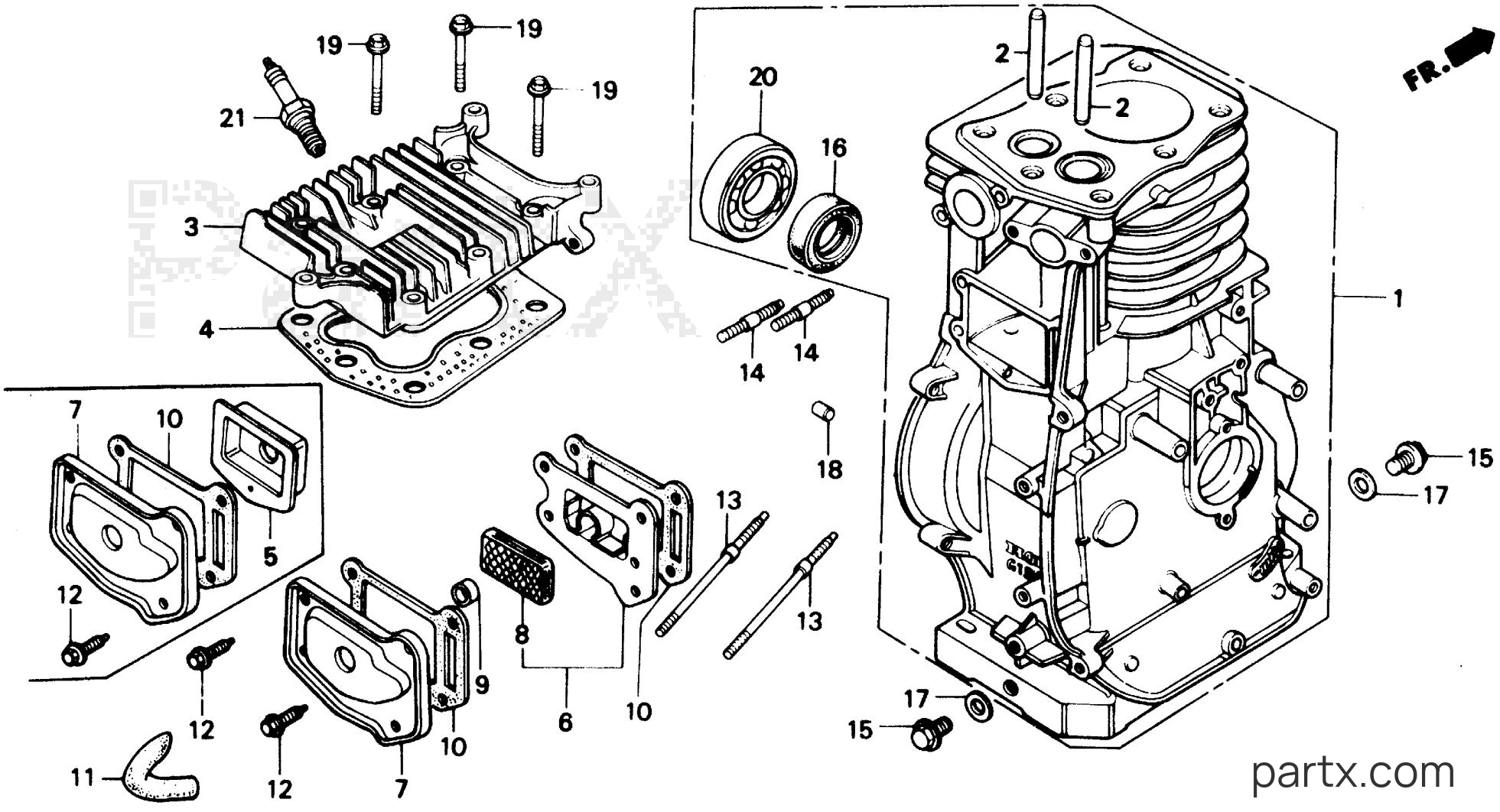

All Years Snowblower HS - HS35 A CYLINDER diagram
001
Honda
CYLINDER ASSY. (NOT AVAILABLE)12000-887-325
Required: 1
CYLINDER ASSY. (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
GUIDE, VALVE (OS)12134-887-305
Required: 2
GUIDE, VALVE (OVER SIZE)
$16.51
You save $2.91
-15%
003
Honda
CYLINDER HEAD12221-887-315
Required: 1
CYLINDER HEAD
$20.82
You save $3.67
-15%
004
Honda
GASKET, CYL HD12281-887-306
Required: 1
GASKET, CYLINDER HEAD
$31.43
You save $5.55
005
Honda
CASE, BREATHER12360-887-000
Required: 1
CASE, BREATHER
Price unavailable
006
Honda
CASE, BREATHER (NOT AVAILABLE)12360-887-010
Required: 1
CASE, BREATHER (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
COVER, TAPPET ROOM12361-887-000
Required: 1
COVER, TAPPET ROOM
$14.04
You save $2.48
-15%
008
Honda
FILTER, BREATHER12367-883-003
Required: 1
FILTER, BREATHER
$2.98
You save $0.52
-15%
009
Honda
SEAL, BREATHER12369-883-000
Required: 1
SEAL, BREATHER
$3.52
You save $0.62
-15%
010
Honda
GASKET, TAPPET COVER12375-887-000
Required: 1
GASKET, TAPPET COVER
$2.94
You save $0.52
-15%
010
Honda
GASKET, TAPPET COVER12375-887-000
Required: 2
GASKET, TAPPET COVER
$2.94
You save $0.52
011
Honda
TUBE, BREATHER (NOT AVAILABLE)15721-730-000
Required: 1
TUBE, BREATHER (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 4
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
013
Honda
BOLT, STUD (6X89)90043-883-681
Required: 2
BOLT, STUD (6X89)
$5.76
You save $1.02
-15%
014
Honda
BOLT, STUD (8X35)90047-883-000
Required: 2
BOLT, STUD (8X35)
$4.13
You save $0.73
-15%
015
Honda
BOLT, DRAIN (12X15)90131-896-650
Required: 2
BOLT, DRAIN PLUG (12X15)
$4.13
You save $0.73
016
Honda
OIL SEAL (25X41X6)91202-883-005
Required: 1
OIL SEAL (25X41X6)
Price unavailable
-15%
017
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 2
WASHER, DRAIN PLUG (12MM)
In stock
5+ in stock
$1.27
You save $0.23
-20%
018
Honda
PIN, DOWEL (8X14)94301-08140
Required: 2
PIN, DOWEL (8X14)
$2.19
You save $0.55
-20%
019
Honda
BOLT, FLANGE (8X45)95701-08045-08
Required: 7
BOLT, FLANGE (8X45)
$2.22
You save $0.56
-15%
020
Honda
BEARING (6205)96100-62050-00
Required: 1
BEARING, RADIAL BALL (6205)
In stock
Only 1 remaining
$20.50
You save $3.62
-15%
021
Honda
SPARK PLUG (BR-4HS)98076-54716
Required: 1
SPARK PLUG (BR-4HS) (NGK)
$2.53
You save $0.45
-15%
021
Honda
SPARK PLUG (W14FR-U)98076-54757
Required: 1
SPARK PLUG (W14FR-U)
$2.60
You save $0.46
021
Honda
SPARK PLUG (BPR-4HS-10) (NGK)98076-54914
Required: 1
SPARK PLUG (BPR-4HS-10) (NGK)
Price unavailable
-15%
021
Honda
S/PLG (BPR4HS-10)98076-54917
Required: 1
SPARK PLUG (BPR4HS-10)
$2.09
You save $0.37
-15%
021
Honda
S/PLG (W14FPR-UL10)98076-54954
Required: 1
SPARK PLUG (W14FPR-UL10) (DENSO)
$2.69
You save $0.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
