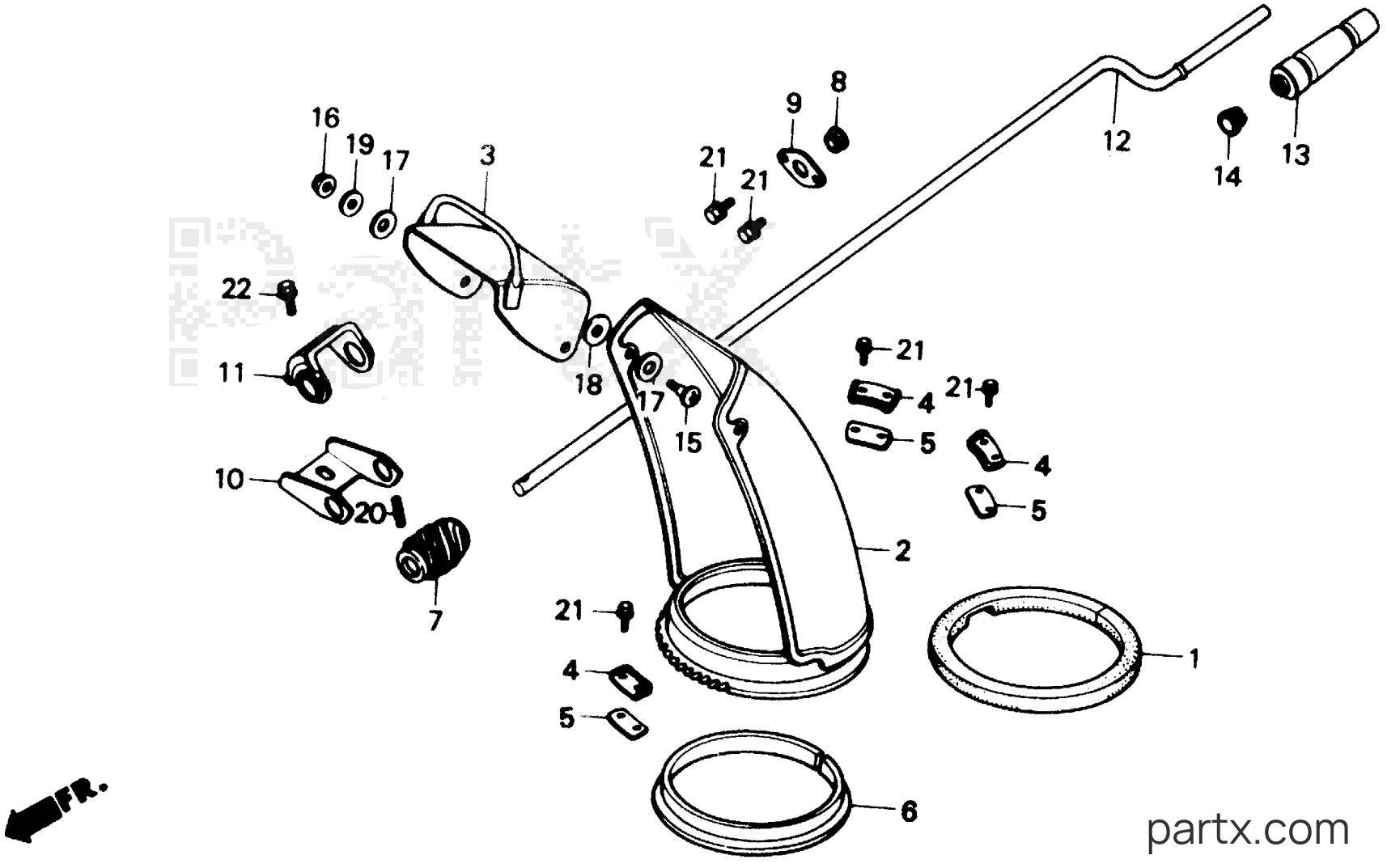

All Years Snowblower HS - HS35 A CHUTER diagram
001
Honda
SEAL, CHUTE NECK (NOT AVAILABLE)63161-730-010
Required: 1
SEAL, CHUTE NECK (NOT AVAILABLE)
Price unavailable
002
Honda
CHUTE *R8*(BRIGHT RED) (NOT AVAILABLE)76310-730-000H
Required: 1
CHUTE *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
003
Honda
GUIDE, CHUTE *NH1*(BLACK) (NOT AVAILABLE)76320-730-000B
Required: 1
GUIDE, CHUTE *NH1*(BLACK) (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
PLATE, CHUTE SETTING76321-730-000
Required: 3
PLATE, CHUTE SETTING
$5.80
You save $1.02
005
Honda
WASHER, CHUTE SETTING (NOT AVAILABLE)76323-730-000
Required: 3
WASHER, CHUTE SETTING (NOT AVAILABLE)
Price unavailable
006
Honda
BUSH, CHUTE (NOT AVAILABLE)76325-730-000
Required: 1
BUSH, CHUTE (NOT AVAILABLE)
Price unavailable
-20%
007
Honda
GEAR, CHUTE DRIVE76331-730-000
Required: 1
GEAR, CHUTE DRIVE
$55.12
You save $13.78
-20%
008
Honda
BUSH, CHUTE HANDLE76336-730-000
Required: 1
BUSH, CHUTE HANDLE
$4.78
You save $1.20
-15%
009
Honda
PLATE, CHUTE HANDLE76337-730-000
Required: 1
PLATE, CHUTE HANDLE
$4.52
You save $0.80
010
Honda
STAY, DRIVE GEAR (NOT AVAILABLE)76340-730-000
Required: 1
STAY, DRIVE GEAR (NOT AVAILABLE)
Price unavailable
011
Honda
COVER, DRIVE GEAR (NOT AVAILABLE)76343-730-000
Required: 1
COVER, DRIVE GEAR (NOT AVAILABLE)
Price unavailable
012
Honda
HANDLE, CHUTE (NOT AVAILABLE)76350-730-000
Required: 1
HANDLE, CHUTE (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
GRIP, CHUTE HANDLE76351-730-000
Required: 1
GRIP, CHUTE HANDLE
$10.49
You save $1.85
-20%
014
Honda
BUSH A, CHUTE HANDLE76352-730-000
Required: 1
BUSH A, CHUTE HANDLE
$4.78
You save $1.20
015
Honda
SCREW, PIVOT (NOT AVAILABLE)90010-730-000
Required: 2
SCREW, PIVOT (NOT AVAILABLE)
Price unavailable
-20%
016
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 2
NUT, SELF-LOCK (6MM)
$3.12
You save $0.78
-20%
016
Honda
NUT, CAP (6MM)90201-415-000
Required: 2
NUT, CAP (6MM)
$2.10
You save $0.52
-15%
016
Honda
NUT, SELF-LOCK (6MM)90343-892-000
Required: 2
NUT, SELF-LOCK (6MM)
$3.32
You save $0.58
-15%
017
Honda
WASHER, CHUTE GUIDE90420-730-003
Required: 4
WASHER, CHUTE GUIDE
$4.11
You save $0.73
-15%
018
Honda
WASHER (10.5MM)90423-730-000
Required: 2
WASHER, CHUTE THRUST (10.5MM)
$2.21
You save $0.39
-20%
019
Honda
WASHER, PLAIN (6MM)94103-06000
Required: 2
WASHER, PLAIN (6MM)
$0.96
You save $0.24
-15%
020
Honda
PIN, SPRING (4X32)94305-40322
Required: 1
PIN, SPRING (4X32)
$2.35
You save $0.41
-20%
021
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 8
BOLT, FLANGE (6X10)
$1.23
You save $0.31
-50%
022
Honda
BOLT, FLANGE (8X12)95701-08012-08
Required: 1
BOLT, FLANGE (8X12)
In stock
Only 2 remaining
$1.10
You save $1.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
