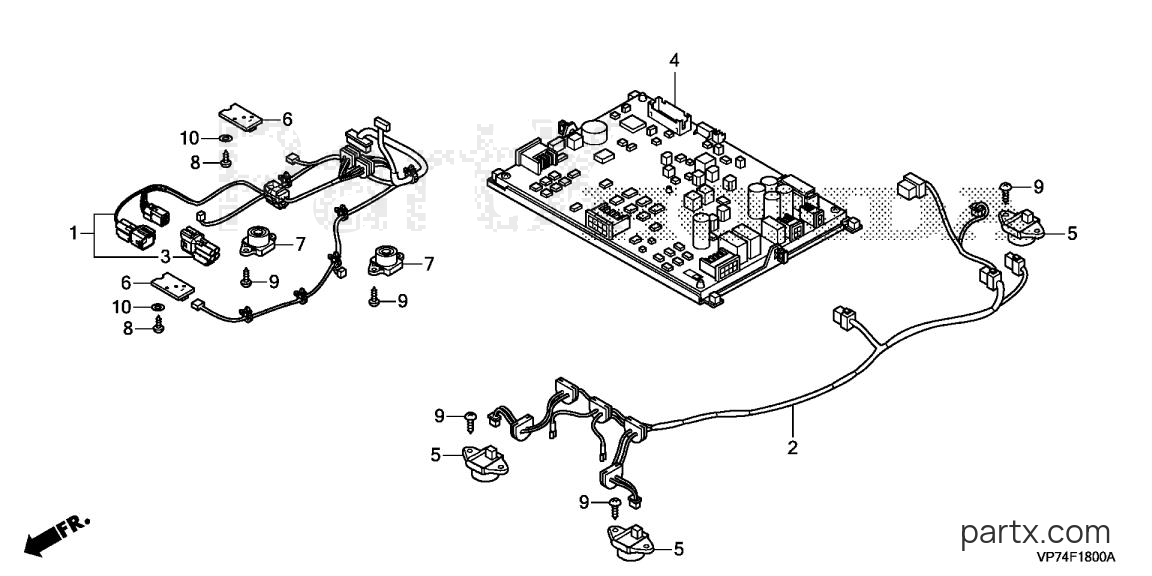

All Years Robotic Mowers HRM - HRM520K2 EAA WIRE HARNESS diagram
-15%
001
Honda
WIRE HARNESS, MAIN32100-VP7-A01
Required: 1
WIRE HARNESS ASSY., MAIN
$76.72
You save $13.54
-15%
002
Honda
SUB-WIRE HARNESS32105-VP7-A00
Required: 1
SUB-WIRE HARNESS ASSY.
$37.33
You save $6.59
-15%
003
Honda
CONNECTOR (4P)32174-VP7-000
Required: 1
CONNECTOR, DUMMY (4P)
$12.48
You save $2.20
-15%
004
Honda
CONTROL UNIT, EL34750-VP7-A56
Required: 1
CONTROL UNIT, EL
$1268.47
You save $223.85
-15%
005
Honda
SENSOR ASSY., AREA34760-VP7-004
Required: 3
SENSOR ASSY., AREA
$48.30
You save $8.52
-15%
006
Honda
SENSOR, OBSTRUCTION36240-VP9-003
Required: 2
SENSOR ASSY., OBSTRUCTION
$29.82
You save $5.26
-15%
007
Honda
SENSOR ASSY., LIFT36250-VP7-003
Required: 2
SENSOR ASSY., LIFT
$51.56
You save $9.10
-15%
008
Honda
SCREW, TAP (4X10)93913-14120
Required: 2
SCREW, TAPPING (4X10)
$0.94
You save $0.17
-15%
009
Honda
SCREW, TAP (4X12)93913-14220
Required: 10
SCREW, TAPPING (4X12)
$0.94
You save $0.17
-15%
010
Honda
WASHER, PLAIN (4MM)94103-04800
Required: 2
WASHER, PLAIN (4MM)
$1.02
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
