All diagrams for this model

All Years Robotic Mowers HRM - HRM520K2 EAA LABEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

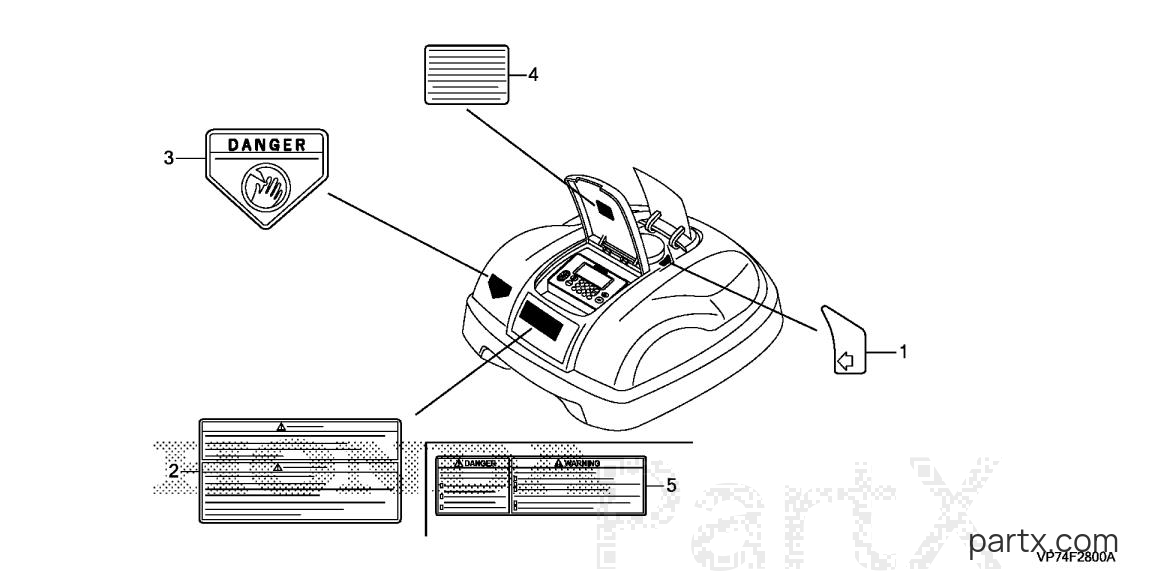

Honda HRM520K2 EAA - LABEL
Change View:
-15%
MARK
001
Honda
MARK87138-VP7-A00
Required: 1
MARK, HEIGHT INDICATION
Cross Ship
Leaves in 2-5 days
$3.64
$3.09
You save $0.55
More details
-15%
MARK, CAUTION
002
Honda
MARK, CAUTION87150-VP7-C00
Required: 1
MARK, CAUTION (US)
Cross Ship
Leaves in 2-5 days
$15.58
$13.24
You save $2.34
More details
-15%
MARK, DANGER
003
Honda
MARK, DANGER87197-VP7-C00
Required: 1
MARK, DANGER
Cross Ship
Leaves in 2-5 days
$36.70
$31.20
You save $5.51
More details
-15%
MARK, FCC TEXT
004
Honda
MARK, FCC TEXT87654-VP7-C00
Required: 1
MARK, FCC TEXT
Cross Ship
Leaves in 2-5 days
$22.16
$18.84
You save $3.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
