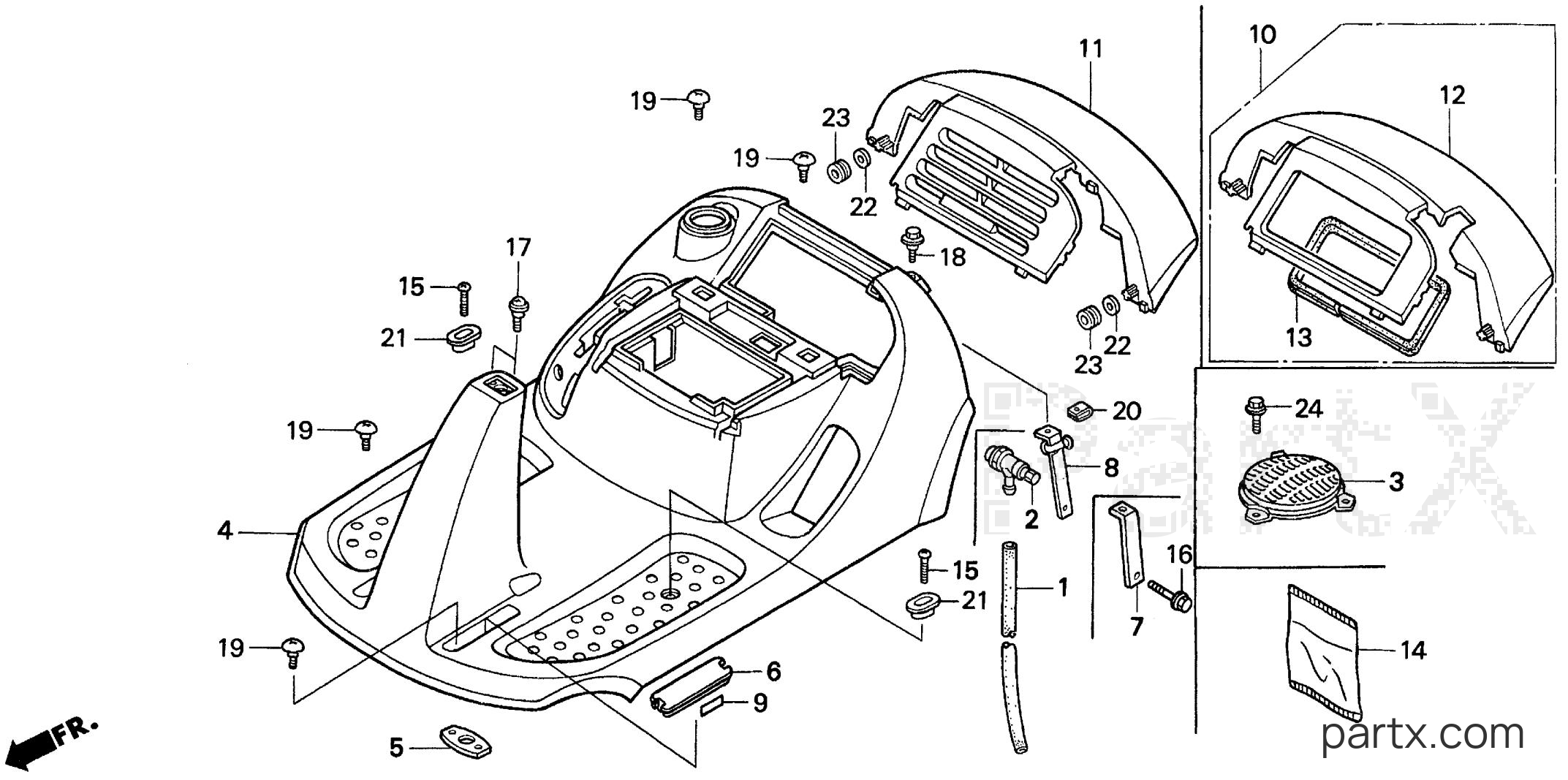

Honda H1011K1 SAC - PLATFORM
Change View:
-15%
TUBE, OIL DRAIN
001
Honda
TUBE, OIL DRAIN15552-VE4-003
Required: 1
TUBE, OIL DRAIN (SOURCE: VINTAGE PARTS INC.)
Cross Ship
Leaves in 2-5 days
$4.44
$3.77
You save $0.67
More details
-15%
VALVE, OIL SHUT-OFF
002
Honda
VALVE, OIL SHUT-OFF15558-772-010
Required: 1
VALVE, OIL SHUT-OFF
Cross Ship
Leaves in 2-5 days
$29.00
$24.65
You save $4.35
More details
COVER, SCREEN GRID (NOT AVAILABLE)
003
Honda
COVER, SCREEN GRID (NOT AVAILABLE)28456-772-000
Required: 1
COVER, SCREEN GRID (NOT AVAILABLE)
Price unavailable
PLATFORM *R165*(JOLLY RED)
004
Honda
PLATFORM *R165*(JOLLY RED)63111-772-010ZA
Required: 1
PLATFORM *R165*(JOLLY RED)
Price unavailable
-15%
PLATE
005
Honda
PLATE63129-772-000
Required: 1
PLATE, STEERING SHAFT
Cross Ship
Leaves in 2-5 days
$5.34
$4.54
You save $0.80
More details
-15%
BRACKET, PLATFORM
007
Honda
BRACKET, PLATFORM63137-772-000
Required: 1
BRACKET, PLATFORM
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
HOOD, RR. *R165*(JOLLY RED) (NOT AVAILABLE)
011
Honda
HOOD, RR. *R165*(JOLLY RED) (NOT AVAILABLE)63411-772-000ZA
Required: 1
HOOD, RR. *R165*(JOLLY RED) (NOT AVAILABLE)
Price unavailable
-15%
BAG, OWNER'S MANUAL
014
Honda
BAG, OWNER'S MANUAL83642-772-000
Required: 1
BAG, OWNER'S MANUAL
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
-15%
SCREW, TORUS (6X20)
015
Honda
SCREW, TORUS (6X20)90001-GW2-000
Required: 2
SCREW, TORUS (6X20)
Cross Ship
Leaves in 2-5 days
$3.46
$2.94
You save $0.52
More details
-15%
SCREW
017
Honda
SCREW90103-GB6-930
Required: 2
SCREW, HANDLE COVER SETTING
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
-15%
SCREW, PAN (6MM)
018
Honda
SCREW, PAN (6MM)90113-GS6-010
Required: 1
SCREW, PAN (6MM)
Cross Ship
Leaves in 2-5 days
$3.68
$3.13
You save $0.55
More details
-15%
SCREW
019
Honda
SCREW90123-750-000
Required: 4
SCREW, METER VISOR SETTING
Cross Ship
Leaves in 2-5 days
$4.62
$3.93
You save $0.69
More details
-15%
NUT, CLIP (6MM)
020
Honda
NUT, CLIP (6MM)90344-964-003
Required: 1
NUT, CLIP (6MM)
Cross Ship
Leaves in 2-5 days
$5.16
$4.39
You save $0.77
More details
-15%
WASHER (6X9)
021
Honda
WASHER (6X9)90513-405-000
Required: 2
WASHER (6X9)
Cross Ship
Leaves in 2-5 days
$2.68
$2.28
You save $0.40
More details
-15%
WASHER (16MM)
022
Honda
WASHER (16MM)90532-772-000
Required: 2
WASHER (16MM)
Cross Ship
Leaves in 2-5 days
$0.34
$0.29
You save $0.05
More details
GROMMET, RR. HOOD (NOT AVAILABLE)
023
Honda
GROMMET, RR. HOOD (NOT AVAILABLE)91651-772-000
Required: 2
GROMMET, RR. HOOD (NOT AVAILABLE)
Price unavailable
FLOOR MAT SET (NOT AVAILABLE)
NI
Honda
FLOOR MAT SET (NOT AVAILABLE)06830-772-000
Required: 1
FLOOR MAT SET (NOT AVAILABLE)
Price unavailable
