All diagrams for this model

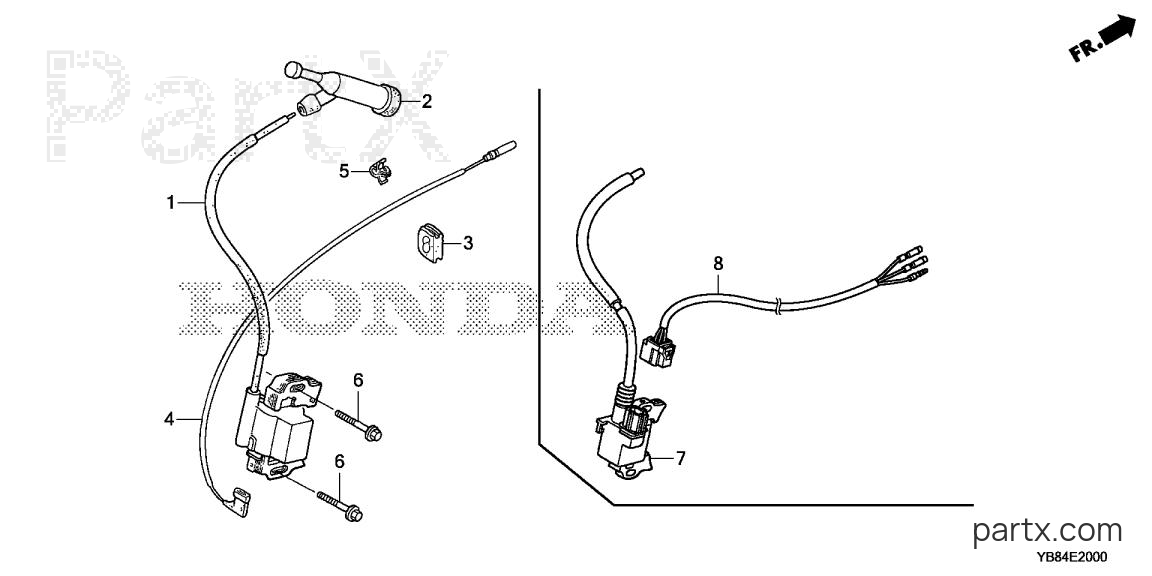

All Years Pumps WT - WT30XK4 AC IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda WT30XK4 AC - IGNITION COIL
Change View:
-15%
COIL ASSY., IGNITION
001
Honda
COIL ASSY., IGNITION30500-ZE1-073
Required: 1
COIL ASSY., IGNITION
Cross Ship
Leaves in 2-5 days
$91.44
$77.72
You save $13.72
More details
-20%
CAP ASSY.
002
Honda
CAP ASSY.30700-ZE1-013
Required: 1
CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)
Cross Ship
Leaves in 2-5 days
$23.12
$18.50
You save $4.62
More details
-15%
WIRE (370MM)
004
Honda
WIRE (370MM)36101-ZE1-010
Required: 1
WIRE, STOP SWITCH (370MM)
Cross Ship
Leaves in 2-5 days
$11.04
$9.38
You save $1.66
More details
-20%
BOLT (6X25) (CT200)
006
Honda
BOLT (6X25) (CT200)90121-952-000
Required: 2
BOLT, FLANGE (6X25) (CT200)
Cross Ship
Leaves in 2-5 days
$2.74
$2.19
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
