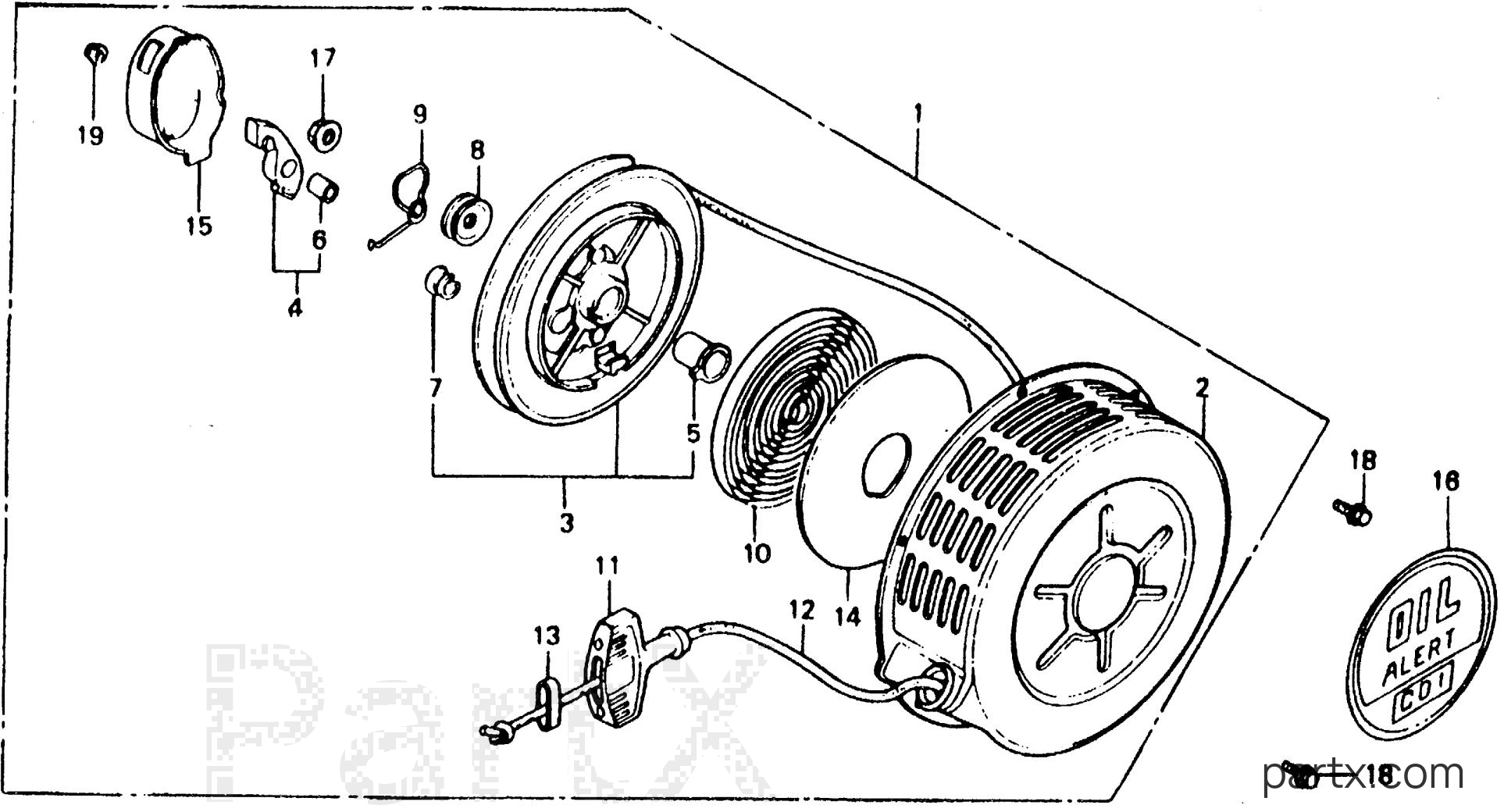

All Years Pumps WT - WT30 C WT20/30 RECOIL STARTER diagram
001
Honda
STARTER ASSY., RECOIL *R8*(BRIGHT RED)28400-883-040H
Required: 1
STARTER ASSY., RECOIL *R8*(BRIGHT RED)
Price unavailable
-15%
002
Honda
CASE, STARTER *R8*28410-883-030ZB
Required: 1
CASE, STARTER *R8*(BRIGHT RED)
$71.84
You save $12.68
-15%
003
Honda
REEL, STARTER28420-889-010
Required: 1
REEL, STARTER
$29.87
You save $5.27
-15%
$7.16
You save $1.26
-15%
$5.08
You save $0.90
-15%
006
Honda
BUSH, RATCHET28425-889-300
Required: 1
BUSH, RATCHET
$4.17
You save $0.74
-15%
007
Honda
*28400-883-50528427-883-300
Required: 1
BUSH, REEL STARTER (NA USE ALT: 28400-883-505)
$4.13
You save $0.73
-15%
008
Honda
PLATE, FRICTION28432-883-000
Required: 1
PLATE, FRICTION
$4.66
You save $0.82
-15%
009
Honda
SPRING, FRICTION28441-883-020
Required: 1
SPRING, FRICTION
$8.01
You save $1.41
-15%
010
Honda
SPRING, RETURN28442-883-000
Required: 1
SPRING, RETURN
$18.26
You save $3.22
-15%
011
Honda
GRIP, STARTER28461-883-000
Required: 1
GRIP, STARTER
$9.27
You save $1.63
-20%
012
Honda
ROPE, RECOIL STARTER28462-ZE1-003
Required: 1
ROPE, RECOIL STARTER
$7.07
You save $1.77
-15%
013
Honda
SUPPORT, GRIP28463-883-000
Required: 1
SUPPORT, GRIP (NOT AVAILABLE)
$3.37
You save $0.59
-15%
015
Honda
COVER, STARTER REEL28474-YA0-N40
Required: 1
COVER, STARTER REEL
$9.81
You save $1.73
-15%
016
Honda
LABEL, OIL ALERT87531-883-890
Required: 1
LABEL, OIL ALERT
$2.36
You save $0.42
-20%
017
Honda
NUT, SELF-LOCK (8MM)90115-659-003
Required: 1
NUT, SELF-LOCK (8MM) (CLINCH)
In stock
Only 3 remaining
$0.75
You save $0.19
-15%
018
Honda
BOLT-WASHER (6X10)93401-06010-08
Required: 3
BOLT-WASHER (6X10)
$1.68
You save $0.30
-15%
019
Honda
NUT, FLANGE (5MM)94050-05000
Required: 1
NUT, FLANGE (5MM)
$1.36
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
