All diagrams for this model

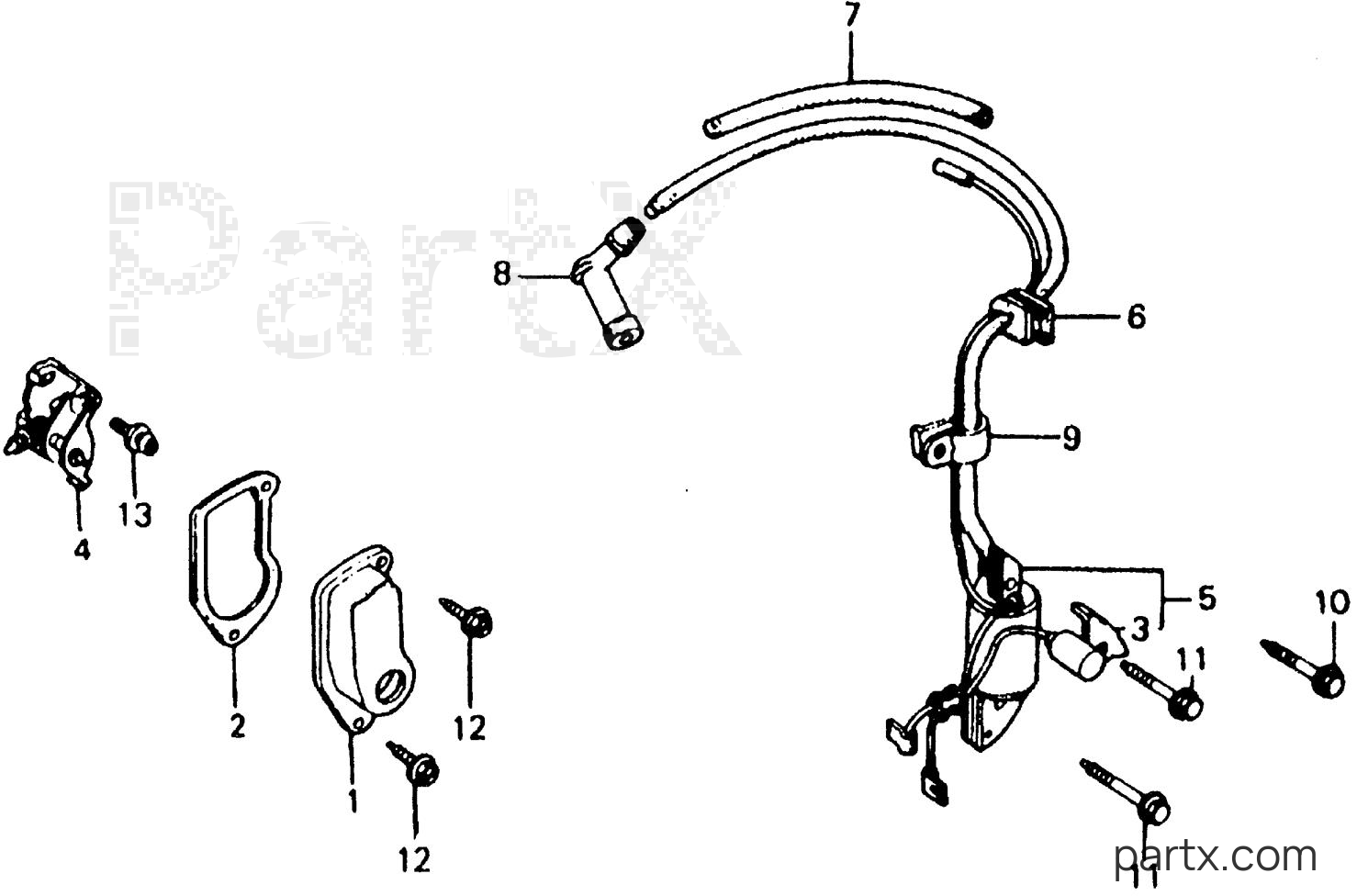

All Years Pumps WT - WT20 C WT20/30 POINTS - IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda WT20 C - WT20/30 POINTS - IGNITION COIL
Change View:
COVER, BREAKER (NOT AVAILABLE)
001
Honda
COVER, BREAKER (NOT AVAILABLE)30211-883-000
Required: 1
COVER, BREAKER (NOT AVAILABLE)
Price unavailable
GASKET, BREAKER COVER (NOT AVAILABLE)
002
Honda
GASKET, BREAKER COVER (NOT AVAILABLE)30215-883-000
Required: 1
GASKET, BREAKER COVER (NOT AVAILABLE)
Price unavailable
-15%
CONDENSER
003
Honda
CONDENSER30251-883-003
Required: 1
CONDENSER
Cross Ship
Leaves in 2-5 days
$21.48
$18.26
You save $3.22
More details
-15%
POINTS ASSY.
004
Honda
POINTS ASSY.30280-883-005
Required: 1
POINTS ASSY.
Cross Ship
Leaves in 2-5 days
$33.72
$28.66
You save $5.06
More details
-15%
COIL ASSY., IGNITION
005
Honda
COIL ASSY., IGNITION30560-883-015
Required: 1
COIL ASSY., IGNITION
Cross Ship
Leaves in 2-5 days
$123.83
$105.26
You save $18.57
More details
GROMMET, WIRE
006
Honda
GROMMET, WIRE30563-883-000
Required: 1
GROMMET, WIRE
Price unavailable
-15%
TUBE, IGN RUB
007
Honda
TUBE, IGN RUB30565-728-000
Required: 1
TUBE, IGNITION RUBBER (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$9.82
$8.35
You save $1.47
More details
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)
008
Honda
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)30700-865-003
Required: 1
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)
Price unavailable
-15%
BOLT (6X32) (CT200)
011
Honda
BOLT (6X32) (CT200)90017-883-000
Required: 2
BOLT, FLANGE (6X32) (CT200)
Cross Ship
Leaves in 2-5 days
$3.26
$2.77
You save $0.49
More details
-15%
BOLT (5X10) (CT200)
012
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 2
BOLT, FLANGE (5X10) (CT200)
Cross Ship
Leaves in 2-5 days
$3.02
$2.57
You save $0.45
More details
-15%
SCREW-WASHER (5X12)
013
Honda
SCREW-WASHER (5X12)90051-883-000
Required: 1
SCREW-WASHER (5X12)
Cross Ship
Leaves in 2-5 days
$2.04
$1.73
You save $0.31
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
