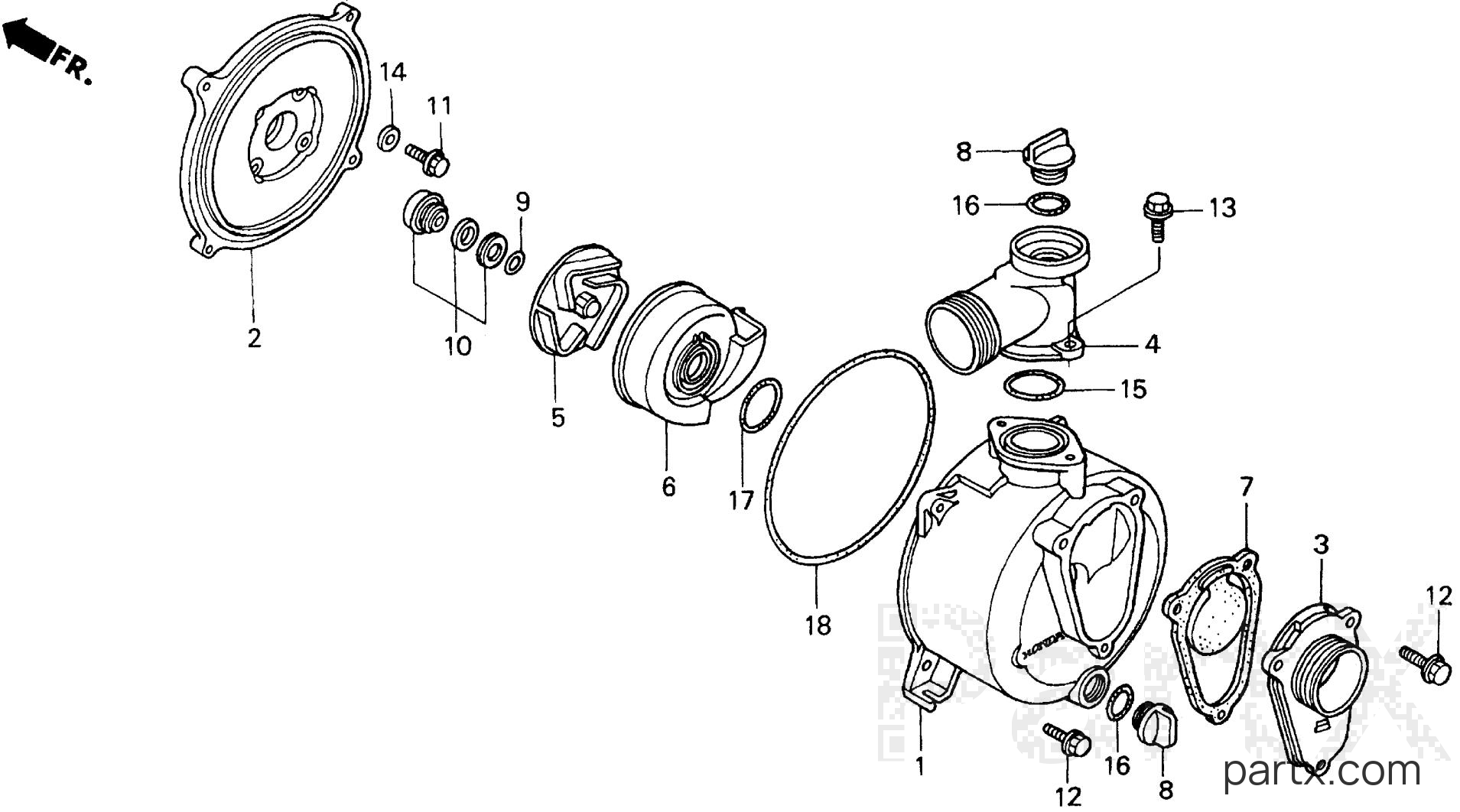

Honda WN20 AX1 - CASING (1)
Change View:
CASING (NOT AVAILABLE)
001
Honda
CASING (NOT AVAILABLE)78101-YF3-702
Required: 1
CASING (NOT AVAILABLE)
Price unavailable
COVER, CASING (NOT AVAILABLE)
002
Honda
COVER, CASING (NOT AVAILABLE)78102-YF3-702
Required: 1
COVER, CASING (NOT AVAILABLE)
Price unavailable
PIPE, INLET (NOT AVAILABLE)
003
Honda
PIPE, INLET (NOT AVAILABLE)78103-YF3-612
Required: 1
PIPE, INLET (NOT AVAILABLE)
Price unavailable
PIPE, OUTLET (NOT AVAILABLE)
004
Honda
PIPE, OUTLET (NOT AVAILABLE)78104-YF3-612
Required: 1
PIPE, OUTLET (NOT AVAILABLE)
Price unavailable
IMPELLER (NOT AVAILABLE)
005
Honda
IMPELLER (NOT AVAILABLE)78106-YF3-702
Required: 1
IMPELLER (NOT AVAILABLE)
Price unavailable
-15%
CASE, VOLUTE
006
Honda
CASE, VOLUTE78107-YF3-702
Required: 1
CASE, VOLUTE (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$79.92
$67.93
You save $11.99
More details
VALVE, IN. (NOT AVAILABLE)
007
Honda
VALVE, IN. (NOT AVAILABLE)78110-YF3-702
Required: 1
VALVE, IN. (NOT AVAILABLE)
Price unavailable
-15%
CAP, FILLER
008
Honda
CAP, FILLER78117-YB7-020
Required: 2
CAP, FILLER
Cross Ship
Leaves in 2-5 days
$13.46
$11.44
You save $2.02
More details
-15%
CAP, FILLER
008
Honda
CAP, FILLER78117-YF3-702
Required: 2
CAP, FILLER
Cross Ship
Leaves in 2-5 days
$13.46
$11.44
You save $2.02
More details
SHIM A, ADJUSTER (0.3) (STD) (NOT AVAILABLE)
009
Honda
SHIM A, ADJUSTER (0.3) (STD) (NOT AVAILABLE)78122-YF3-702
SHIM A, ADJUSTER (0.3) (STD) (NOT AVAILABLE)
Price unavailable
SHIM B, ADJUSTER (OVER SIZE) (0.5) (NOT AVAILABLE)
009
Honda
SHIM B, ADJUSTER (OVER SIZE) (0.5) (NOT AVAILABLE)78123-YF3-702
SHIM B, ADJUSTER (OVER SIZE) (0.5) (NOT AVAILABLE)
Price unavailable
SEAL ASSY., MECHANICAL (NOT AVAILABLE)
010
Honda
SEAL ASSY., MECHANICAL (NOT AVAILABLE)78130-YF3-702
Required: 1
SEAL ASSY., MECHANICAL (NOT AVAILABLE)
Price unavailable
BOLT, FLANGE (8X28) (NOT AVAILABLE)
011
Honda
BOLT, FLANGE (8X28) (NOT AVAILABLE)90101-YF3-702
Required: 4
BOLT, FLANGE (8X28) (NOT AVAILABLE)
Price unavailable
-15%
BOLT, FLANGE (8X25)
012
Honda
BOLT, FLANGE (8X25)90102-YF3-702
Required: 7
BOLT, FLANGE (8X25)
Cross Ship
Leaves in 2-5 days
$2.38
$2.02
You save $0.36
More details
BOLT, FLANGE (8X20) (NOT AVAILABLE)
013
Honda
BOLT, FLANGE (8X20) (NOT AVAILABLE)90103-YF3-702
Required: 2
BOLT, FLANGE (8X20) (NOT AVAILABLE)
Price unavailable
-15%
WASHER (8MM)
014
Honda
WASHER (8MM)90474-YF3-702
Required: 4
WASHER (8MM)
Cross Ship
Leaves in 2-5 days
$2.36
$2.01
You save $0.35
More details
O-RING (54X3.5) (NOT AVAILABLE)
015
Honda
O-RING (54X3.5) (NOT AVAILABLE)91351-YF3-702
Required: 1
O-RING (54X3.5) (NOT AVAILABLE)
Price unavailable
O-RING (24X3.5) (NOT AVAILABLE)
016
Honda
O-RING (24X3.5) (NOT AVAILABLE)91352-YF3-702
Required: 2
O-RING (24X3.5) (NOT AVAILABLE)
Price unavailable
-15%
O-RING (57X5.7)
017
Honda
O-RING (57X5.7)91353-YF3-702
Required: 1
O-RING (57X5.7)
Cross Ship
Leaves in 2-5 days
$6.08
$5.17
You save $0.91
More details
-15%
O-RING (196X3.5)
018
Honda
O-RING (196X3.5)91354-YF3-702
Required: 1
O-RING (196X3.5)
Cross Ship
Leaves in 2-5 days
$14.56
$12.38
You save $2.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
