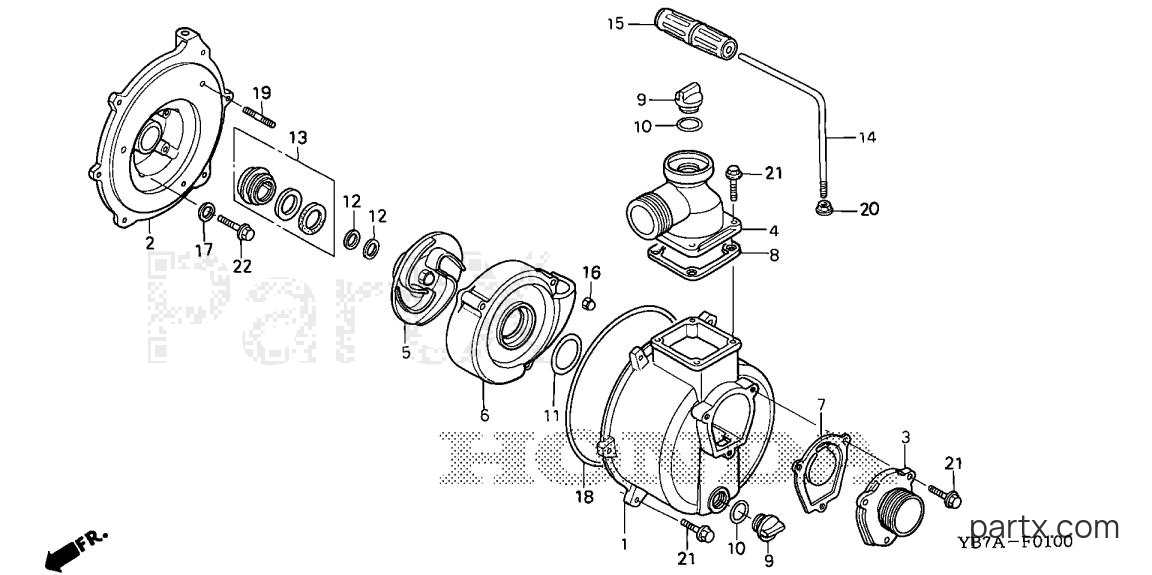

All Years Pumps WH - WH15XK2 AC1 CASING diagram
-15%
$370.11
You save $65.31
-15%
002
Honda
COVER, CASING78102-YB7-000
Required: 1
COVER, CASING
$201.98
You save $35.64
-15%
003
Honda
PIPE, INLET78103-YB7-630
Required: 1
PIPE, INLET
$54.93
You save $9.69
-15%
004
Honda
PIPE, OUTLET78104-YB7-630
Required: 1
PIPE, OUTLET
$110.50
You save $19.50
-50%
In stock
Only 1 remaining
$8.99
You save $8.99
-15%
006
Honda
CASE, VOLUTE78107-YH6-000
Required: 1
CASE, VOLUTE
$33.01
You save $5.83
-20%
$25.62
You save $6.40
-20%
008
Honda
GASKET, OUTLET78114-YB3-000
Required: 1
GASKET, OUTLET
$10.66
You save $2.66
-15%
009
Honda
CAP, FILLER78117-YB7-020
Required: 2
CAP, FILLER (ENGINE NO.)
$11.44
You save $2.02
-15%
010
Honda
SEAL RING,B78118-YB0-004
Required: 2
SEAL RING,B
$8.19
You save $1.45
-15%
011
Honda
O-RING (49X5.7)78118-YB3-004
Required: 1
O-RING (49X5.7) (NOK)
$8.09
You save $1.43
-15%
012
Honda
SHIM, ADJUSTER78122-YB3-000
Required: 3
SHIM, ADJUSTER
$4.01
You save $0.71
-15%
013
Honda
SEAL, MECHANICAL78130-YB7-003
Required: 1
SEAL, MECHANICAL
$99.01
You save $17.47
-15%
$25.28
You save $4.46
-15%
015
Honda
GRIP, HANDLE78207-YB3-611
Required: 1
GRIP, HANDLE
$12.48
You save $2.20
-20%
016
Honda
NUT, CAP (6MM)90281-YB4-000
Required: 3
NUT, CAP (6MM)
In stock
Only 3 remaining
$1.81
You save $0.45
-20%
017
Honda
WASHER (8MM)90474-333-000
Required: 4
WASHER, SEALING (8MM)
$3.87
You save $0.97
-20%
018
Honda
O-RING (217.5X3.5)91351-YB3-003
Required: 1
O-RING (217.5X3.5) (ARAI)
$14.10
You save $3.52
-15%
019
Honda
BOLT, STUD (6X35)92900-06035-0B
Required: 3
BOLT, STUD (6X35)
$2.01
You save $0.35
-15%
020
Honda
NUT, HEX. (14MM)94001-14000-0S
Required: 1
NUT, HEX. (14MM)
$2.16
You save $0.38
-15%
021
Honda
BOLT, FLANGE (8X25)95701-08025-00
Required: 13
BOLT, FLANGE (8X25)
$1.85
You save $0.33
-15%
022
Honda
BOLT, FLANGE (8X28)95701-08028-00
Required: 4
BOLT, FLANGE (8X28)
$1.43
You save $0.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
