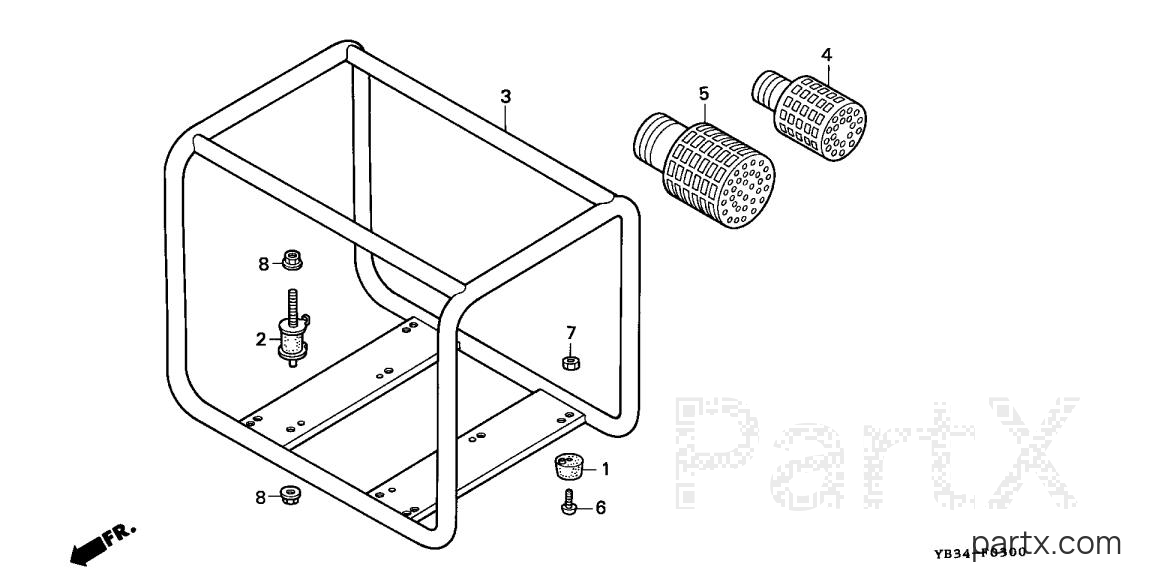

All Years Pumps WB - WB30T DRA FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

001

Honda

RUBBER (LOWER)60407-812-001

Required: 4

RUBBER (LOWER)

~~$19.66~~

$16.71

You save $2.95

More details

-15%

002

Honda

RUB, ENGINE MOUNTING68311-YB3-K80

Required: 4

RUBBER, ENGINE MOUNTING

~~$7.26~~

$6.17

You save $1.09

More details

003

Honda

FRAME (NOT AVAILABLE)78206-YB3-K80

Required: 1

FRAME (NOT AVAILABLE)

Price unavailable

-15%

004

Honda

STRAINER78325-YB3-010

Required: 1

STRAINER

~~$47.66~~

$40.51

You save $7.15

More details

-15%

006

Honda

SCREW, PAN (6X10)93500-06010-0A

Required: 4

SCREW, PAN (6X10)

~~$1.24~~

$1.05

You save $0.19

More details

007

Honda

NUT, HEX. (6MM)94001-06000-0S

Required: 4

NUT, HEX. (6MM)

Price unavailable

-15%

007

Honda

NUT, HEX. (6MM)94001-06200-0S

Required: 4

NUT, HEX. (6MM)

~~$1.60~~

$1.36

You save $0.24

More details

-50%

008

Honda

NUT, FLANGE (8MM)94050-08080

Required: 8

NUT, FLANGE (8MM)

In stock

5+ in stock

~~$1.18~~

$0.59

You save $0.59

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
