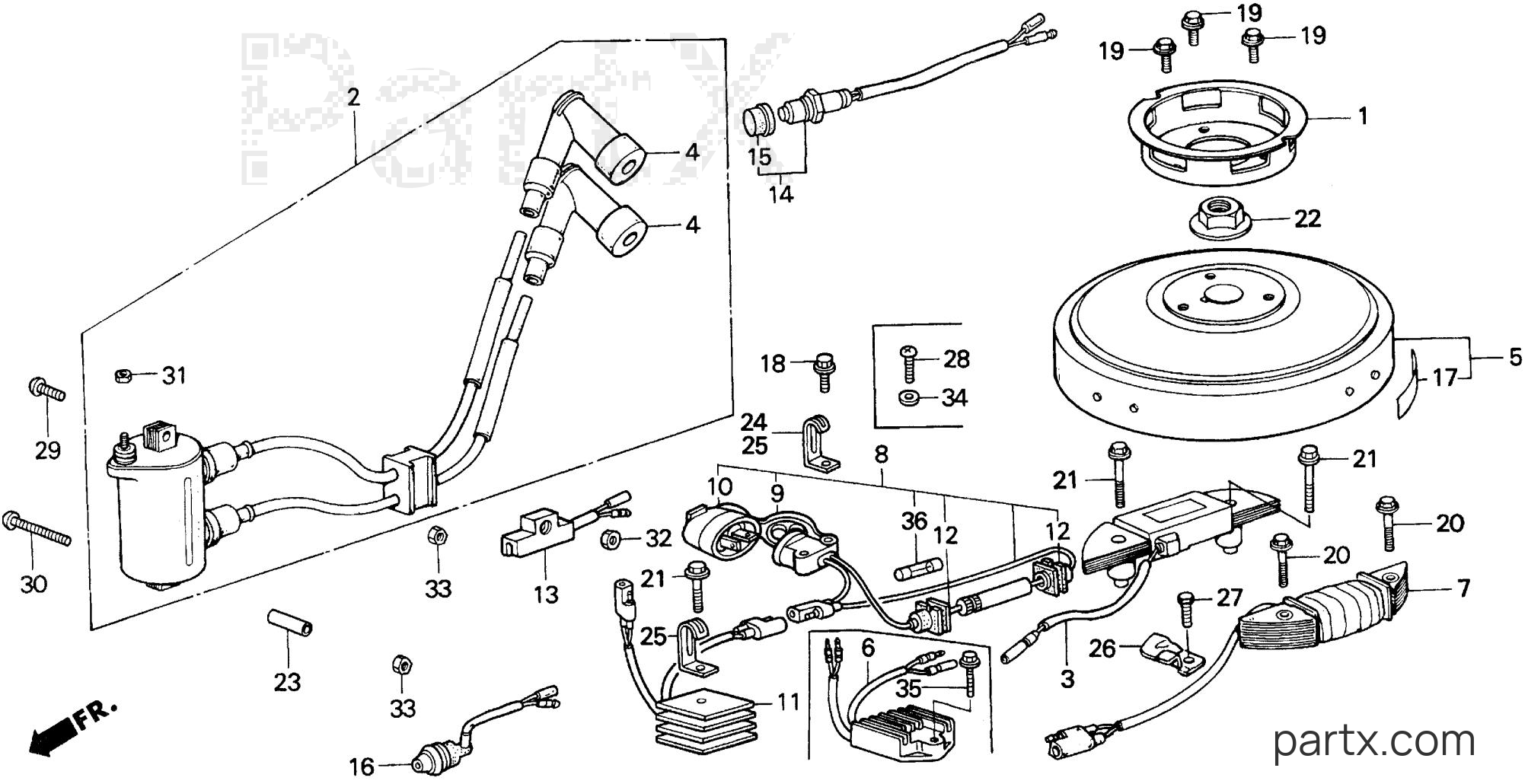

1997 Outboard BF - BF8AM XA FLYWHEEL diagram
001
Honda
PULLEY, STARTER (NOT AVAILABLE)28571-881-000
Required: 1
PULLEY, STARTER (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
COIL ASSY.30500-ZV8-G01
Required: 1
COIL ASSY., C.D.I. IGNITION
$99.56
You save $17.57
-15%
003
Honda
COIL ASSY., EXCITER30540-881-732
Required: 1
COIL ASSY., EXCITER
No longer availableSearch Nationwide Inventory
$77.89
You save $13.75
-15%
004
Honda
CAP ASSY.30700-881-010
Required: 2
CAP ASSY., NOISE SUPPRESSOR
$12.24
You save $2.16
005
Honda
FLYWHEEL *R8*(BRIGHT RED) (NA USE ALT: 31100-881-010ZC)31100-881-000ZA
Required: 1
FLYWHEEL *R8*(BRIGHT RED) (NA USE ALT: 31100-881-010ZC)
Price unavailable
007
Honda
COIL ASSY., CHARGE (NOT AVAILABLE)31630-881-004
Required: 1
COIL ASSY., CHARGE (NOT AVAILABLE)
Price unavailable
008
Honda
RECEPTACLE ASSY., CHARGE (NOT AVAILABLE)31650-881-014
Required: 1
RECEPTACLE ASSY., CHARGE (NOT AVAILABLE)
Price unavailable
009
Honda
RECEPTACLE (NOT AVAILABLE)31651-881-014
Required: 1
RECEPTACLE (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
PLUG, RECEPTACLE31652-881-024
Required: 1
PLUG, RECEPTACLE
$19.04
You save $3.36
011
Honda
RECTIFIER ASSY. (NOT AVAILABLE)31700-881-000
Required: 1
RECTIFIER ASSY. (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
SWITCH, NEUTRAL35100-881-003
Required: 1
SWITCH ASSY., NEUTRAL (NOT AVAILABLE)
$82.55
You save $14.57
014
Honda
SWITCH ASSY., ENGINE STOP36100-921-043
Required: 1
SWITCH ASSY., ENGINE STOP
Price unavailable
-15%
015
Honda
CAP, BUTTON36101-881-013
Required: 1
CAP, BUTTON (N/A: SEE ASSEMBLY)
$2.11
You save $0.37
-15%
016
Honda
LAMP, INDICATOR37210-ZV4-003
Required: 1
LAMP ASSY., INDICATOR
$42.50
You save $7.50
017
Honda
MARK, FLYWHEEL CAUTION (NOT AVAILABLE)87541-896-000
Required: 1
MARK, FLYWHEEL CAUTION (NOT AVAILABLE)
Price unavailable
-15%
019
Honda
BOLT, FLANGE (6X12)90016-920-000
Required: 3
BOLT, FLANGE (6X12)
$2.02
You save $0.36
020
Honda
BOLT, FLANGE (6X28) (NOT AVAILABLE)90123-881-000
Required: 2
BOLT, FLANGE (6X28) (NOT AVAILABLE)
Price unavailable
-15%
021
Honda
BOLT, FLANGE (6X35)90124-881-000
Required: 3
BOLT, FLANGE (6X35)
$2.16
You save $0.38
-15%
022
Honda
NUT, SPECIAL (14MM)90201-881-000
Required: 1
NUT, SPECIAL (14MM)
$5.85
You save $1.03
023
Honda
COLLAR, DISTANCE90742-881-000
Required: 1
COLLAR, DISTANCE
Price unavailable
-15%
025
Honda
CLIP B, CORD91403-881-000
Required: 2
CLIP B, CORD
$5.83
You save $1.03
-15%
$9.35
You save $1.65
-15%
027
Honda
BOLT, HEX. (6X12)92101-06012-4J
Required: 1
BOLT, HEX. (6X12)
$2.13
You save $0.38
-15%
028
Honda
SCREW, PAN (5X22)93500-05022-0B
Required: 2
SCREW, PAN (5X22)
$1.36
You save $0.24
-15%
029
Honda
SCREW, PAN (6X25)93500-06025-0A
Required: 1
SCREW, PAN (6X25)
$1.24
You save $0.22
-15%
030
Honda
SCREW, PAN (6X50)93500-06050-0B
Required: 1
SCREW, PAN (6X50)
$0.95
You save $0.17
-15%
031
Honda
NUT, HEX. (5MM)94001-05330-0S
Required: 1
NUT, HEX. (5MM)
$0.95
You save $0.17
-15%
032
Honda
NUT, HEX. (5MM)94001-05490-0S
Required: 1
NUT, HEX. (5MM)
$1.04
You save $0.18
-15%
033
Honda
NUT, HEX. (6MM)94001-06020-0S
Required: 2
NUT, HEX. (6MM)
$1.43
You save $0.25
-15%
034
Honda
WASHER, PLAIN (5MM)94101-05200
Required: 2
WASHER, PLAIN (5MM)
$1.27
You save $0.23
-15%
036
Honda
FUSE A (5A)98200-10500
Required: 1
FUSE A (5A)
$1.04
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
