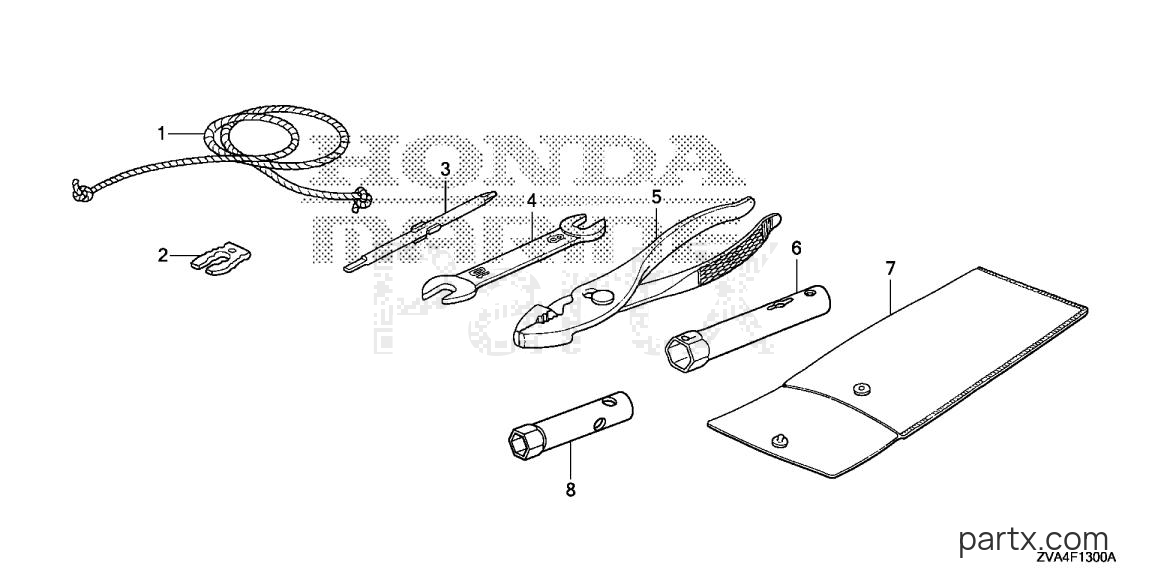

Honda BF2.3DH SCHA - TOOL
Change View:
-15%
ROPE, STARTER
001
Honda
ROPE, STARTER28462-ZVA-A00
Required: 1
ROPE, STARTER
Cross Ship
Leaves in 2-5 days
$10.04
$8.53
You save $1.51
More details
-15%
CLIP, EMERGENCY LOCK
002
Honda
CLIP, EMERGENCY LOCK36187-ZV4-652
Required: 1
CLIP, EMERGENCY LOCK
Cross Ship
Leaves in 2-5 days
$5.56
$4.73
You save $0.83
More details
SCREWDRIVER (NO.2 +/-) (NOT AVAILABLE)
003
Honda
SCREWDRIVER (NO.2 +/-) (NOT AVAILABLE)89102-KSH-900
Required: 1
SCREWDRIVER (NO.2 +/-) (NOT AVAILABLE)
Price unavailable
-15%
SPANNER (8X10)
004
Honda
SPANNER (8X10)89203-ZVA-000
Required: 1
SPANNER (8X10)
Cross Ship
Leaves in 2-5 days
$5.86
$4.98
You save $0.88
More details
-15%
PLIERS
005
Honda
PLIERS89213-KWK-900
Required: 1
PLIERS
Cross Ship
Leaves in 2-5 days
$21.20
$18.02
You save $3.18
More details
-15%
WRENCH, BOX (P16)
006
Honda
WRENCH, BOX (P16)89216-ZVA-000
Required: 1
WRENCH, BOX (P16)
Cross Ship
Leaves in 2-5 days
$9.38
$7.97
You save $1.41
More details
-15%
BAG, TOOL (160MM)
007
Honda
BAG, TOOL (160MM)99008-01600
Required: 1
BAG, TOOL (160MM)
Cross Ship
Leaves in 2-5 days
$2.92
$2.48
You save $0.44
More details
-15%
WRENCH, BOX (10MM)
008
Honda
WRENCH, BOX (10MM)89217-ZVA-000
Required: 1
WRENCH, BOX (10MM)
Cross Ship
Leaves in 2-5 days
$10.80
$9.18
You save $1.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
