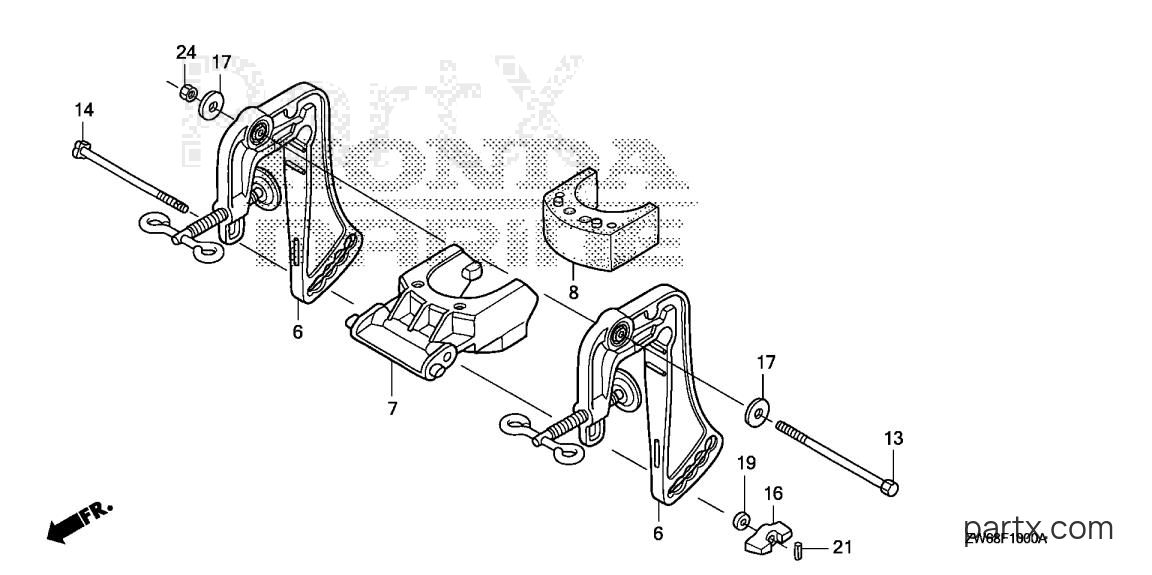

2007 And Later Outboard BF - BF2DK0 LCHA SWIVEL CASE diagram
001
Honda
CASE, SWIVEL *NH246*(LOOSY GRAY) (NOT AVAILABLE)50201-ZW6-000ZA
Required: 1
CASE, SWIVEL *NH246*(LOOSY GRAY) (NOT AVAILABLE)
Price unavailable
-15%
001
Honda
CASE, SWIVEL *NH246*50201-ZW6-C00ZA
Required: 1
CASE, SWIVEL *NH246*(LOOSY GRAY)
$55.10
You save $9.72
-15%
002
Honda
CAP *NH246*50203-ZW6-000ZA
Required: 1
CAP, SWIVEL CASE *NH246*(LOOSY GRAY)
$24.46
You save $4.32
-15%
002
Honda
CAP *NH246*50203-ZW6-010ZA
Required: 1
CAP, SWIVEL CASE *NH246*(LOOSY GRAY)
$20.57
You save $3.63
-15%
003
Honda
COLLAR, SWIVEL CASE50204-ZVA-000
Required: 1
COLLAR, SWIVEL CASE
$3.43
You save $0.61
-15%
004
Honda
BLOCK, FRICTION50212-ZVA-000
Required: 1
BLOCK, FRICTION
$4.30
You save $0.76
-15%
005
Honda
SPRING50233-ZVA-000
Required: 1
SPRING, FRICTION ADJUSTING
$2.65
You save $0.47
-15%
006
Honda
BRKT, STERN *NH246*50300-ZVA-000ZA
Required: 2
BRACKET, STERN *NH246*(LOOSY GRAY)
$214.05
You save $37.77
-15%
007
Honda
RECEIVER, THRUST50302-ZVA-000
Required: 1
RECEIVER, THRUST
$18.87
You save $3.33
-15%
008
Honda
RUBBER, THRUST50303-ZVA-000
Required: 1
RUBBER, THRUST
$15.67
You save $2.77
-15%
009
Honda
COLLAR, DISTANCE50337-ZV0-000
Required: 1
COLLAR, DISTANCE
$13.44
You save $2.37
-15%
009
Honda
COLLAR, DISTANCE50337-ZVA-000
Required: 1
COLLAR, DISTANCE
$13.86
You save $2.45
-15%
010
Honda
ARM, TILT LOCK50511-ZVA-000
Required: 1
ARM, TILT LOCK
$12.70
You save $2.24
-15%
011
Honda
SPRING, TILT LOCK50516-ZVA-000
Required: 1
SPRING, TILT LOCK
$1.99
You save $0.35
-15%
012
Honda
BOLT, SWIVEL CASE90106-ZVA-000
Required: 1
BOLT, SWIVEL CASE
$7.97
You save $1.41
-15%
013
Honda
BOLT, HEX. (8X110)90107-ZV0-000
Required: 1
BOLT, HEX. (8X110)
$5.88
You save $1.04
-15%
014
Honda
BOLT (6X110)90108-ZV0-000
Required: 1
BOLT, DIAMOND (6X110)
$5.90
You save $1.04
-15%
015
Honda
BOLT, FLANGE (8X35)90114-HW1-671
Required: 2
BOLT, FLANGE (8X35)
$4.37
You save $0.77
-15%
015
Honda
BOLT, HEX. (8X40)90116-881-000
Required: 2
BOLT, HEX. (8X40)
$4.62
You save $0.82
016
Honda
WINGNUT90301-ZV0-000
Required: 1
WINGNUT
Price unavailable
-15%
$7.26
You save $1.28
-15%
017
Honda
WASHER, PLAIN (8MM)90501-ZVA-000
Required: 2
WASHER, PLAIN (8MM)
$3.74
You save $0.66
-15%
018
Honda
WASHER, PLAIN (8MM)90507-ZV4-000
Required: 2
WASHER, PLAIN (8MM)
$2.50
You save $0.44
-15%
019
Honda
WASHER, PLAIN (6MM)90512-ZV0-000
Required: 1
WASHER, PLAIN (6MM)
$3.47
You save $0.61
-15%
020
Honda
WASHER, PLAIN (8MM)90518-921-000
Required: 1
WASHER, PLAIN (8MM)
$1.36
You save $0.24
-15%
021
Honda
PIN, SPRING (2.5X8)90751-ZW6-000
Required: 1
PIN, SPRING (2.5X8)
$1.50
You save $0.26
-15%
022
Honda
PIN, SPRING (2.5X20)90752-ZW6-000
Required: 1
PIN, SPRING (2.5X20)
$2.60
You save $0.46
-50%
023
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 1
NIPPLE, GREASE
In stock
Only 3 remaining
$1.26
You save $1.26
-15%
024
Honda
NUT, HEX. (8MM)94001-08490-0S
Required: 1
NUT, HEX. (8MM)
$2.74
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
