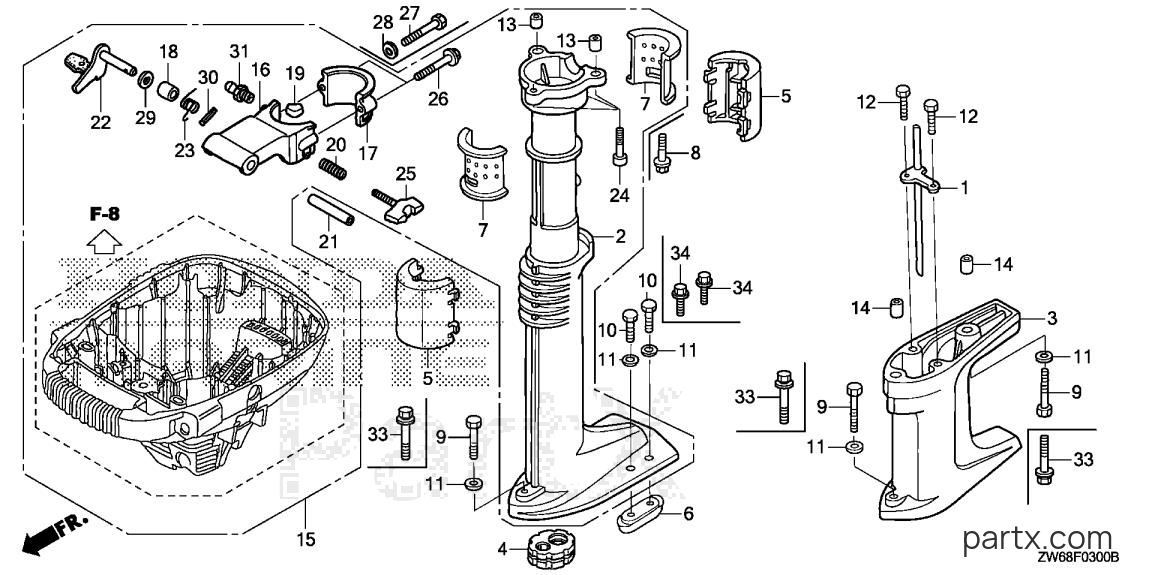

2007 And Later Outboard BF - BF2DK0 LCHA EXTENSION CASE diagram
-15%
001
Honda
TUBE, WATER19250-ZVA-610
Required: 1
TUBE, WATER
$19.31
You save $3.41
002
Honda
CASE, EXTENSION *NH246*(LOOSY GRAY) (NA USE ALT: 04402-ZW6-000ZA)40201-ZW6-010ZA
Required: 1
CASE, EXTENSION *NH246*(LOOSY GRAY) (NA USE ALT: 04402-ZW6-000ZA)
Price unavailable
-15%
002
Honda
CASE *NH246*40201-ZW6-C00ZA
Required: 1
CASE, EXTENSION *NH246*(LOOSY GRAY)
$291.57
You save $51.45
-15%
003
Honda
SEPARATOR *NH246*40202-ZW6-C00ZA
Required: 1
SEPARATOR, EXTENSION *NH246*(LOOSY GRAY)
$205.70
You save $36.30
-15%
004
Honda
BUSH, VERTICAL SHAFT40210-ZW6-611
Required: 1
BUSH, VERTICAL SHAFT (L)
$36.21
You save $6.39
-15%
005
Honda
PROTECTOR, EXTENSION40218-ZVA-000
Required: 2
PROTECTOR, EXTENSION
$7.50
You save $1.32
-15%
007
Honda
LINER, SWIVEL CASE50211-ZV0-000
Required: 2
LINER, SWIVEL CASE (NOT AVAILABLE)
$6.71
You save $1.19
008
Honda
BOLT, FLANGE (6X25)90016-ZW9-000
Required: 3
BOLT, FLANGE (6X25)
Price unavailable
-15%
008
Honda
BOLT-WASHER (6X30)90104-ZVA-000
Required: 3
BOLT-WASHER, SOCKET (6X30)
$6.10
You save $1.08
-15%
009
Honda
BOLT, HEX. (6X35)90113-ZV0-000
Required: 3
BOLT, HEX. (6X35)
$4.30
You save $0.76
-15%
011
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 5
WASHER, PLAIN (6MM)
$2.77
You save $0.49
-15%
012
Honda
BOLT, HEX. (5X16)92101-05016-4J
Required: 2
BOLT, HEX. (5X16)
$1.38
You save $0.24
-15%
013
Honda
PIN, DOWEL (8X10)94301-08100
Required: 2
PIN, DOWEL (8X10)
$2.33
You save $0.41
-20%
014
Honda
PIN, DOWEL (8X14)94301-08140
Required: 2
PIN, DOWEL (8X14)
$2.19
You save $0.55
-15%
015
Honda
CASE KIT *NH246*04402-ZW6-010ZA
Required: 1
CASE KIT, EXTENSION *NH246*(LOOSY GRAY) (NOT AVAILABLE)
$254.03
You save $44.83
016
Honda
CASE, SWIVEL *NH246*(LOOSY GRAY) (NOT AVAILABLE)50201-ZW6-000ZA
Required: 1
CASE, SWIVEL *NH246*(LOOSY GRAY) (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
CAP *NH246*50203-ZW6-000ZA
Required: 1
CAP, SWIVEL CASE *NH246*(LOOSY GRAY)
$24.46
You save $4.32
-15%
017
Honda
CAP *NH246*50203-ZW6-010ZA
Required: 1
CAP, SWIVEL CASE *NH246*(LOOSY GRAY)
$20.57
You save $3.63
-15%
018
Honda
COLLAR, SWIVEL CASE50204-ZVA-000
Required: 1
COLLAR, SWIVEL CASE
$3.43
You save $0.61
-15%
019
Honda
BLOCK, FRICTION50212-ZW6-305
Required: 1
BLOCK, FRICTION
$7.36
You save $1.30
-15%
019
Honda
BLOCK, FRICTION50212-ZVA-000
Required: 1
BLOCK, FRICTION
$4.30
You save $0.76
-15%
020
Honda
SPRING50233-ZVA-000
Required: 1
SPRING, FRICTION ADJUSTING
$2.65
You save $0.47
-15%
021
Honda
COLLAR, DISTANCE50337-ZV0-000
Required: 1
COLLAR, DISTANCE
$13.44
You save $2.37
-15%
021
Honda
COLLAR, DISTANCE50337-ZVA-000
Required: 1
COLLAR, DISTANCE
$13.86
You save $2.45
-15%
022
Honda
ARM, TILT LOCK50511-ZVA-000
Required: 1
ARM, TILT LOCK
$12.70
You save $2.24
-15%
023
Honda
SPRING, TILT LOCK50516-ZVA-000
Required: 1
SPRING, TILT LOCK
$1.99
You save $0.35
-15%
024
Honda
BOLT-WASHER (6X30)90104-ZVA-000
Required: 3
BOLT-WASHER, SOCKET (6X30)
$6.10
You save $1.08
-15%
025
Honda
BOLT, SWIVEL CASE90106-ZVA-000
Required: 1
BOLT, SWIVEL CASE
$7.97
You save $1.41
-15%
026
Honda
BOLT, FLANGE (8X35)90114-HW1-671
Required: 2
BOLT, FLANGE (8X35)
$4.37
You save $0.77
-15%
027
Honda
BOLT, HEX. (8X40)90116-881-000
Required: 2
BOLT, HEX. (8X40)
$4.62
You save $0.82
-15%
028
Honda
WASHER, PLAIN (8MM)90507-ZV4-000
Required: 2
WASHER, PLAIN (8MM)
$2.50
You save $0.44
-15%
029
Honda
WASHER, PLAIN (8MM)90518-921-000
Required: 1
WASHER, PLAIN (8MM)
$1.36
You save $0.24
-15%
030
Honda
PIN, SPRING (2.5X20)90752-ZW6-000
Required: 1
PIN, SPRING (2.5X20)
$2.60
You save $0.46
-50%
031
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 1
NIPPLE, GREASE
In stock
Only 3 remaining
$1.26
You save $1.26
-15%
033
Honda
BOLT-WASHER (6X35)90109-ZVA-000
Required: 3
BOLT-WASHER (6X35)
$3.32
You save $0.58
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
