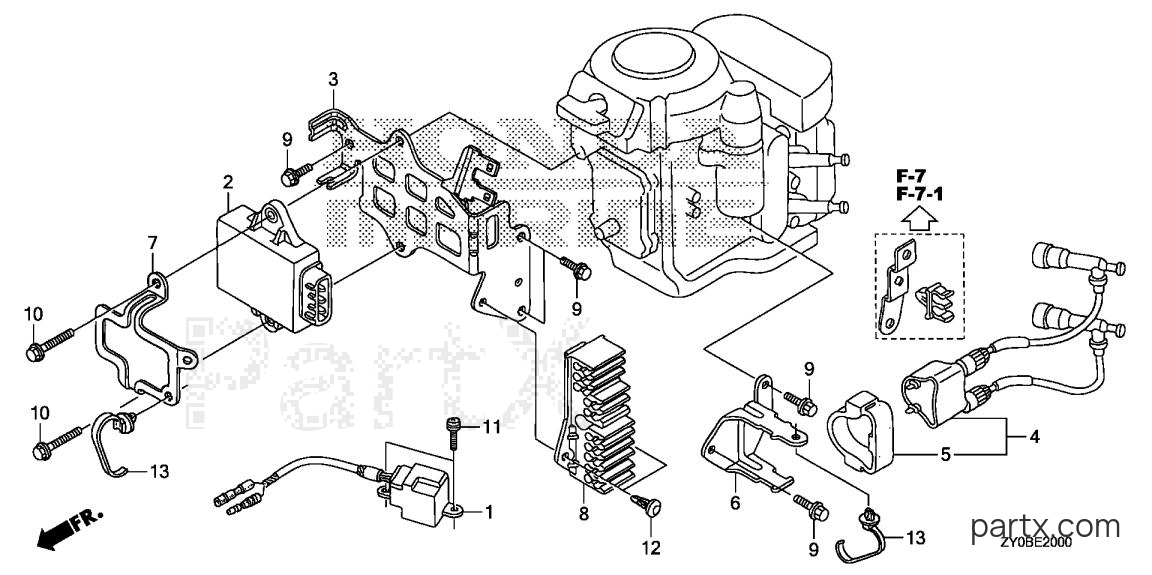

All Years Outboard BFP - BFP20DK0 LRTA IGNITION COIL - C.D.I. UNIT diagram
-15%
001
Honda
COIL ASSY., PULSER30310-ZY1-003
Required: 1
COIL ASSY., PULSER
$55.01
You save $9.71
-15%
002
Honda
MODULE, IGN CONT30400-ZY0-003
Required: 1
MODULE, IGNITION CONTROL (CDI)
$191.59
You save $33.81
-15%
003
Honda
PLATE, C.D.I.30417-ZY1-900
Required: 1
PLATE, C.D.I. (REMOTE CONTROL)
$63.60
You save $11.22
-15%
003
Honda
PLATE, C.D.I.30418-ZY1-010
Required: 1
PLATE, C.D.I.
$19.19
You save $3.39
-15%
003
Honda
PLATE, C.D.I.30417-ZY1-901
Required: 1
PLATE, C.D.I. (REMOTE CONTROL)
$60.21
You save $10.63
-15%
004
Honda
COIL ASSY., IGNITION30500-ZY1-013
Required: 1
COIL ASSY., IGNITION
$77.55
You save $13.69
-15%
005
Honda
SUSPENSION30506-ZW9-003
Required: 1
SUSPENSION, IGNITION COIL
$6.61
You save $1.17
-15%
006
Honda
BRKT, IGNITION COIL30515-ZW9-652
Required: 1
BRACKET, IGNITION COIL
$10.32
You save $1.82
-15%
007
Honda
BRACKET, C.D.I.32108-ZY1-010
Required: 1
BRACKET, C.D.I.
$15.59
You save $2.75
-15%
008
Honda
BRACKET, CONNECTOR32109-ZY1-000
Required: 1
BRACKET, CONNECTOR
$15.96
You save $2.82
-15%
009
Honda
BOLT (6X14) (CT200)90011-ZW9-000
Required: 5
BOLT, FLANGE (6X14) (CT200)
$1.94
You save $0.34
010
Honda
BOLT, FLANGE (6X25)90016-ZW9-000
Required: 2
BOLT, FLANGE (6X25)
Price unavailable
-15%
011
Honda
SCREW-WASHER (5X16)90018-ZW9-000
Required: 2
SCREW-WASHER (5X16)
$1.46
You save $0.26
-15%
012
Honda
CLIP, ANCHOR91501-SM4-003
Required: 2
CLIP, ANCHOR
$4.66
You save $0.82
-15%
012
Honda
CLIP, ANCHOR91501-ZY1-003
Required: 2
CLIP, ANCHOR
$2.28
You save $0.40
-50%
013
Honda
CLIP (151.5MM)91540-S30-003
Required: 2
CLIP, HARNESS BAND (151.5MM) (NATURAL)
In stock
Only 3 remaining
$2.09
You save $2.09
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
