2007 And Later Outboard BF - BF2.3DK2 SCHA TOOL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

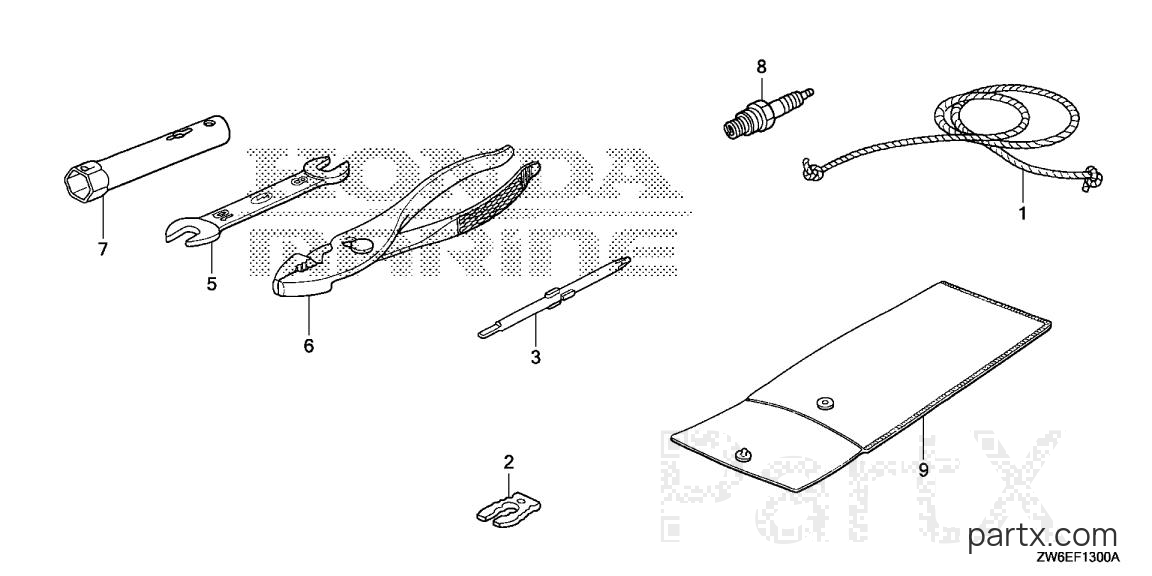

Honda BF2.3DK2 SCHA - TOOL
Change View:
ROPE, STARTER (N/A: USE ALTERNATE P/N 08540-ZG921-11)
001
Honda
ROPE, STARTER (N/A: USE ALTERNATE P/N 08540-ZG921-11)28462-ZV0-000
Required: 1
ROPE, STARTER (N/A: USE ALTERNATE P/N 08540-ZG921-11)
Price unavailable
-15%
CLIP, EMERGENCY LOCK
002
Honda
CLIP, EMERGENCY LOCK36187-ZV4-652
Required: 1
CLIP, EMERGENCY LOCK
Cross Ship
Leaves in 2-5 days
$5.56
$4.73
You save $0.83
More details
-15%
DRIVER
003
Honda
DRIVER83513-044-000
Required: 1
DRIVER
Cross Ship
Leaves in 2-5 days
$5.10
$4.33
You save $0.77
More details
TOOL KIT (NOT AVAILABLE)
004
Honda
TOOL KIT (NOT AVAILABLE)89000-ZW6-010
Required: 1
TOOL KIT (NOT AVAILABLE)
Price unavailable
-15%
SPANNER (8X10)
005
Honda
SPANNER (8X10)89203-VF9-003
Required: 1
SPANNER (8X10)
Cross Ship
Leaves in 2-5 days
$7.10
$6.03
You save $1.07
More details
-15%
PLIERS (135)
006
Honda
PLIERS (135)89210-GBJ-J00
Required: 1
PLIERS (135) (RIKEN)
Cross Ship
Leaves in 2-5 days
$11.44
$9.72
You save $1.72
More details
-15%
WRENCH, SPARK PLUG
007
Honda
WRENCH, SPARK PLUG89216-130-690
Required: 1
WRENCH, SPARK PLUG
Cross Ship
Leaves in 2-5 days
$9.60
$8.16
You save $1.44
More details
-15%
S/PLG (1UF14-UB)
008
Honda
S/PLG (1UF14-UB)98056-5475U
Required: 1
SPARK PLUG (1UF14-UB)
Cross Ship
Leaves in 2-5 days
$31.52
$26.79
You save $4.73
More details
-15%
BAG, TOOL (160MM)
009
Honda
BAG, TOOL (160MM)99008-01600
Required: 1
BAG, TOOL (160MM)
Cross Ship
Leaves in 2-5 days
$2.92
$2.48
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
