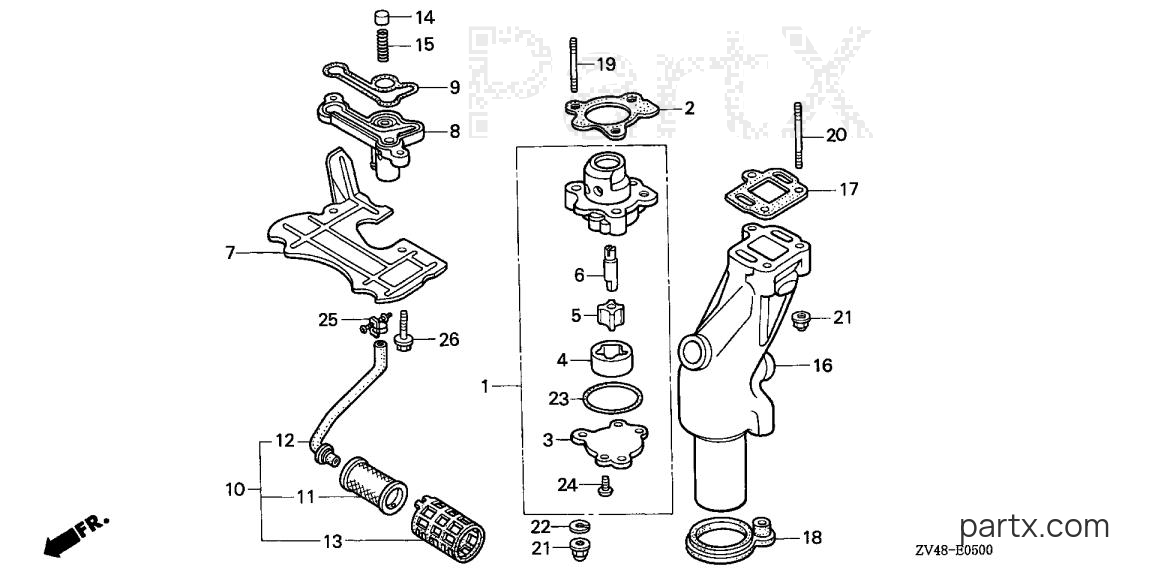

2000 Outboard BF - BF15AY XAS OIL PUMP diagram
001
Honda
PUMP ASSY., OIL (NOT AVAILABLE)15100-ZV4-000
Required: 1
PUMP ASSY., OIL (NOT AVAILABLE)
Price unavailable
002
Honda
GASKET, PUMP BODY (NOT AVAILABLE)15112-ZV4-000
Required: 1
GASKET, PUMP BODY (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
COVER, OIL PUMP15121-ZV4-000
Required: 1
COVER, OIL PUMP
$6.15
You save $1.09
-15%
004
Honda
ROTOR, OIL PUMP15122-329-010
Required: 1
ROTOR, OIL PUMP (OUTER)
$22.41
You save $3.95
-15%
005
Honda
ROTOR, OIL PUMP15123-329-010
Required: 1
ROTOR, OIL PUMP (INNER)
$18.00
You save $3.18
006
Honda
SHAFT, OIL PUMP (NOT AVAILABLE)15136-ZV4-000
Required: 1
SHAFT, OIL PUMP (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
PLATE, DEFENSE15338-ZV4-000
Required: 1
PLATE, DEFENSE (NOT AVAILABLE)
$9.81
You save $1.73
-15%
008
Honda
FLANGE, OIL FILTER15410-ZV4-000
Required: 1
FLANGE, OIL FILTER
$18.55
You save $3.27
009
Honda
GASKET, OIL FILTER (NOT AVAILABLE)15412-ZV4-000
Required: 1
GASKET, OIL FILTER (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
FILTER ASSY., OIL15420-ZV4-000
Required: 1
FILTER ASSY., OIL (NOT AVAILABLE)
$19.19
You save $3.39
-15%
011
Honda
FILTER, OIL15421-ZV4-000
Required: 1
FILTER, OIL
$9.44
You save $1.67
012
Honda
TUBE, OIL (NOT AVAILABLE)15422-ZV4-000
Required: 1
TUBE, OIL (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
HOLDER, OIL FILTER15423-ZV4-000
Required: 1
HOLDER, OIL FILTER (NOT AVAILABLE)
$12.26
You save $2.16
-15%
014
Honda
VALVE, CHECK15473-881-000
Required: 1
VALVE, CHECK
$10.30
You save $1.82
-15%
015
Honda
SPRING, CHECK VALVE15474-881-000
Required: 1
SPRING, CHECK VALVE
$4.90
You save $0.86
016
Honda
PIPE, EX. *TBLACK*(BLACK) (NOT AVAILABLE)18330-ZV4-000ZB
Required: 1
PIPE, EX. *TBLACK*(BLACK) (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
GASKET, EX. PIPE18333-ZV4-610
Required: 1
GASKET, EX. PIPE (NOT AVAILABLE)
$8.55
You save $1.51
-15%
018
Honda
GROMMET, WATER TUBE19252-ZV4-003
Required: 1
GROMMET, WATER TUBE (NOT AVAILABLE)
$14.53
You save $2.56
-15%
019
Honda
BOLT, STUD (6X39)90006-ZV4-000
Required: 3
BOLT, STUD (6X39)
$3.18
You save $0.56
020
Honda
BOLT, STUD (6X42) (NOT AVAILABLE)90007-ZV4-000
Required: 3
BOLT, STUD (6X42) (NOT AVAILABLE)
Price unavailable
-15%
021
Honda
NUT, CAP (6MM)90202-ZV0-000
Required: 6
NUT, CAP (6MM)
$3.03
You save $0.53
022
Honda
WASHER, SPRING (6MM)90567-ZV4-000
Required: 3
WASHER, SPRING (6MM)
Price unavailable
023
Honda
O-RING, PUMP COVER (NOT AVAILABLE)91301-ZV4-000
Required: 1
O-RING, PUMP COVER (NOT AVAILABLE)
Price unavailable
-15%
024
Honda
SCREW, PAN (5X8)93500-05008-0B
Required: 2
SCREW, PAN (5X8)
$1.27
You save $0.23
-15%
025
Honda
CLAMP, TUBE (D10.5)95002-41050-08
Required: 1
CLAMP, TUBE (D10.5)
$2.62
You save $0.46
-15%
026
Honda
BOLT, FLANGE (6X22)95701-06022-00
Required: 2
BOLT, FLANGE (6X22)
$1.87
You save $0.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
