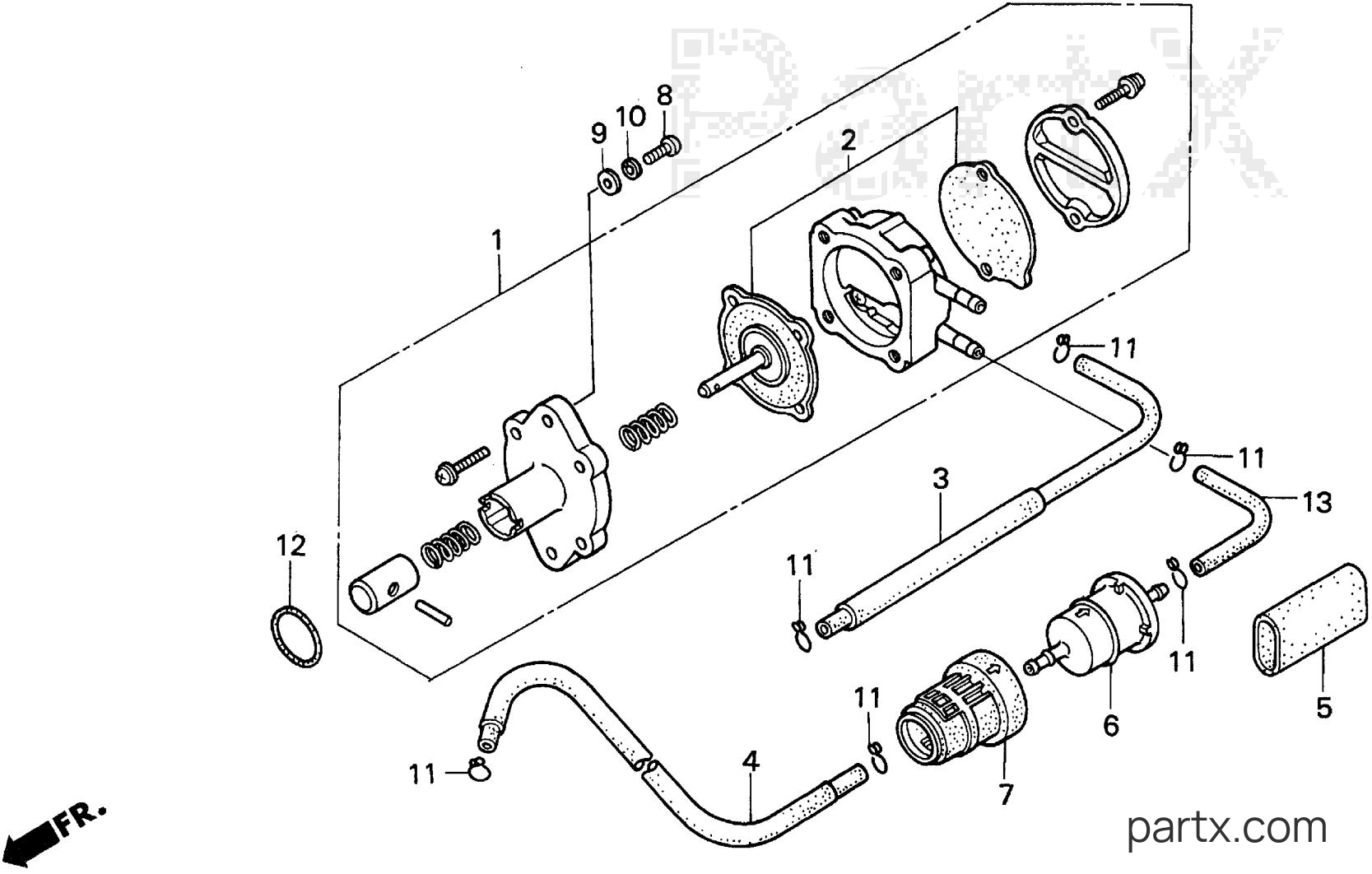

All Years Outboard BF - BF15AK SA FUEL PUMP diagram
001
Honda
PUMP ASSY., FUEL (NOT AVAILABLE) (MSDS)16700-ZV4-005
Required: 1
PUMP ASSY., FUEL (NOT AVAILABLE) (MSDS)
Price unavailable
-15%
$31.08
You save $5.48
003
Honda
TUBE, FUEL (A) (NOT AVAILABLE)16850-ZV4-000
Required: 1
TUBE, FUEL (A) (NOT AVAILABLE)
Price unavailable
004
Honda
TUBE, FUEL (B) (NOT AVAILABLE)16860-ZV4-000
Required: 1
TUBE, FUEL (B) (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
PROTECTOR, TUBE16865-ZV4-000
Required: 1
PROTECTOR, TUBE (NOT AVAILABLE)
$5.76
You save $1.02
-15%
006
Honda
FILTER, FUEL16910-ZV4-015
Required: 1
FILTER, FUEL
$15.81
You save $2.79
-15%
007
Honda
SUSPENSION, STRAINER16915-ZV4-000
Required: 1
SUSPENSION, STRAINER
$7.24
You save $1.28
008
Honda
SCREW, PAN (6X22) (NOT AVAILABLE)90021-ZV4-000
Required: 2
SCREW, PAN (6X22) (NOT AVAILABLE)
Price unavailable
009
Honda
WASHER, PLAIN (6.2MM) (NOT AVAILABLE)90566-ZV4-000
Required: 2
WASHER, PLAIN (6.2MM) (NOT AVAILABLE)
Price unavailable
010
Honda
WASHER, SPRING (6MM)90567-ZV4-000
Required: 2
WASHER, SPRING (6MM)
Price unavailable
-15%
011
Honda
CLIP, TUBE (B10)90603-ZV4-000
Required: 6
CLIP, TUBE (B10)
$1.60
You save $0.28
-50%
012
Honda
O-RING (20.8X2.4)91351-MG7-003
Required: 1
O-RING (20.8X2.4)
In stock
Only 2 remaining
$1.66
You save $1.66
-15%
013
Honda
BULK HOSE (5.5X3000)95001-55003-60M
Required: 1
BULK HOSE, FUEL (5.5X3000) OEM CUT SIZE: (5.3X90)
$56.78
You save $10.02
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
