All diagrams for this model

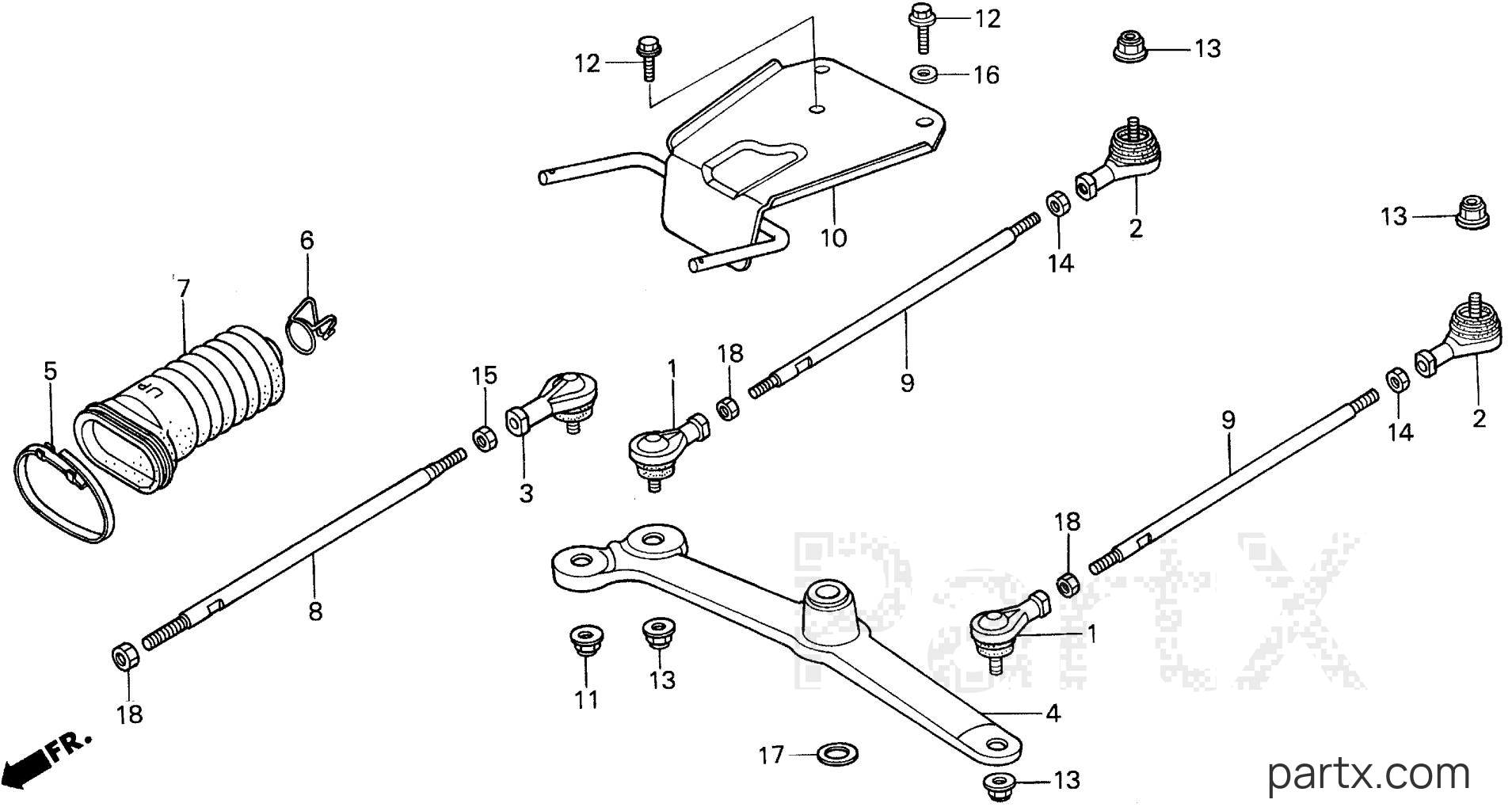

All Years Multi Purpose Tractor H - H5013 A2/B REAR STEERING ARM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda H5013 A2/B - REAR STEERING ARM
Change View:
-15%
JOINT, R. (ER12)
001
Honda
JOINT, R. (ER12)53165-752-003
Required: 2
JOINT, R. BALL (ER12) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$67.68
$57.53
You save $10.15
More details
-15%
JOINT, L. (ER12)
002
Honda
JOINT, L. (ER12)53166-752-003
Required: 2
JOINT, L. BALL (ER12) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$57.56
$48.93
You save $8.63
More details
JOINT, L. BALL (ER10)
003
Honda
JOINT, L. BALL (ER10)53168-752-003
Required: 1
JOINT, L. BALL (ER10)
Price unavailable
ARM, RR. STEERING (NOT AVAILABLE)
004
Honda
ARM, RR. STEERING (NOT AVAILABLE)53425-752-630
Required: 1
ARM, RR. STEERING (NOT AVAILABLE)
Price unavailable
BAND, RELAY ROD SEAL (NOT AVAILABLE)
005
Honda
BAND, RELAY ROD SEAL (NOT AVAILABLE)53433-752-000
Required: 1
BAND, RELAY ROD SEAL (NOT AVAILABLE)
Price unavailable
CLIP, TIE ROD
006
Honda
CLIP, TIE ROD53434-SD9-000
Required: 1
CLIP, TIE ROD
Price unavailable
SEAL, RELAY ROD (NOT AVAILABLE)
007
Honda
SEAL, RELAY ROD (NOT AVAILABLE)53434-752-000
Required: 1
SEAL, RELAY ROD (NOT AVAILABLE)
Price unavailable
ROD, RR. STEERING RELAY (NOT AVAILABLE)
008
Honda
ROD, RR. STEERING RELAY (NOT AVAILABLE)53435-752-003
Required: 1
ROD, RR. STEERING RELAY (NOT AVAILABLE)
Price unavailable
-15%
TIE ROD, RR.
009
Honda
TIE ROD, RR.53522-752-B31
Required: 2
TIE ROD, RR. (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$38.50
$32.73
You save $5.77
More details
BRACKET B, OIL TANK (NOT AVAILABLE)
010
Honda
BRACKET B, OIL TANK (NOT AVAILABLE)56735-752-010
Required: 1
BRACKET B, OIL TANK (NOT AVAILABLE)
Price unavailable
-15%
NUT (10MM)
011
Honda
NUT (10MM)90212-671-005
Required: 1
NUT, SELF-LOCK (10MM)
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
-15%
BOLT, FLANGE (8X20)
012
Honda
BOLT, FLANGE (8X20)90103-426-000
Required: 3
BOLT, FLANGE (8X20)
Cross Ship
Leaves in 2-5 days
$4.42
$3.76
You save $0.66
More details
-15%
NUT (12MM)
013
Honda
NUT (12MM)90215-SB0-003
Required: 4
NUT, SELF-LOCK (12MM) (CLINCH)(SATO RASHI)
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
NUT, L. HEX. (12MM) (NOT AVAILABLE)
014
Honda
NUT, L. HEX. (12MM) (NOT AVAILABLE)90301-752-000
Required: 2
NUT, L. HEX. (12MM) (NOT AVAILABLE)
Price unavailable
-15%
NUT, HEX. (10MM)
015
Honda
NUT, HEX. (10MM)90303-752-000
Required: 1
NUT, HEX. (10MM)
Cross Ship
Leaves in 2-5 days
$3.32
$2.82
You save $0.50
More details
-15%
WASHER (8MM)
016
Honda
WASHER (8MM)90441-286-000
Required: 2
WASHER, SEALING (8MM)
Cross Ship
Leaves in 2-5 days
$2.32
$1.97
You save $0.35
More details
-15%
WASHER (17MM)
017
Honda
WASHER (17MM)90451-198-000
Required: 1
WASHER, THRUST (17MM) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$2.38
$2.02
You save $0.36
More details
-15%
NUT, HEX. (12MM)
018
Honda
NUT, HEX. (12MM)94001-12080-0S
Required: 3
NUT, HEX. (12MM)
Cross Ship
Leaves in 2-5 days
$2.12
$1.80
You save $0.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
