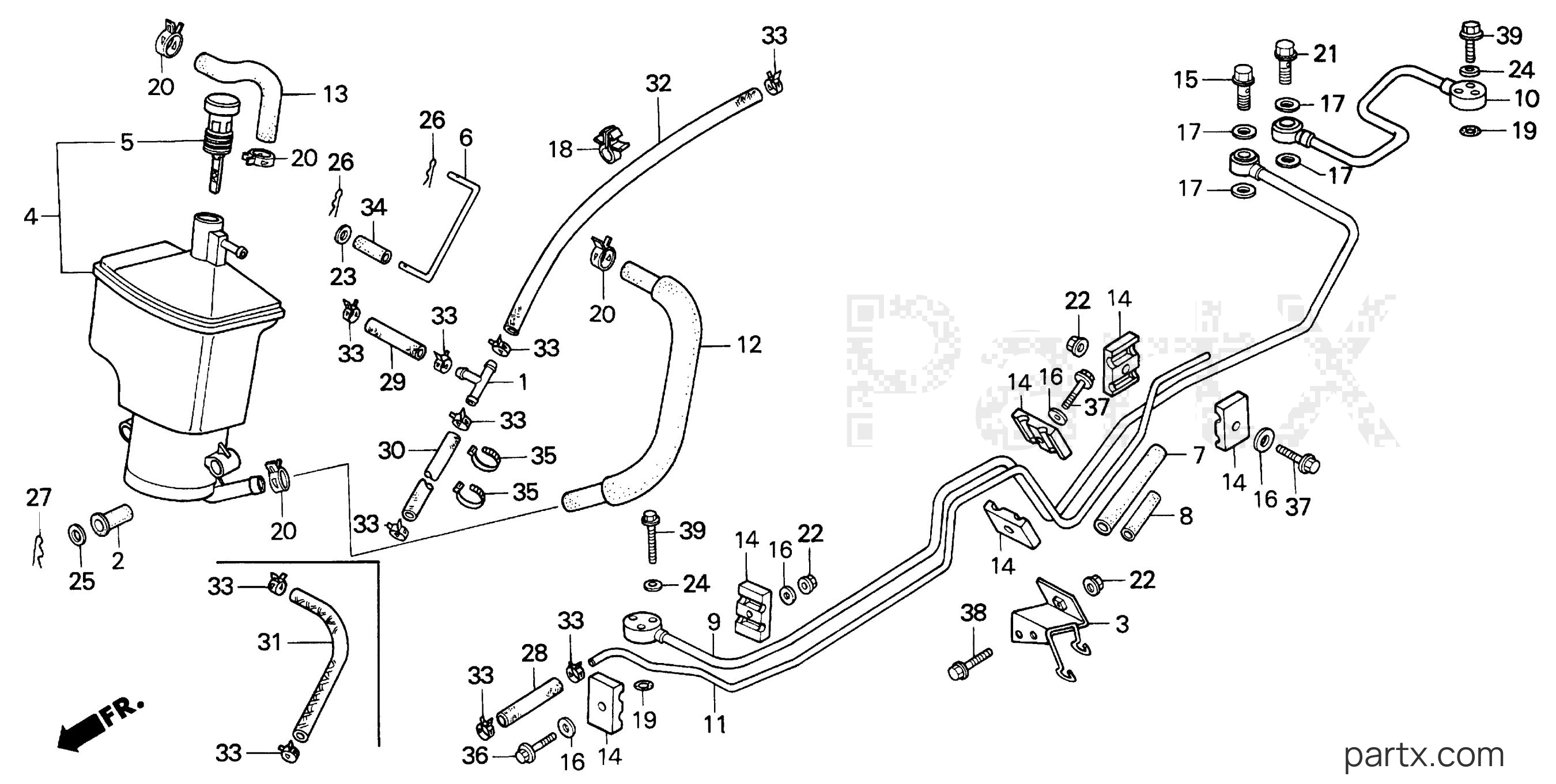

All Years Multi Purpose Tractor H - H5013 AC4/B OIL TANK diagram
-15%
002
Honda
CUSHION17506-MB1-000
Required: 2
CUSHION, FUEL TANK PIVOT
$5.02
You save $0.88
003
Honda
CLIP, DRAIN TUBE (NOT AVAILABLE)17523-752-630
Required: 1
CLIP, DRAIN TUBE (NOT AVAILABLE)
Price unavailable
004
Honda
TANK ASSY., OIL (NOT AVAILABLE)56700-752-000
Required: 1
TANK ASSY., OIL (NOT AVAILABLE)
Price unavailable
005
Honda
CAP, OIL TANK (NOT AVAILABLE)56721-752-003
Required: 1
CAP, OIL TANK (NOT AVAILABLE)
Price unavailable
006
Honda
BRACKET A, OIL TANK (NOT AVAILABLE)56731-752-B30
Required: 1
BRACKET A, OIL TANK (NOT AVAILABLE)
Price unavailable
007
Honda
TUBE (12X200) (NOT AVAILABLE)56901-752-900
Required: 1
TUBE (12X200) (NOT AVAILABLE)
Price unavailable
008
Honda
TUBE (8X100) (NOT AVAILABLE)56902-752-900
Required: 1
TUBE (8X100) (NOT AVAILABLE)
Price unavailable
009
Honda
PIPE A, FEEDER (NOT AVAILABLE)56920-752-B30
Required: 1
PIPE A, FEEDER (NOT AVAILABLE)
Price unavailable
011
Honda
PIPE A, BREATHER (NOT AVAILABLE)56940-752-901
Required: 1
PIPE A, BREATHER (NOT AVAILABLE)
Price unavailable
012
Honda
TUBE ASSY., SUCTION (NOT AVAILABLE)56950-752-B30
Required: 1
TUBE ASSY., SUCTION (NOT AVAILABLE)
Price unavailable
013
Honda
TUBE, RETURN (NOT AVAILABLE)56952-752-B30
Required: 1
TUBE, RETURN (NOT AVAILABLE)
Price unavailable
014
Honda
SADDLE, PIPING (NOT AVAILABLE)56959-752-900
Required: 6
SADDLE, PIPING (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
BOLT A, JOINT90104-752-000
Required: 1
BOLT A, JOINT (NOT AVAILABLE)
$8.14
You save $1.44
-15%
016
Honda
WASHER (6.5X25X1.5)90404-680-000
Required: 4
WASHER (6.5X25X1.5)
$5.05
You save $0.89
017
Honda
WASHER, JOINT (14MM) (NOT AVAILABLE)90452-752-000
Required: 3
WASHER, JOINT (14MM) (NOT AVAILABLE)
Price unavailable
-15%
019
Honda
O-RING (11.8X1.9)91361-VD6-901
Required: 1
O-RING (11.8X1.9)
$2.48
You save $0.44
-15%
020
Honda
CLAMP D (19MM)91462-SA5-950
Required: 4
CLAMP D (19MM)
$9.84
You save $1.74
-15%
021
Honda
BOLT, DRAIN (14MM)92800-14000
Required: 1
BOLT, DRAIN PLUG (14MM)
$4.56
You save $0.80
-50%
022
Honda
NUT, FLANGE (6MM)94050-06080
Required: 4
NUT, FLANGE (6MM)
In stock
Only 5 remaining
$0.41
You save $0.41
-15%
023
Honda
WASHER, PLAIN (5MM)94101-05800
Required: 1
WASHER, PLAIN (5MM)
$1.02
You save $0.18
-20%
024
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 3
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
025
Honda
WASHER, PLAIN (8MM)94101-08800
Required: 2
WASHER, PLAIN (8MM)
$2.01
You save $0.35
-15%
026
Honda
PIN, LOCK (5MM)94251-05400
Required: 2
PIN, LOCK (5MM)
$0.87
You save $0.15
027
Honda
PIN, LOCK (8MM) (NOT AVAILABLE)94251-08400
Required: 2
PIN, LOCK (8MM) (NOT AVAILABLE)
Price unavailable
-15%
028
Honda
BULK HOSE (7.5X3000)95001-75003-50M
Required: 1
BULK HOSE, FUEL (7.5X3000) OEM CUT SIZE: (7.3X60)
$119.71
You save $21.13
-15%
031
Honda
BULK HOSE (7.5X3000)95001-75003-50M
Required: 1
BULK HOSE, FUEL (7.5X3000) OEM CUT SIZE: (7.5X380)
$119.71
You save $21.13
-15%
033
Honda
CLAMP, TUBE (D12.5)95002-41250-08
Required: 4
CLAMP, TUBE (D12.5)
$2.62
You save $0.46
-15%
034
Honda
BULK HOSE (5X3000)95005-50003-30M
Required: 1
BULK HOSE, VACUUM (5X3000) OEM CUT SIZE: (5X22)
$25.02
You save $4.42
-15%
035
Honda
BAND B1, WIRE95014-62100
Required: 3
BAND B1, WIRE
$1.70
You save $0.30
-15%
036
Honda
BOLT, FLANGE (6X28)95701-06028-08
Required: 1
BOLT, FLANGE (6X28)
$2.26
You save $0.40
-15%
037
Honda
BOLT, FLANGE (6X32)95701-06032-08
Required: 2
BOLT, FLANGE (6X32)
$1.96
You save $0.35
-15%
038
Honda
BOLT, FLANGE (6X16)95701-06016-08
Required: 2
BOLT, FLANGE (6X16)
$1.55
You save $0.27
-15%
039
Honda
BOLT, FLANGE (6X35)95701-06035-08
Required: 3
BOLT, FLANGE (6X35)
$1.85
You save $0.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
