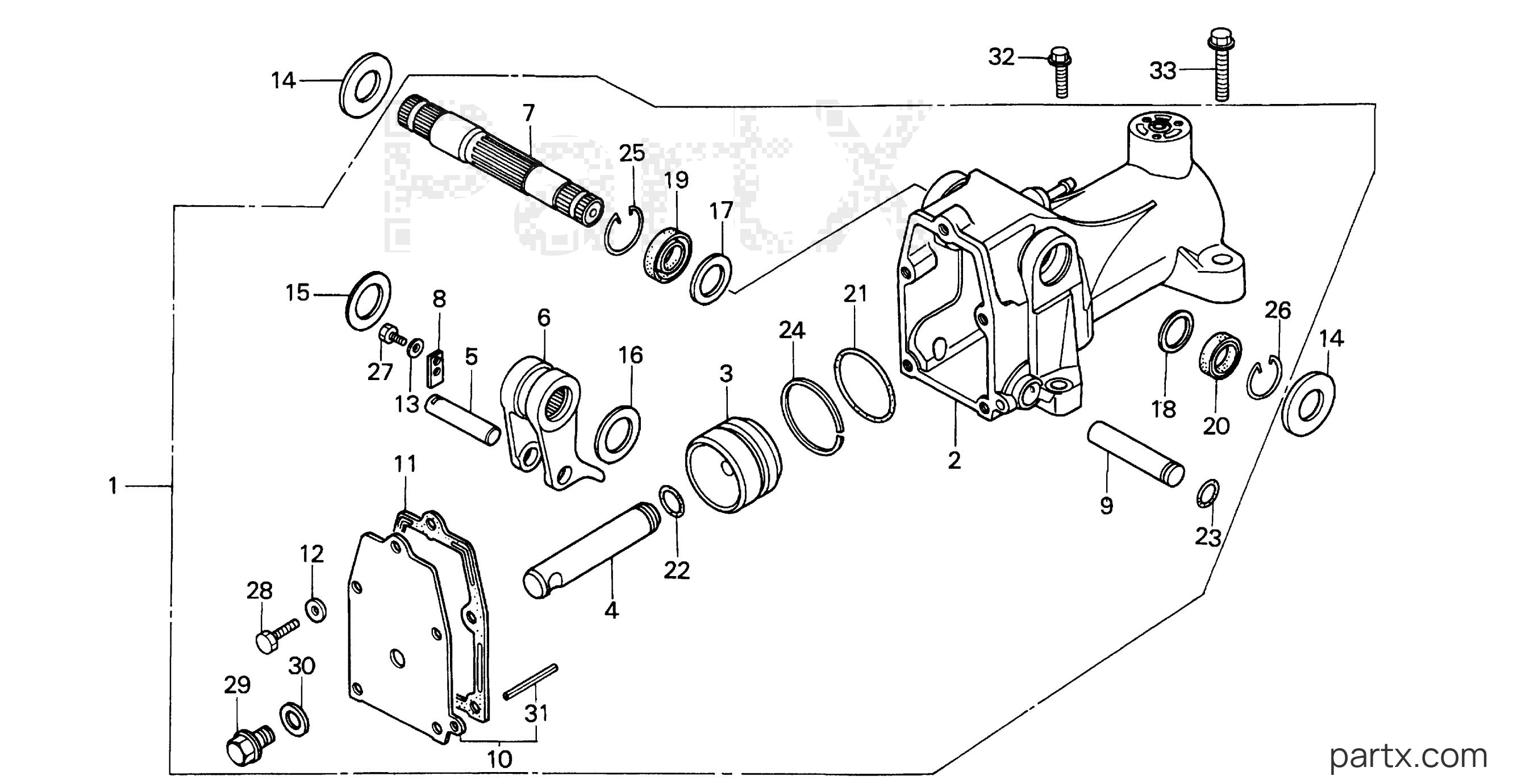

All Years Multi Purpose Tractor H - H5013 A2/B HYDRAULIC CYLINDER diagram
001
Honda
CYLINDER ASSY., HYDRAULIC (NOT AVAILABLE)56500-752-020
Required: 1
CYLINDER ASSY., HYDRAULIC (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
CYLINDER, HYDRAULIC56510-752-010
Required: 1
CYLINDER, HYDRAULIC
$865.81
You save $152.79
003
Honda
PISTON, HYDRAULIC (60MM) (NOT AVAILABLE)56521-752-000
Required: 1
PISTON, HYDRAULIC (60MM) (NOT AVAILABLE)
Price unavailable
004
Honda
ROD, CONNECTING (NOT AVAILABLE)56531-752-000
Required: 1
ROD, CONNECTING (NOT AVAILABLE)
Price unavailable
005
Honda
PIN, CONNECTING ROD (NOT AVAILABLE)56532-752-000
Required: 1
PIN, CONNECTING ROD (NOT AVAILABLE)
Price unavailable
006
Honda
ARM, HYDRAULIC CYLINDER (NOT AVAILABLE)56533-752-020
Required: 1
ARM, HYDRAULIC CYLINDER (NOT AVAILABLE)
Price unavailable
007
Honda
SHAFT, HYDRAULIC CYLINDER (NOT AVAILABLE)56537-752-000
Required: 1
SHAFT, HYDRAULIC CYLINDER (NOT AVAILABLE)
Price unavailable
008
Honda
PLATE, CONNECTING ROD PIN (NOT AVAILABLE)56538-752-010
Required: 1
PLATE, CONNECTING ROD PIN (NOT AVAILABLE)
Price unavailable
009
Honda
SHAFT, STOPPER (NOT AVAILABLE)56541-752-000
Required: 1
SHAFT, STOPPER (NOT AVAILABLE)
Price unavailable
010
Honda
COVER, CYLINDER (NOT AVAILABLE)56546-752-000
Required: 1
COVER, CYLINDER (NOT AVAILABLE)
Price unavailable
011
Honda
GASKET, HYDRAULIC CYLINDER COVER (NOT AVAILABLE)56547-752-000
Required: 1
GASKET, HYDRAULIC CYLINDER COVER (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
WASHER (8MM)90405-463-000
Required: 5
WASHER (8MM)
$3.93
You save $0.69
-15%
013
Honda
WASHER (6MM)90411-744-000
Required: 2
WASHER, CONICAL SPRING (6MM)
$4.49
You save $0.79
014
Honda
WASHER, THRUST (25.5X50X5) (NOT AVAILABLE)90445-752-000
Required: 2
WASHER, THRUST (25.5X50X5) (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
WASHER (28.5MM)90505-752-000
Required: 1
WASHER, PLAIN (INNER) (28.5MM)
$8.53
You save $1.51
-15%
016
Honda
WASHER (25.5MM)90506-752-000
Required: 1
WASHER, PLAIN (INNER) (25.5MM)
$8.53
You save $1.51
-15%
017
Honda
WASHER (30.5MM)90507-752-000
Required: 1
WASHER, PLAIN (OUTER) (30.5MM) (NOT AVAILABLE)
$7.80
You save $1.38
-15%
018
Honda
WASHER (25.5MM)90508-752-000
Required: 1
WASHER, PLAIN (OUTER) (25.5MM)
$8.04
You save $1.42
019
Honda
OIL SEAL (30X44X8) (NOT AVAILABLE)91251-752-000
Required: 1
OIL SEAL (30X44X8) (NOT AVAILABLE)
Price unavailable
020
Honda
OIL SEAL (25X38X9) (NOT AVAILABLE)91252-752-000
Required: 1
OIL SEAL (25X38X9) (NOT AVAILABLE)
Price unavailable
-15%
021
Honda
O-RING91351-752-003
Required: 1
O-RING, HYDRAULIC CYLINDER
$4.96
You save $0.88
-15%
022
Honda
O-RING (17X3.5)91361-752-000
Required: 1
O-RING (17X3.5)
$3.71
You save $0.65
-15%
023
Honda
O-RING (13.8X2.4)91311-PH7-003
Required: 1
O-RING (13.8X2.4) (NOK)
$2.53
You save $0.45
024
Honda
RING, BACK-UP (NOT AVAILABLE)91391-752-003
Required: 1
RING, BACK-UP (NOT AVAILABLE)
Price unavailable
-15%
025
Honda
RING, STOPPER (49)91410-752-000
Required: 1
RING, STOPPER (49)
$7.57
You save $1.33
-15%
026
Honda
RING, STOPPER (43)91411-752-000
Required: 1
RING, STOPPER (43)
$7.57
You save $1.33
-15%
027
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 2
BOLT, HEX. (6X12)
$1.46
You save $0.26
-15%
028
Honda
BOLT, HEX. (8X22)92101-08022-0H
Required: 5
BOLT, HEX. (8X22)
$1.85
You save $0.33
-15%
029
Honda
BOLT, DRAIN (14MM)92800-14000
Required: 1
BOLT, DRAIN PLUG (14MM)
$4.56
You save $0.80
-15%
030
Honda
WASHER, DRAIN (14MM)94109-14000
Required: 1
WASHER, DRAIN PLUG (14MM)
$0.66
You save $0.12
-15%
031
Honda
PIN, SPRING (6X40)94305-60402
Required: 1
PIN, SPRING (6X40)
$2.18
You save $0.38
-15%
032
Honda
BOLT, FLANGE (10X55)95701-10055-08
Required: 2
BOLT, FLANGE (10X55)
$2.91
You save $0.51
033
Honda
BOLT, FLANGE (12X58) (NOT AVAILABLE)90046-PD2-951
Required: 2
BOLT, FLANGE (12X58) (NOT AVAILABLE)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
