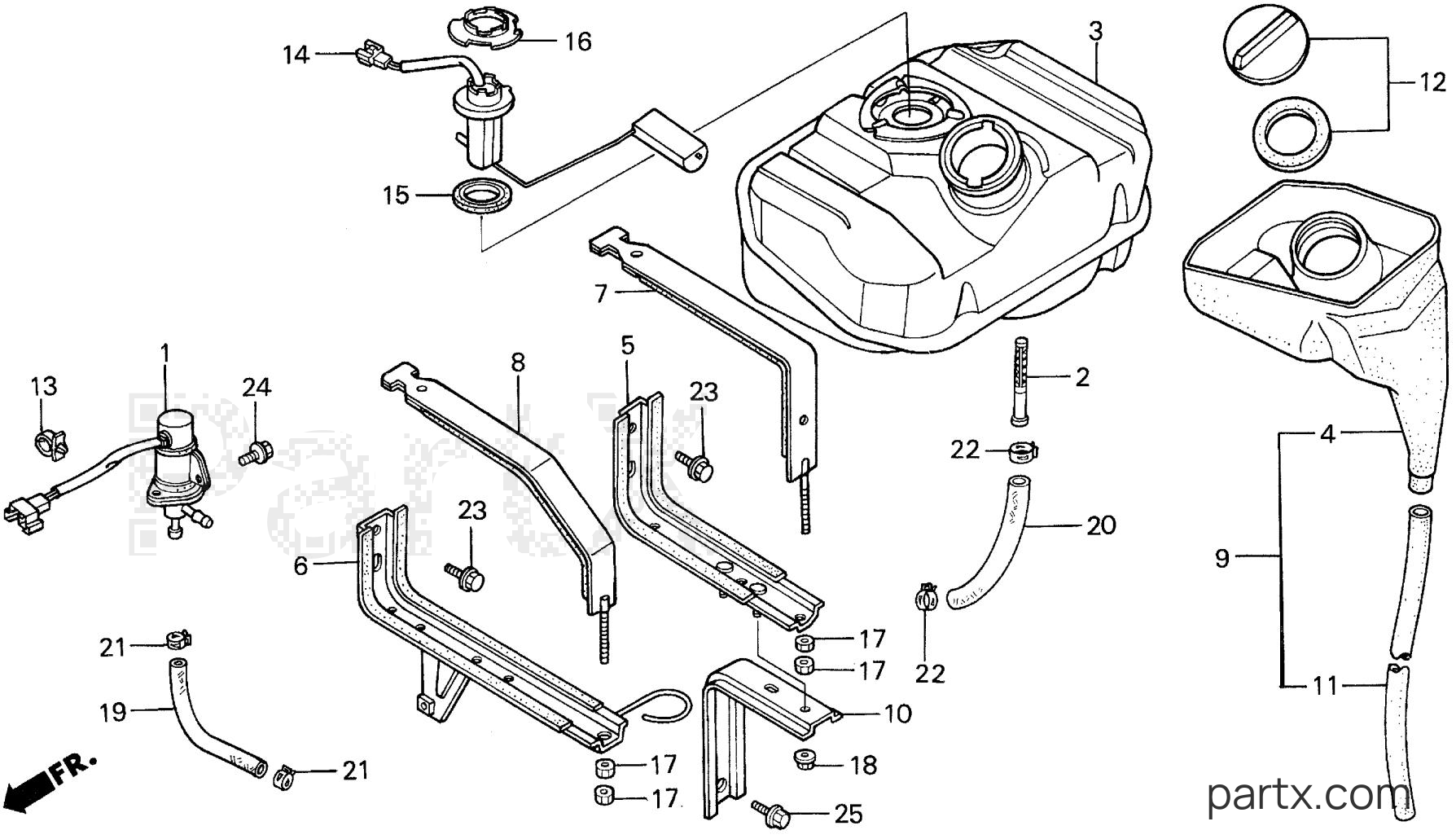

All Years Multi Purpose Tractor H - H5013 A2/D FUEL TANK diagram
001
Honda
VALVE ASSY., ELECTRIC FUEL (NOT AVAILABLE)16930-752-003
Required: 1
VALVE ASSY., ELECTRIC FUEL (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
FILTER, FUEL16952-ZA0-000
Required: 1
FILTER, FUEL
$13.38
You save $2.36
003
Honda
TANK, FUEL (NOT AVAILABLE)17510-752-000
Required: 1
TANK, FUEL (NOT AVAILABLE)
Price unavailable
004
Honda
TRAY, FUEL TANK (NOT AVAILABLE)17512-752-010
Required: 1
TRAY, FUEL TANK (NOT AVAILABLE)
Price unavailable
005
Honda
STAY A, TANK (NOT AVAILABLE)17515-752-020
Required: 1
STAY A, TANK (NOT AVAILABLE)
Price unavailable
006
Honda
STAY B, TANK (NOT AVAILABLE)17516-752-020
Required: 1
STAY B, TANK (NOT AVAILABLE)
Price unavailable
007
Honda
BAND A, TANK (NOT AVAILABLE)17517-752-020
Required: 1
BAND A, TANK (NOT AVAILABLE)
Price unavailable
008
Honda
BAND B, TANK (NOT AVAILABLE)17518-752-020
Required: 1
BAND B, TANK (NOT AVAILABLE)
Price unavailable
009
Honda
TUBE, FUEL TANK TRAY DRAIN (NOT AVAILABLE)17520-752-630
Required: 1
TUBE, FUEL TANK TRAY DRAIN (NOT AVAILABLE)
Price unavailable
010
Honda
BEAM, TANK BRACKET (NOT AVAILABLE)17521-752-000
Required: 1
BEAM, TANK BRACKET (NOT AVAILABLE)
Price unavailable
011
Honda
TUBE, DRAIN (NOT AVAILABLE)17522-752-630
Required: 1
TUBE, DRAIN (NOT AVAILABLE)
Price unavailable
012
Honda
CAP, FUEL TANK (NOT AVAILABLE)17620-752-003
Required: 1
CAP, FUEL TANK (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
CLIP (8MM)30701-883-000
Required: 1
CLIP, IGNITION WIRE (8MM)
$3.03
You save $0.53
014
Honda
METER UNIT, FUEL (NOT AVAILABLE)37800-752-631
Required: 1
METER UNIT, FUEL (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
GASKET, BASE37801-GA7-700
Required: 1
GASKET, BASE
$5.90
You save $1.04
-15%
016
Honda
RETAINER, FUEL UNIT37802-GA7-700
Required: 1
RETAINER, FUEL UNIT
$5.90
You save $1.04
-15%
017
Honda
NUT, HEX. (6MM)94001-06080-0S
Required: 4
NUT, HEX. (6MM)
$1.36
You save $0.24
-50%
018
Honda
NUT, FLANGE (6MM)94050-06080
Required: 2
NUT, FLANGE (6MM)
In stock
Only 5 remaining
$0.41
You save $0.41
019
Honda
BULK HOSE, FUEL (5.5X8000) OEM CUT SIZE: (5.5X160)95001-55008-20M
Required: 1
BULK HOSE, FUEL (5.5X8000) OEM CUT SIZE: (5.5X160)
Price unavailable
-15%
020
Honda
BULK HOSE (8X1000)95001-80001-50M
Required: 1
BULK HOSE, FUEL (8X1000) OEM CUT SIZE: (8X150)
$43.33
You save $7.65
-15%
020
Honda
BULK HOSE (8X1000)95001-80001-50M
Required: 1
BULK HOSE, FUEL (8X1000) OEM CUT SIZE: (8X150)
$43.33
You save $7.65
-15%
021
Honda
CLAMP, TUBE (D10.5)95002-41050-08
Required: 2
CLAMP, TUBE (D10.5)
$2.62
You save $0.46
-15%
022
Honda
CLAMP, TUBE (D13)95002-41300-08
Required: 2
CLAMP, TUBE (D13)
$3.40
You save $0.60
-20%
023
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 4
BOLT, FLANGE (6X10)
$1.57
You save $0.39
-15%
024
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 1
BOLT, FLANGE (6X12)
$1.73
You save $0.31
-15%
025
Honda
BOLT, FLANGE (8X14)95701-08014-08
Required: 1
BOLT, FLANGE (8X14)
$1.87
You save $0.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
