All diagrams for this model

All Years Multi Purpose Tractor H - H5013 A2/D FRONT P.T.O. CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

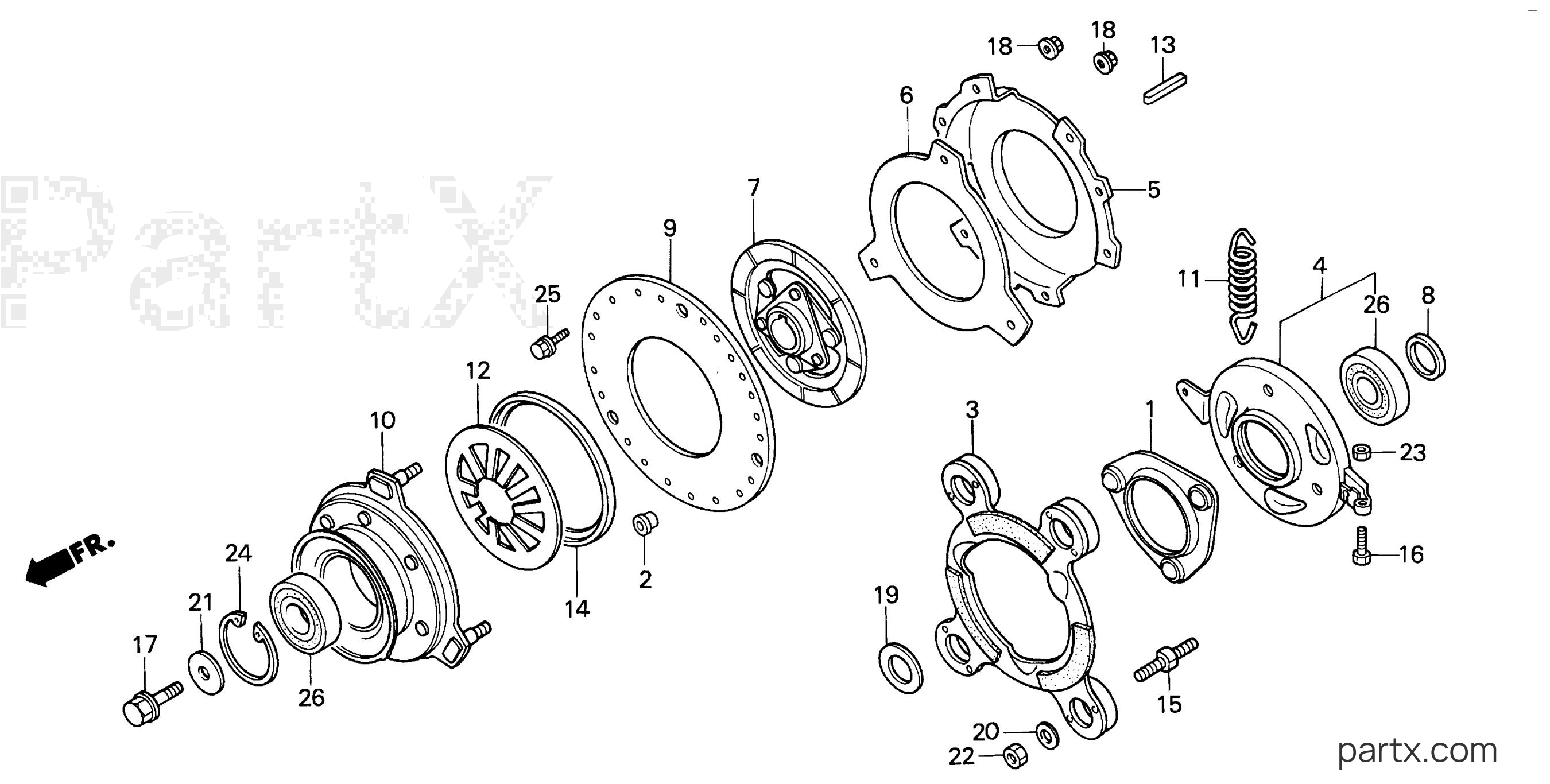

Honda H5013 A2/D - FRONT P.T.O. CLUTCH
Change View:
RETAINER, FR. BALL (NOT AVAILABLE)
001
Honda
RETAINER, FR. BALL (NOT AVAILABLE)22535-750-800
Required: 1
RETAINER, FR. BALL (NOT AVAILABLE)
Price unavailable
-15%
BUSH, RR. CLUTCH
002
Honda
BUSH, RR. CLUTCH22572-750-000
Required: 3
BUSH, RR. CLUTCH (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$8.96
$7.62
You save $1.34
More details
BRAKE ASSY.
003
Honda
BRAKE ASSY.75100-750-000
Required: 1
BRAKE ASSY.
Price unavailable
PLATE, BALL CONTROL (NOT AVAILABLE)
004
Honda
PLATE, BALL CONTROL (NOT AVAILABLE)75110-752-630
Required: 1
PLATE, BALL CONTROL (NOT AVAILABLE)
Price unavailable
-15%
PLATE, BRAKE
005
Honda
PLATE, BRAKE75131-750-003
Required: 1
PLATE, BRAKE
Cross Ship
Leaves in 2-5 days
$51.18
$43.50
You save $7.68
More details
PLATE, CLUTCH SIDE (NOT AVAILABLE)
006
Honda
PLATE, CLUTCH SIDE (NOT AVAILABLE)75132-750-003
Required: 1
PLATE, CLUTCH SIDE (NOT AVAILABLE)
Price unavailable
DISK, FRICTION
007
Honda
DISK, FRICTION75140-752-630
Required: 1
DISK, FRICTION
Price unavailable
-15%
COLLAR (25MM)
008
Honda
COLLAR (25MM)75146-750-000
Required: 1
COLLAR, DISTANCE (25MM)
Cross Ship
Leaves in 2-5 days
$8.00
$6.80
You save $1.20
More details
PLATE, CLUTCH (NOT AVAILABLE)
009
Honda
PLATE, CLUTCH (NOT AVAILABLE)75150-750-003
Required: 1
PLATE, CLUTCH (NOT AVAILABLE)
Price unavailable
PULLEY, DRIVEN (NOT AVAILABLE)
010
Honda
PULLEY, DRIVEN (NOT AVAILABLE)75160-752-631
Required: 1
PULLEY, DRIVEN (NOT AVAILABLE)
Price unavailable
SPRING, CLUTCH RETURN (NOT AVAILABLE)
011
Honda
SPRING, CLUTCH RETURN (NOT AVAILABLE)75182-750-000
Required: 1
SPRING, CLUTCH RETURN (NOT AVAILABLE)
Price unavailable
SPRING, CLUTCH (NOT AVAILABLE)
012
Honda
SPRING, CLUTCH (NOT AVAILABLE)75183-752-630
Required: 1
SPRING, CLUTCH (NOT AVAILABLE)
Price unavailable
KEY (7X7X30) (NOT AVAILABLE)
013
Honda
KEY (7X7X30) (NOT AVAILABLE)75184-752-B00
Required: 1
KEY (7X7X30) (NOT AVAILABLE)
Price unavailable
SEAT, CLUTCH SPRING (NOT AVAILABLE)
014
Honda
SEAT, CLUTCH SPRING (NOT AVAILABLE)75185-752-630
Required: 1
SEAT, CLUTCH SPRING (NOT AVAILABLE)
Price unavailable
BOLT, SPECIAL (NOT AVAILABLE)
015
Honda
BOLT, SPECIAL (NOT AVAILABLE)75186-750-000
Required: 4
BOLT, SPECIAL (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (8X30) (NOT AVAILABLE)
016
Honda
BOLT, HEX. (8X30) (NOT AVAILABLE)90003-752-630
Required: 1
BOLT, HEX. (8X30) (NOT AVAILABLE)
Price unavailable
-15%
BOLT, SPECIAL (8X25)
017
Honda
BOLT, SPECIAL (8X25)90013-360-000
Required: 1
BOLT, SPECIAL (8X25) (SOURCE: VINTAGE PARTS INC.)
Cross Ship
Leaves in 2-5 days
$8.50
$7.22
You save $1.28
More details
-15%
NUT, U (6MM)
018
Honda
NUT, U (6MM)90301-473-003
Required: 9
NUT, U (6MM) (FUSE RASHI)
Cross Ship
Leaves in 2-5 days
$5.46
$4.64
You save $0.82
More details
SHIM (25X38X1.3) (B) (NOT AVAILABLE)
019
Honda
SHIM (25X38X1.3) (B) (NOT AVAILABLE)90431-752-000
Required: 1
SHIM (25X38X1.3) (B) (NOT AVAILABLE)
Price unavailable
SHIM (25X38X1.4) (D) (NOT AVAILABLE)
019
Honda
SHIM (25X38X1.4) (D) (NOT AVAILABLE)90433-752-000
Required: 1
SHIM (25X38X1.4) (D) (NOT AVAILABLE)
Price unavailable
SHIM (25X38X1.5) (F) (NOT AVAILABLE)
019
Honda
SHIM (25X38X1.5) (F) (NOT AVAILABLE)90435-752-000
Required: 1
SHIM (25X38X1.5) (F) (NOT AVAILABLE)
Price unavailable
SHIM (25X38X1.6) (H) (NOT AVAILABLE)
019
Honda
SHIM (25X38X1.6) (H) (NOT AVAILABLE)90437-752-000
Required: 1
SHIM (25X38X1.6) (H) (NOT AVAILABLE)
Price unavailable
SHIM (25X38X1.1) (L) (NOT AVAILABLE)
019
Honda
SHIM (25X38X1.1) (L) (NOT AVAILABLE)90441-752-630
Required: 1
SHIM (25X38X1.1) (L) (NOT AVAILABLE)
Price unavailable
SHIM (25X38X1.2) (M) (NOT AVAILABLE)
019
Honda
SHIM (25X38X1.2) (M) (NOT AVAILABLE)90442-752-630
Required: 1
SHIM (25X38X1.2) (M) (NOT AVAILABLE)
Price unavailable
WASHER, THRUST (8.5) (NOT AVAILABLE)
020
Honda
WASHER, THRUST (8.5) (NOT AVAILABLE)90443-MF5-000
Required: 4
WASHER, THRUST (8.5) (NOT AVAILABLE)
Price unavailable
-15%
WASHER (8MM)
021
Honda
WASHER (8MM)90473-842-000
Required: 1
WASHER (8MM)
Cross Ship
Leaves in 2-5 days
$1.88
$1.60
You save $0.28
More details
-15%
NUT, HEX. (8MM)
022
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 4
NUT, HEX. (8MM)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
-15%
NUT, HEX. (8MM)
023
Honda
NUT, HEX. (8MM)94002-08000-0S
Required: 1
NUT, HEX. (8MM)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
-15%
CIRCLIP (47MM)
024
Honda
CIRCLIP (47MM)94520-47000
Required: 1
CIRCLIP (INNER) (47MM)
Cross Ship
Leaves in 2-5 days
$2.86
$2.43
You save $0.43
More details
-15%
BOLT, FLANGE (6X16)
025
Honda
BOLT, FLANGE (6X16)95701-06016-00
Required: 6
BOLT, FLANGE (6X16)
Cross Ship
Leaves in 2-5 days
$1.98
$1.68
You save $0.30
More details
-15%
BEARING (6005UU)
026
Honda
BEARING (6005UU)96150-60050-10
Required: 2
BEARING, RADIAL BALL (6005UU)
Cross Ship
Leaves in 2-5 days
$24.96
$21.22
You save $3.74
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
