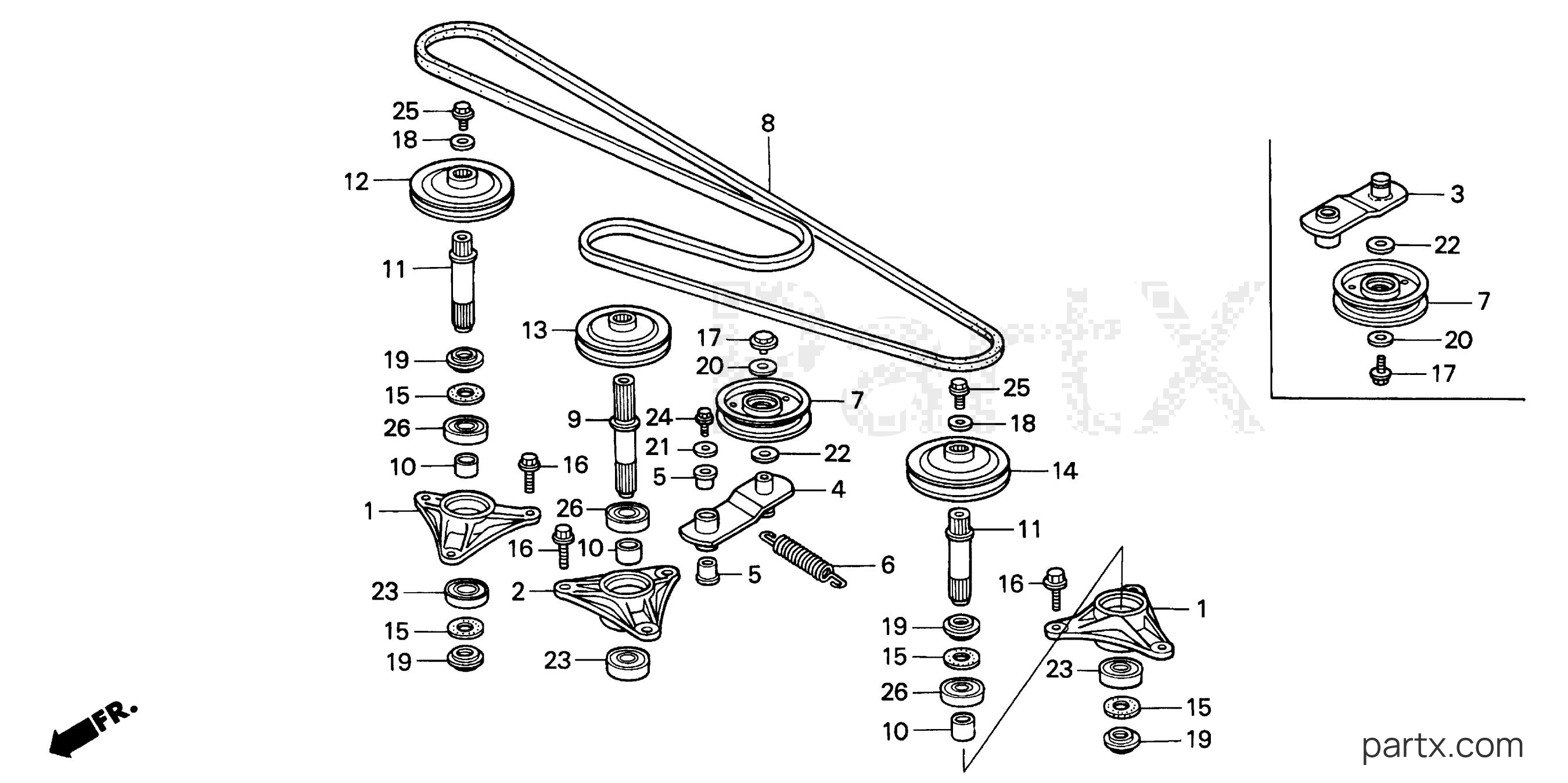

All Years Multi Purpose Tractor MM - MM46K1 A BLADE SHAFT diagram
001
Honda
HOUSING, BEARING (NOT AVAILABLE)72711-752-830
Required: 2
HOUSING, BEARING (NOT AVAILABLE)
Price unavailable
002
Honda
HOUSING, BEARING (NOT AVAILABLE)72711-752-830
Required: 1
HOUSING, BEARING (NOT AVAILABLE)
Price unavailable
004
Honda
ARM, TENSION (NOT AVAILABLE)76120-752-830
Required: 1
ARM, TENSION (NOT AVAILABLE)
Price unavailable
005
Honda
BUSH, TENSIONER ARM (15X19X14) (NOT AVAILABLE)76121-752-830
Required: 2
BUSH, TENSIONER ARM (15X19X14) (NOT AVAILABLE)
Price unavailable
006
Honda
SPRING, TENSIONER ARM76122-752-830
Required: 1
SPRING, TENSIONER ARM
Price unavailable
-15%
007
Honda
ROLLER, TENSIONER76130-750-000
Required: 1
ROLLER, TENSIONER (NOT AVAILABLE)
$41.40
You save $7.30
-15%
008
Honda
V-BELT, BLADE (95)76181-752-831
Required: 1
V-BELT, BLADE (95) (NOT AVAILABLE)
No longer availableSearch Nationwide Inventory
$48.72
You save $8.60
009
Honda
SHAFT C, BLADE (NOT AVAILABLE)76212-752-830
Required: 1
SHAFT C, BLADE (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
COLLAR, BLADE SHAFT76213-751-700
Required: 3
COLLAR, BLADE SHAFT
$10.27
You save $1.81
-15%
011
Honda
SHAFT (112.5MM)76214-751-700
Required: 2
SHAFT, BLADE (112.5MM)
$73.32
You save $12.94
012
Honda
PULLEY, R. DECK (NOT AVAILABLE)76220-752-830
Required: 1
PULLEY, R. DECK (NOT AVAILABLE)
Price unavailable
013
Honda
PULLEY, DECK (NOT AVAILABLE)76240-752-830
Required: 1
PULLEY, DECK (NOT AVAILABLE)
Price unavailable
014
Honda
PULLEY, R. DECK (NOT AVAILABLE)76220-752-830
Required: 1
PULLEY, R. DECK (NOT AVAILABLE)
Price unavailable
015
Honda
DUST SEAL, GAUGE ROLLER (NOT AVAILABLE)76281-752-830
Required: 4
DUST SEAL, GAUGE ROLLER (NOT AVAILABLE)
Price unavailable
-15%
016
Honda
BOLT, FLANGE (10X28)90002-752-830
Required: 9
BOLT, FLANGE (10X28) (NOT AVAILABLE)
$2.50
You save $0.44
-20%
017
Honda
BOLT, WHEEL90110-VA4-000
Required: 1
BOLT, WHEEL
$3.20
You save $0.80
-15%
018
Honda
WASHER (10.5X27)90405-752-830
Required: 2
WASHER (10.5X27)
$9.04
You save $1.60
-15%
018
Honda
WASHER (10.5X27X4)90405-758-L00
Required: 2
WASHER (10.5X27X4)
$9.04
You save $1.60
019
Honda
COLLAR, GAUGE ROLLER (NOT AVAILABLE)90407-752-830
Required: 4
COLLAR, GAUGE ROLLER (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
WASHER (23X8.3X3.2)90430-657-000
Required: 1
WASHER (23X8.3X3.2)
$7.28
You save $1.28
-15%
021
Honda
WASHER (6MM)90473-896-000
Required: 1
WASHER (6MM)
$1.99
You save $0.35
-15%
022
Honda
WASHER (17.2MM)90532-750-000
Required: 1
WASHER, PLAIN (17.2MM)
$4.18
You save $0.74
-20%
023
Honda
BEARING, RADIAL BALL91055-752-831
Required: 3
BEARING, RADIAL BALL
In stock
Only 1 remaining
$17.76
You save $4.44
-15%
024
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 1
BOLT, FLANGE (6X12)
$1.73
You save $0.31
025
Honda
BOLT, FLANGE (10X16) (NA USE ALT: 95700-10016-08)95900-10016-08
Required: 2
BOLT, FLANGE (10X16) (NA USE ALT: 95700-10016-08)
Price unavailable
-20%
026
Honda
BEARING (6204UU)96150-62040-10
Required: 3
BEARING, RADIAL BALL (6204UU)
$20.83
You save $5.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
