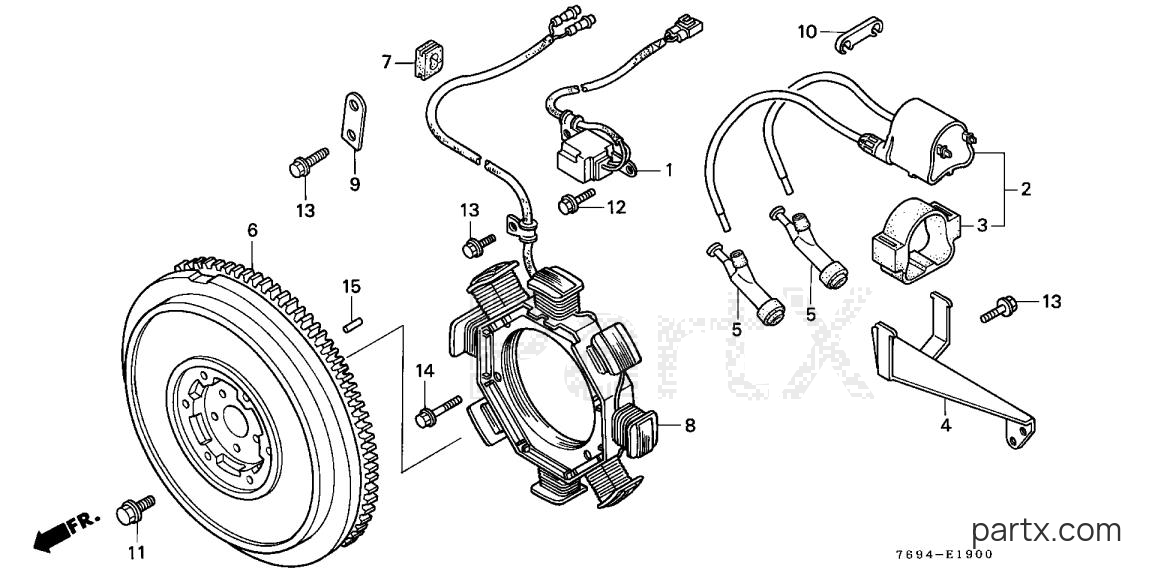

All Years Multi Purpose Tractor H - H5518 AC2/A FLYWHEEL diagram
001
Honda
COIL ASSY., PULSER (NOT AVAILABLE)30400-ZG8-003
Required: 1
COIL ASSY., PULSER (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
COIL ASSY., IGNITION30500-ZG8-003
Required: 1
COIL ASSY., IGNITION
$101.95
You save $18.01
-15%
003
Honda
SUSPENSION30506-ML4-003
Required: 1
SUSPENSION, IGNITION COIL
$6.36
You save $1.12
-15%
004
Honda
BRKT, IGNITION COIL30515-ZG8-000
Required: 1
BRACKET, IGNITION COIL
$17.51
You save $3.09
-20%
005
Honda
CAP ASSY.30700-ZE1-013
Required: 2
CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)
$18.50
You save $4.62
-15%
$384.20
You save $67.80
-15%
007
Honda
GROMMET, WIRE31512-ZE2-000
Required: 1
GROMMET, WIRE
$3.25
You save $0.57
-15%
008
Honda
COIL ASSY., CHARGE31630-ZG8-003
Required: 1
COIL ASSY., CHARGE
$308.75
You save $54.49
-15%
009
Honda
BRACKET32103-ZG8-000
Required: 1
BRACKET, WIRE HARNESS CLIP
$3.04
You save $0.54
-15%
010
Honda
CLAMP, WIRE32764-PA0-000
Required: 1
CLAMP, WIRE (NOT AVAILABLE)
$9.84
You save $1.74
-15%
011
Honda
BOLT, HEX. (10MM)90011-689-000
Required: 5
BOLT, HEX. (10MM)
$10.29
You save $1.81
-15%
012
Honda
BOLT, FLANGE (5X16)90012-892-000
Required: 2
BOLT, FLANGE (5X16)
$1.55
You save $0.27
-15%
013
Honda
BOLT (6X14) (CT200)90014-952-000
Required: 3
BOLT, FLANGE (6X14) (CT200)
$2.43
You save $0.43
-15%
014
Honda
BOLT, FLANGE (6X28)90123-VA4-800
Required: 4
BOLT, FLANGE (6X28)
$2.21
You save $0.39
-15%
015
Honda
PIN B, DOWEL (6X10)94302-06100
Required: 1
PIN B, DOWEL (6X10)
$2.33
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
