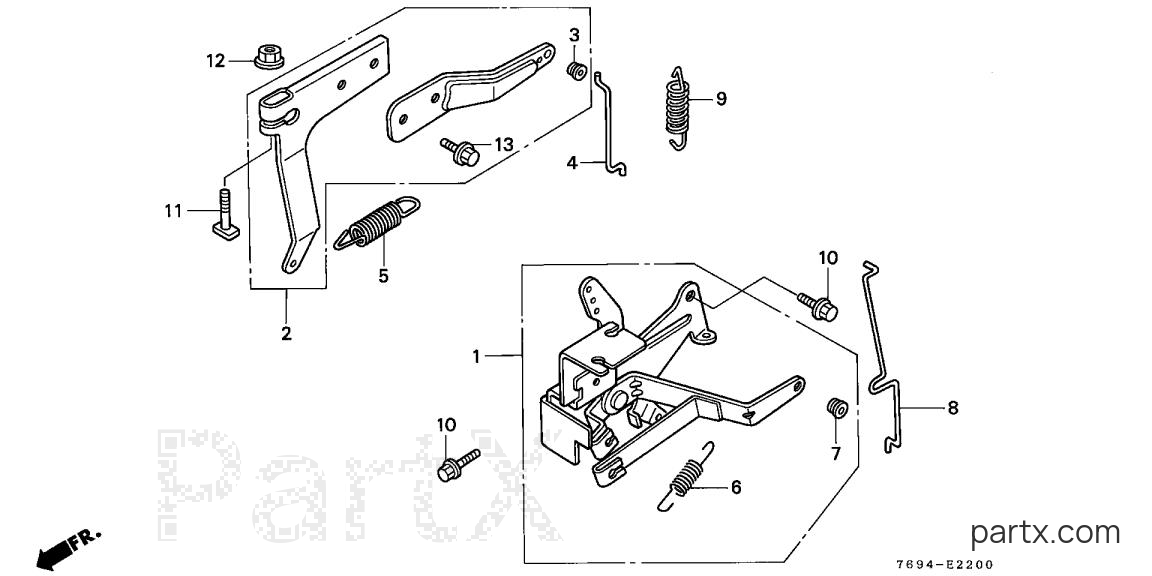

All Years Multi Purpose Tractor H - H5518 NAC2/A CONTROL diagram
001
Honda
CONTROL (NOT AVAILABLE)16501-ZG8-L10
Required: 1
CONTROL (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
ARM, GOVERNOR16550-ZG8-000
Required: 1
ARM, GOVERNOR
$41.65
You save $7.35
-15%
003
Honda
COLLAR, LEVER16552-896-650
Required: 1
COLLAR, LEVER
$2.48
You save $0.44
-15%
004
Honda
ROD, GOVERNOR16555-ZG8-000
Required: 1
ROD, GOVERNOR
$3.52
You save $0.62
-15%
005
Honda
SPRING (H=57)16561-ZG8-L10
Required: 1
SPRING, GOVERNOR (H=57)
$4.40
You save $0.78
-15%
006
Honda
SPRING16575-ZA0-700
Required: 1
SPRING, CONTROL LEVER RETURN
$3.52
You save $0.62
-15%
007
Honda
COLLAR, LEVER16576-ZA0-700
Required: 1
COLLAR, LEVER
$5.00
You save $0.88
-15%
$4.30
You save $0.76
009
Honda
SPRING, THROTTLE RETURN (NOT AVAILABLE)17842-ZG8-020
Required: 1
SPRING, THROTTLE RETURN (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
BOLT (6X14) (CT200)90014-952-000
Required: 2
BOLT, FLANGE (6X14) (CT200)
$2.43
You save $0.43
-15%
011
Honda
BOLT, GOVERNOR ARM90015-ZE3-790
Required: 1
BOLT, GOVERNOR ARM
$2.40
You save $0.42
-20%
012
Honda
NUT, FLANGE (6MM)94050-06000
Required: 1
NUT, FLANGE (6MM)
$0.66
You save $0.16
-20%
013
Honda
BOLT, FLANGE (6X8)95701-06008-00
Required: 1
BOLT, FLANGE (6X8)
In stock
Only 1 remaining
$3.38
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
