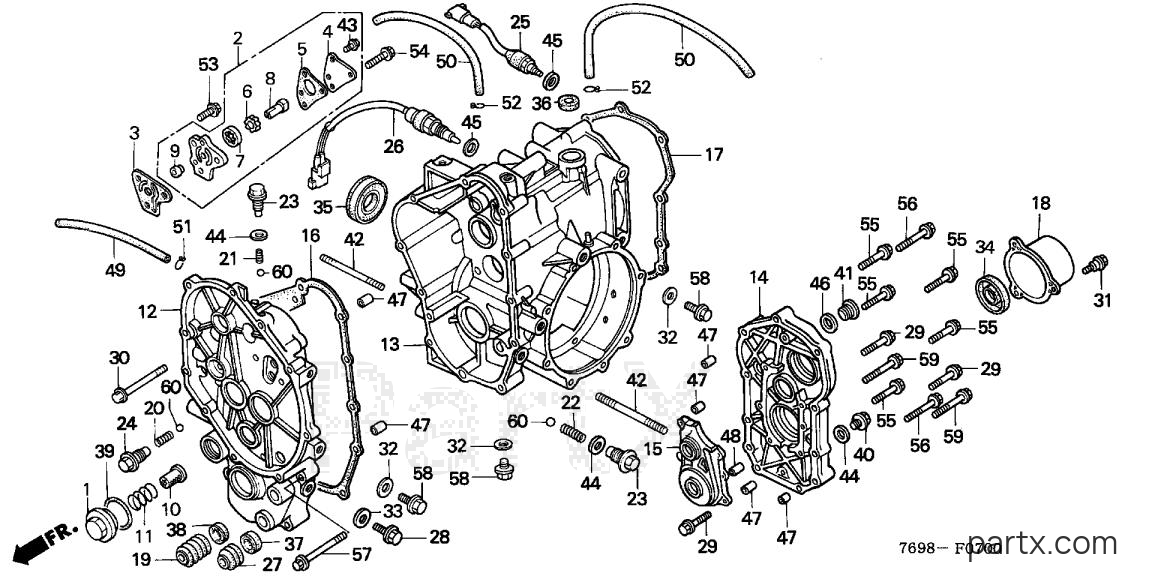

All Years Multi Purpose Tractor H - H5518 NA2/C TRANSMISSION CASE diagram
-15%
001
Honda
CAP, TAPT ADJ HOLE12361-383-000
Required: 1
CAP, TAPPET ADJUSTING HOLE
$7.33
You save $1.29
002
Honda
PUMP ASSY., OIL (NOT AVAILABLE)15100-769-000
Required: 1
PUMP ASSY., OIL (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
GSKT, OIL PUMP BODY15119-752-000
Required: 1
GASKET, OIL PUMP BODY (NOT AVAILABLE)
$2.19
You save $0.39
004
Honda
COVER, OIL PUMP (NOT AVAILABLE)15321-752-000
Required: 1
COVER, OIL PUMP (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
GSKT, OIL PUMP COVER15329-752-000
Required: 1
GASKET, OIL PUMP COVER
$1.90
You save $0.34
006
Honda
ROTOR, OIL PUMP (INNER) (YAMADA) (NOT AVAILABLE)15331-921-003
Required: 1
ROTOR, OIL PUMP (INNER) (YAMADA) (NOT AVAILABLE)
Price unavailable
007
Honda
ROTOR, OIL PUMP (OUTER) (YAMADA) (NOT AVAILABLE)15332-921-003
Required: 1
ROTOR, OIL PUMP (OUTER) (YAMADA) (NOT AVAILABLE)
Price unavailable
008
Honda
SHAFT, OIL PUMP DRIVE (NOT AVAILABLE)15382-769-000
Required: 1
SHAFT, OIL PUMP DRIVE (NOT AVAILABLE)
Price unavailable
009
Honda
PIN, OIL PUMP KNOCK (NOT AVAILABLE)15383-178-300
Required: 1
PIN, OIL PUMP KNOCK (NOT AVAILABLE)
Price unavailable
010
Honda
SCREEN, OIL FILTER15421-752-000
Required: 1
SCREEN, OIL FILTER
Price unavailable
-15%
011
Honda
SPRING15426-107-000
Required: 1
SPRING, OIL FILTER SCREEN
$4.15
You save $0.73
012
Honda
CASE, FR. TRANSMISSION (NOT AVAILABLE)21110-769-000
Required: 1
CASE, FR. TRANSMISSION (NOT AVAILABLE)
Price unavailable
013
Honda
CASE, RR. TRANSMISSION (NOT AVAILABLE)21210-752-020
Required: 1
CASE, RR. TRANSMISSION (NOT AVAILABLE)
Price unavailable
014
Honda
COVER, RR. TRANSMISSION (NOT AVAILABLE)21221-752-630
Required: 1
COVER, RR. TRANSMISSION (NOT AVAILABLE)
Price unavailable
015
Honda
CASE, P.T.O. REDUCTION (NOT AVAILABLE)21222-752-630
Required: 1
CASE, P.T.O. REDUCTION (NOT AVAILABLE)
Price unavailable
016
Honda
GASKET, TRANSMISSION CASE (NOT AVAILABLE)21281-752-000
Required: 1
GASKET, TRANSMISSION CASE (NOT AVAILABLE)
Price unavailable
017
Honda
GASKET, RR. COVER (NOT AVAILABLE)21282-752-000
Required: 1
GASKET, RR. COVER (NOT AVAILABLE)
Price unavailable
018
Honda
COVER, P.T.O. (NOT AVAILABLE)21511-752-630
Required: 1
COVER, P.T.O. (NOT AVAILABLE)
Price unavailable
019
Honda
BOOT, SHIFT SHAFT (NOT AVAILABLE)24343-752-003
Required: 1
BOOT, SHIFT SHAFT (NOT AVAILABLE)
Price unavailable
020
Honda
SPRING, SET BALL INTERLOCK (NOT AVAILABLE)24451-752-000
Required: 1
SPRING, SET BALL INTERLOCK (NOT AVAILABLE)
Price unavailable
021
Honda
SPRING, BALL SETTING (NOT AVAILABLE)24452-PA0-000
Required: 1
SPRING, BALL SETTING (NOT AVAILABLE)
Price unavailable
022
Honda
SPRING, BALL SETTING (NOT AVAILABLE)24452-679-000
Required: 1
SPRING, BALL SETTING (NOT AVAILABLE)
Price unavailable
-15%
023
Honda
SCREW24519-PB6-000
Required: 2
SCREW, BALL SPRING SETTING
$10.76
You save $1.90
024
Honda
SCREW, BALL SPRING SETTING (NOT AVAILABLE)24519-752-000
Required: 1
SCREW, BALL SPRING SETTING (NOT AVAILABLE)
Price unavailable
025
Honda
SWITCH ASSY., RR. P.T.O. (NOT AVAILABLE)35310-752-631
Required: 1
SWITCH ASSY., RR. P.T.O. (NOT AVAILABLE)
Price unavailable
026
Honda
SWITCH ASSY., NEUTRAL (NOT AVAILABLE)35600-752-003
Required: 1
SWITCH ASSY., NEUTRAL (NOT AVAILABLE)
Price unavailable
-15%
029
Honda
BOLT, FLANGE (8X40)90007-752-000
Required: 7
BOLT, FLANGE (8X40) (SEALING) (NOT AVAILABLE)
$3.79
You save $0.67
-15%
030
Honda
BOLT, FLANGE (8X45)90013-752-000
Required: 10
BOLT, FLANGE (8X45)
$3.55
You save $0.63
-15%
031
Honda
BOLT, SPECIAL (6MM)90122-752-000
Required: 3
BOLT, SPECIAL (6MM)
$2.77
You save $0.49
-15%
032
Honda
WASHER, PLAIN (10MM)90401-437-000
Required: 8
WASHER, PLAIN (10MM)
$2.91
You save $0.51
034
Honda
OIL SEAL (40X62X8) (NOT AVAILABLE)91201-752-630
Required: 1
OIL SEAL (40X62X8) (NOT AVAILABLE)
Price unavailable
035
Honda
OIL SEAL (26X48X7.8) (NOT AVAILABLE)91207-752-003
Required: 1
OIL SEAL (26X48X7.8) (NOT AVAILABLE)
Price unavailable
-15%
036
Honda
OIL SEAL (12X22X6)91253-706-003
Required: 1
OIL SEAL (12X22X6)
$10.57
You save $1.87
-15%
038
Honda
OIL SEAL91254-752-003
Required: 1
OIL SEAL (14X24X11.5) (NOT AVAILABLE)
$5.54
You save $0.98
-15%
039
Honda
O-RING (35X3)91303-107-000
Required: 1
O-RING (35X3)
$3.28
You save $0.58
-15%
039
Honda
O-RING (35X3)91303-KK3-830
Required: 1
O-RING (35X3) (ARAI)
$3.28
You save $0.58
-15%
040
Honda
BOLT, DRAIN (12MM)92800-12000
Required: 1
BOLT, DRAIN PLUG (12MM)
$4.01
You save $0.71
-15%
041
Honda
BOLT, DRAIN (20MM)92800-20000
Required: 1
BOLT, DRAIN PLUG (20MM)
$5.78
You save $1.02
-15%
042
Honda
BOLT, STUD (10X80)92900-10080-3B
Required: 8
BOLT, STUD (10X80)
$3.15
You save $0.56
-15%
043
Honda
SCREW-WASHER (5X10)93892-05010-08
Required: 2
SCREW-WASHER (5X10)
$1.19
You save $0.21
-15%
044
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 3
WASHER, DRAIN PLUG (12MM)
In stock
5+ in stock
$1.27
You save $0.23
-15%
045
Honda
WASHER, DRAIN (14MM)94109-14000
Required: 2
WASHER, DRAIN PLUG (14MM)
$0.66
You save $0.12
-15%
046
Honda
WASHER, DRAIN (20MM)94109-20000
Required: 1
WASHER, DRAIN PLUG (20MM)
In stock
5+ in stock
$1.44
You save $0.26
-15%
047
Honda
PIN, DOWEL (10X16)94301-10160
Required: 6
PIN, DOWEL (10X16)
$2.55
You save $0.45
-15%
048
Honda
PIN, DOWEL (8X14)94303-08140
Required: 1
PIN, DOWEL (8X14)
$2.33
You save $0.41
-15%
049
Honda
BULK HOSE (4.5X3000)95001-45003-60M
Required: 1
BULK HOSE, FUEL (4.5X3000) OEM CUT SIZE: (95001-450(95001-45001-60M)
$44.00
You save $7.76
-15%
050
Honda
BULK HOSE (5.5X3000)95001-55003-60M
Required: 2
BULK HOSE, FUEL (5.5X3000) OEM CUT SIZE: (5.5X380)
$56.78
You save $10.02
-15%
051
Honda
CLIP, TUBE (B8)95002-02080
Required: 1
CLIP, TUBE (B8)
In stock
Only 3 remaining
$1.87
You save $0.33
-15%
052
Honda
CLIP, TUBE (B10)95002-02100
Required: 2
CLIP, TUBE (B10)
$1.97
You save $0.35
-15%
053
Honda
BOLT, FLANGE (6X18)95701-06018-08
Required: 1
BOLT, FLANGE (6X18)
$1.68
You save $0.30
-15%
054
Honda
BOLT, FLANGE (6X25)95701-06025-08
Required: 2
BOLT, FLANGE (6X25)
$1.87
You save $0.33
-15%
055
Honda
BOLT, FLANGE (8X40)95701-08040-08
Required: 5
BOLT, FLANGE (8X40)
$2.36
You save $0.42
-15%
056
Honda
BOLT, FLANGE (8X50)95701-08050-08
Required: 2
BOLT, FLANGE (8X50)
$2.55
You save $0.45
-15%
057
Honda
BOLT, FLANGE (8X90)95701-08090-08
Required: 1
BOLT, FLANGE (8X90)
$3.15
You save $0.56
-15%
058
Honda
BOLT, FLANGE (10X25)95701-10025-08
Required: 8
BOLT, FLANGE (10X25)
$2.38
You save $0.42
-15%
059
Honda
BOLT, FLANGE (10X50)95701-10050-08
Required: 2
BOLT, FLANGE (10X50)
$2.69
You save $0.47
-15%
060
Honda
BALL (#10) (5/16)96211-10000
Required: 3
BALL, STEEL (#10) (5/16)
$1.38
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
