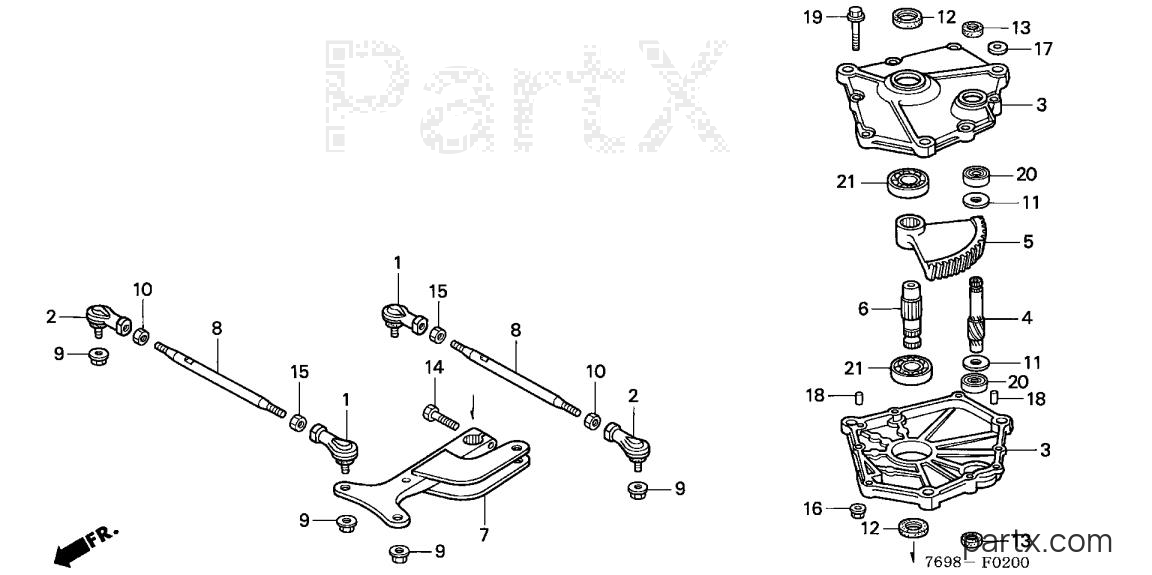

All Years Multi Purpose Tractor H - H5518 NA4/D STEERING GEAR diagram
001
Honda
JOINT, R. BALL (ER10) (NOT AVAILABLE)53167-752-003
Required: 2
JOINT, R. BALL (ER10) (NOT AVAILABLE)
Price unavailable
002
Honda
JOINT, L. BALL (ER10)53168-752-003
Required: 2
JOINT, L. BALL (ER10)
Price unavailable
003
Honda
CASE, STEERING GEAR (NOT AVAILABLE)53411-769-000
Required: 2
CASE, STEERING GEAR (NOT AVAILABLE)
Price unavailable
004
Honda
PINION, STEERING (NOT AVAILABLE)53421-769-000
Required: 1
PINION, STEERING (NOT AVAILABLE)
Price unavailable
005
Honda
GEAR, STEERING (NOT AVAILABLE)53423-769-000
Required: 1
GEAR, STEERING (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
SHAFT53431-769-000
Required: 1
SHAFT, STEERING SECTOR (NOT AVAILABLE)
$141.13
You save $24.91
007
Honda
ARM, PITMAN (NOT AVAILABLE)53445-769-000
Required: 1
ARM, PITMAN (NOT AVAILABLE)
Price unavailable
008
Honda
TIE ROD, FR. (NOT AVAILABLE)53521-752-B31
Required: 2
TIE ROD, FR. (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
NUT (10MM)90212-671-005
Required: 4
NUT, SELF-LOCK (10MM)
$0.94
You save $0.17
-15%
010
Honda
NUT, HEX. (10MM)90303-752-000
Required: 2
NUT, HEX. (10MM)
$2.82
You save $0.50
-15%
011
Honda
WASHER (15X1)90457-HB3-000
Required: 2
WASHER, THRUST (15X1)
$3.15
You save $0.56
-15%
012
Honda
DUST SEAL (37X25X6)91258-HB3-003
Required: 2
DUST SEAL (37X25X6)
$8.26
You save $1.46
-15%
013
Honda
DUST SEAL91262-MB2-005
Required: 2
DUST SEAL, CONNECTING ROD PIVOT
$4.37
You save $0.77
014
Honda
BOLT, HEX. (10X40) (NOT AVAILABLE)93301-10040-0H
Required: 1
BOLT, HEX. (10X40) (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
NUT, HEX. (10MM)94001-10080-0S
Required: 2
NUT, HEX. (10MM)
$1.50
You save $0.26
-20%
016
Honda
NUT, FLANGE (6MM)94050-06000
Required: 6
NUT, FLANGE (6MM)
$0.66
You save $0.16
-15%
017
Honda
WASHER, PLAIN (10MM)94103-10800
Required: 3
WASHER, PLAIN (10MM)
In stock
Only 1 remaining
$1.43
You save $0.25
-15%
018
Honda
PIN, DOWEL (5X8)94303-05080
Required: 2
PIN, DOWEL (5X8)
$2.33
You save $0.41
-15%
019
Honda
BOLT, FLANGE (6X40)95701-06040-00
Required: 6
BOLT, FLANGE (6X40)
$1.96
You save $0.35
-15%
020
Honda
BEARING (6202)96100-62020-10
Required: 2
BEARING, RADIAL BALL (6202)
$17.39
You save $3.07
-15%
021
Honda
BEARING (6205)96100-62050-10
Required: 2
BEARING, RADIAL BALL (6205)
$22.58
You save $3.98
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
