All diagrams for this model

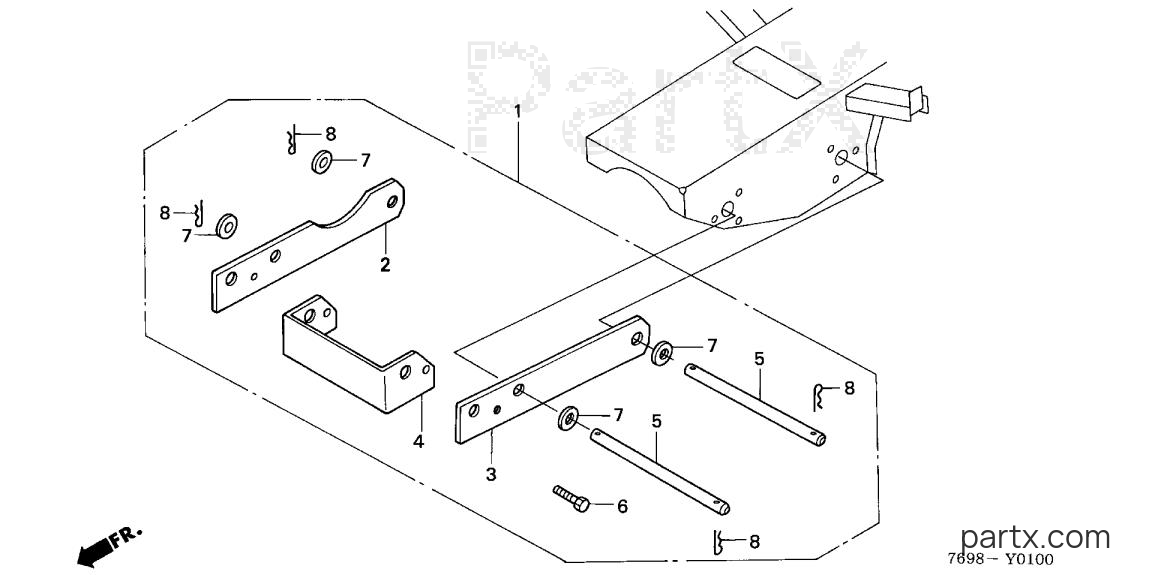

All Years Multi Purpose Tractor H - H5518 A4/A COUNTERWEIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda H5518 A4/A - COUNTERWEIGHT
Change View:
ADAPTER KIT, COUNTERWEIGHT (NOT AVAILABLE)
001
Honda
ADAPTER KIT, COUNTERWEIGHT (NOT AVAILABLE)06591-769-000
Required: 1
ADAPTER KIT, COUNTERWEIGHT (NOT AVAILABLE)
Price unavailable
-15%
BRACKET, R. FR.
002
Honda
BRACKET, R. FR.59111-769-M01
Required: 1
BRACKET, R. FR. END ADAPTER (SOURCE: VINTAGE PARTS INC.)
Cross Ship
Leaves in 2-5 days
$137.88
$117.20
You save $20.68
More details
-15%
BRACKET, L. FR.
003
Honda
BRACKET, L. FR.59112-769-M01
Required: 1
BRACKET, L. FR. END ADAPTER (SOURCE: VINTAGE PARTS INC.)
Cross Ship
Leaves in 2-5 days
$137.88
$117.20
You save $20.68
More details
-15%
BRACKET, FR. SUPPORT
004
Honda
BRACKET, FR. SUPPORT59113-769-M01
Required: 1
BRACKET, FR. SUPPORT (SOURCE: VINTAGE PARTS INC.)
Cross Ship
Leaves in 2-5 days
$48.16
$40.94
You save $7.22
More details
-15%
ROD, LIFT
005
Honda
ROD, LIFT59302-769-M01
Required: 2
ROD, LIFT
Cross Ship
Leaves in 2-5 days
$37.64
$31.99
You save $5.65
More details
-15%
BOLT, HEX. (12X40)
006
Honda
BOLT, HEX. (12X40)90109-769-M01
Required: 2
BOLT, HEX. (12X40)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
-15%
WASHER, FLAT (7/8") "
007
Honda
WASHER, FLAT (7/8") "90503-769-M01
Required: 4
WASHER, FLAT (7/8")
Cross Ship
Leaves in 2-5 days
$2.34
$1.99
You save $0.35
More details
-15%
PIN, COTTER (4X80)
008
Honda
PIN, COTTER (4X80)90761-771-S00
Required: 4
PIN, COTTER (4X80)
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
