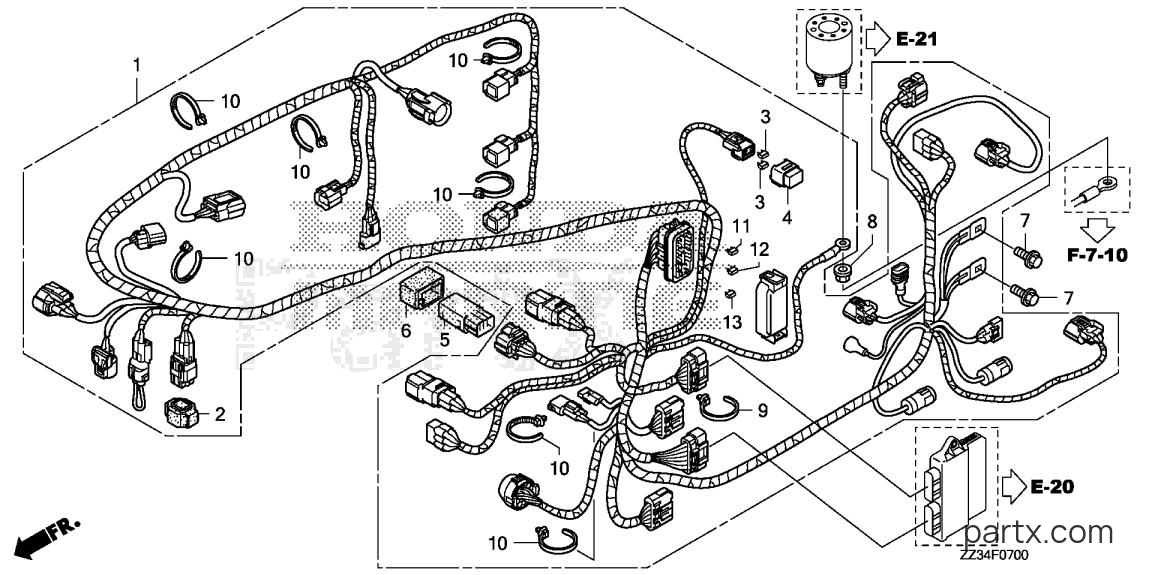

Pre 1997 Marine Engine BF - BF60A XRTA WIRE HARNESS diagram
-15%
001
Honda
WIRE HARNESS, MAIN32100-ZZ3-000
Required: 1
WIRE HARNESS ASSY., MAIN
$877.85
You save $154.91
-15%
002
Honda
SUSPENSION32127-ZZ3-000
Required: 1
SUSPENSION, CONNECTOR
$4.57
You save $0.81
-15%
003
Honda
FUSE, BLADE (40A)32501-KSV-J00
Required: 2
FUSE, BLADE (40A)
$1.27
You save $0.23
-15%
004
Honda
COVER, FUSE (40A)38216-ZZ3-003
Required: 1
COVER ASSY., FUSE (40A)
$6.12
You save $1.08
-15%
005
Honda
RELAY ASSY., MAIN38580-ZZ3-003
Required: 1
RELAY ASSY., MAIN
$47.84
You save $8.44
-15%
006
Honda
SUSPENSION, RELAY38586-ZZ5-003
Required: 1
SUSPENSION, RELAY
$4.08
You save $0.72
-50%
007
Honda
BOLT, FLANGE (6X12)90013-ZW9-000
Required: 2
BOLT, FLANGE (6X12)
In stock
Only 4 remaining
$0.98
You save $0.98
-15%
008
Honda
NUT-WASHER (8MM)90203-ZW1-000
Required: 1
NUT-WASHER (8MM)
$2.60
You save $0.46
-15%
009
Honda
CLIP (110MM)91507-SL9-003
Required: 1
CLIP, WIRE HARNESS (110MM) (7MM HOLE) (GREEN)
$7.26
You save $1.28
-15%
010
Honda
CLIP (145MM)91541-S0A-003
Required: 7
CLIP, HARNESS BAND (145MM) (BLACK)
$4.11
You save $0.73
-15%
011
Honda
FUSE, MINI (10A)98200-41000
Required: 4
FUSE, MINI (10A)
$1.38
You save $0.24
-15%
012
Honda
FUSE, MINI (15A)98200-41500
Required: 3
FUSE, MINI (15A)
$1.29
You save $0.23
-15%
013
Honda
FUSE, MINI (30A)98200-43000
Required: 2
FUSE, MINI (30A)
$1.82
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
