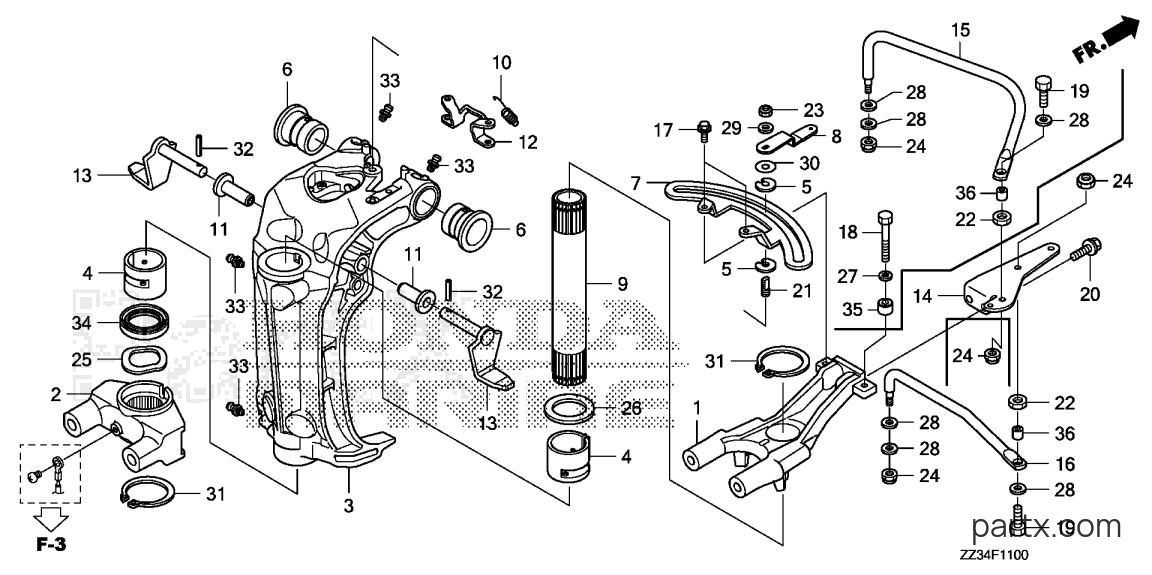

All Years Marine Engine BFP - BFP60A LRTA SWIVEL CASE diagram
-15%
001
Honda
FRAME, MOUNT50101-ZZ3-000
Required: 1
FRAME, MOUNT
$212.33
You save $37.47
-15%
002
Honda
HOUSING *NH282MU*50161-ZZ3-000ZB
Required: 1
HOUSING, CENTER MOUNTING (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
$127.26
You save $22.46
-15%
003
Honda
CASE *NH282MU*50201-ZZ3-000ZB
Required: 1
CASE, SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U)
$295.80
You save $52.20
-15%
004
Honda
LINER, SWIVEL CASE50211-ZZ5-000
Required: 2
LINER, SWIVEL CASE
$6.78
You save $1.20
-15%
006
Honda
BUSH, SWIVEL CASE50214-ZW1-000
Required: 2
BUSH, SWIVEL CASE
$10.87
You save $1.92
-15%
009
Honda
SHAFT, SWIVEL50417-ZZ3-000
Required: 1
SHAFT, SWIVEL
$161.40
You save $28.48
-15%
010
Honda
SPRING, TILT LEVER50515-ZV5-000
Required: 1
SPRING, TILT LEVER
$3.65
You save $0.65
-50%
011
Honda
BUSH, TILT ARM50522-ZV5-000
Required: 2
BUSH, TILT ARM
In stock
Only 1 remaining
$3.80
You save $3.80
-15%
012
Honda
BRACKET, TILTING50527-ZV5-000
Required: 1
BRACKET, TILTING
$11.97
You save $2.11
-15%
013
Honda
STOPPER, TILT50529-ZW4-H00
Required: 2
STOPPER, TILT
$55.98
You save $9.88
-15%
013
Honda
STOPPER, TILT50529-ZZ3-000
Required: 2
STOPPER, TILT
$49.32
You save $8.70
-15%
014
Honda
PLATE, STEERING53234-ZZ3-000
Required: 1
PLATE, STEERING
$70.46
You save $12.44
-15%
015
Honda
ROD, STEERING53238-ZZ3-000
Required: 1
ROD, STEERING
$188.41
You save $33.25
-15%
016
Honda
ROD, STEERING53238-ZZ3-610
Required: 1
ROD, STEERING
$83.89
You save $14.81
-15%
018
Honda
BOLT, HEX. (6X35)90113-ZV0-000
Required: 1
BOLT, HEX. (6X35)
$4.30
You save $0.76
-15%
019
Honda
BOLT (3/8-24UNF)90117-ZY3-000
Required: 1
BOLT (3/8-24UNF)
$4.28
You save $0.76
-15%
020
Honda
BOLT, FLANGE (10X25)90154-ZW9-000
Required: 2
BOLT, FLANGE (10X25)
$3.47
You save $0.61
-15%
022
Honda
NUT (3/8-24UNF)90302-ZV5-000
Required: 1
NUT (3/8-24UNF)
$9.79
You save $1.73
-15%
024
Honda
NUT (3/8-24UNF)90307-ZV5-003
Required: 2
NUT, SELF-LOCK (3/8-24UNF)
$7.31
You save $1.29
-15%
025
Honda
WASHER, WAVE (40MM)90501-ZV5-000
Required: 1
WASHER, WAVE (40MM)
$8.25
You save $1.46
-15%
026
Honda
WASHER (34MM)90504-ZV5-000
Required: 1
WASHER, THRUST (34MM)
$8.25
You save $1.46
-15%
027
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 1
WASHER, PLAIN (6MM)
$2.77
You save $0.49
-15%
028
Honda
WASHER (10MM)90514-ZV4-000
Required: 3
WASHER (10MM)
$1.92
You save $0.34
-15%
031
Honda
CIRCLIP (39MM)90651-ZW4-000
Required: 2
CIRCLIP (OUTER) (39MM)
$5.98
You save $1.06
-15%
032
Honda
PIN, SPRING (2.5X20)90752-ZW6-000
Required: 2
PIN, SPRING (2.5X20)
$2.60
You save $0.46
-50%
033
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 4
NIPPLE, GREASE
In stock
Only 3 remaining
$1.26
You save $1.26
-15%
034
Honda
OIL SEAL (39.5X52X6)91256-ZV5-003
Required: 1
OIL SEAL (39.5X52X6) (ARAI)
$8.81
You save $1.55
-15%
035
Honda
COLLAR (6.5X16X14.5)91555-ZZ3-000
Required: 1
COLLAR, DISTANCE (6.5X16X14.5)
$10.81
You save $1.91
-50%
036
Honda
COLLAR, STEERING ROD91560-ZV5-000
Required: 1
COLLAR, STEERING ROD
In stock
Only 1 remaining
$2.04
You save $2.04
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
