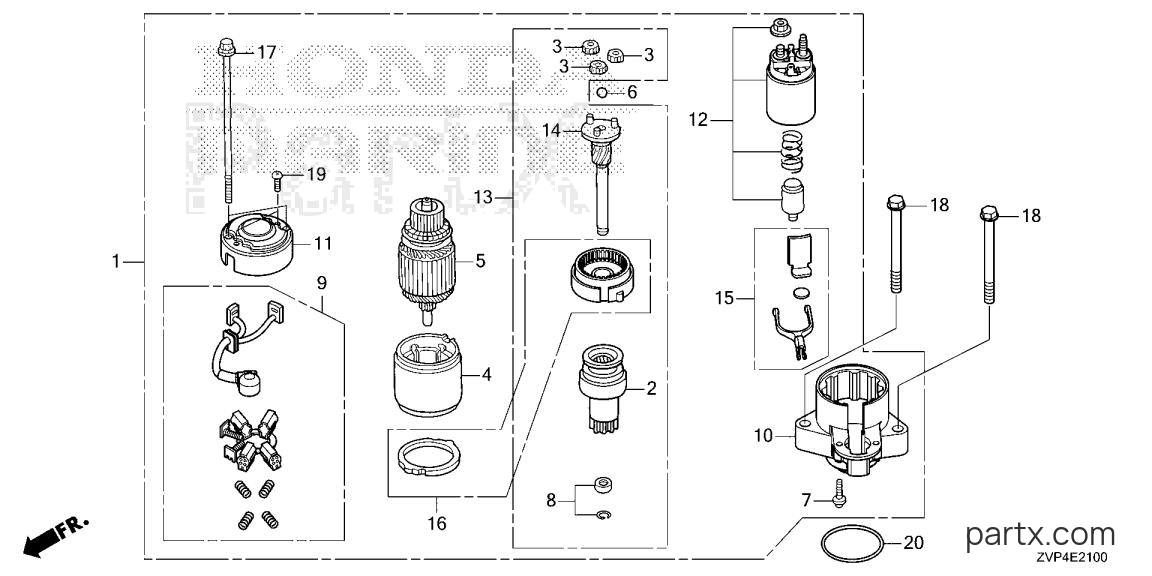

Pre 1997 Marine Engine BF - BF350A XDA STARTER MOTOR diagram
-15%
001
Honda
STARTER MOTOR ASSY.31200-ZVP-003
Required: 1
STARTER MOTOR ASSY.
$540.16
You save $95.32
-15%
002
Honda
CLUTCH, OVERRUNNING31207-ZY9-H01
Required: 1
CLUTCH, OVERRUNNING
$229.81
You save $40.55
-15%
003
Honda
GEAR, PLANETARY31215-ZVP-003
Required: 3
GEAR ASSY., PLANETARY
$16.01
You save $2.83
-15%
$125.23
You save $22.10
-15%
$181.47
You save $32.02
-15%
006
Honda
BALL, STEEL31218-PY3-004
Required: 1
BALL, STEEL
$3.62
You save $0.64
-15%
007
Honda
SCREW, PAN (6X22)31226-ZY9-H01
Required: 2
SCREW, PAN (6X22)
$2.46
You save $0.44
-15%
008
Honda
STOPPER SET, SLEEVE31229-ZY9-H01
Required: 1
STOPPER SET, SLEEVE
$17.00
You save $3.00
-15%
009
Honda
HOLDER, BRUSH31232-ZVP-003
Required: 1
HOLDER, BRUSH
$55.93
You save $9.87
-15%
010
Honda
BRACKET, FR.31235-ZVP-003
Required: 1
BRACKET, FR.
$104.13
You save $18.38
-15%
011
Honda
BRACKET, RR.31236-ZY3-003
Required: 1
BRACKET, RR.
$39.56
You save $6.98
-15%
012
Honda
SWITCH ASSY., MAGNET31240-ZVP-003
Required: 1
SWITCH ASSY., MAGNET
$208.64
You save $36.82
-15%
013
Honda
SHAFT ASSY., CLUTCH31242-ZVP-003
Required: 1
SHAFT ASSY., CLUTCH
$344.91
You save $60.87
-15%
014
Honda
SHAFT ASSY., GEAR31246-ZVP-003
Required: 1
SHAFT ASSY., GEAR
$111.91
You save $19.75
-15%
$13.60
You save $2.40
-15%
016
Honda
GEAR ASSY. (INNER)31251-ZVP-003
Required: 1
GEAR ASSY. (INNER)
$39.76
You save $7.02
-15%
017
Honda
BOLT, THROUGH31261-ZVP-003
Required: 2
BOLT, THROUGH
$4.18
You save $0.74
-15%
018
Honda
BOLT, FLG (10X110)90003-ZVL-010
Required: 2
BOLT, FLANGE (10X110)
$5.92
You save $1.04
-15%
019
Honda
SCREW, PAN (5X8)90107-ZW1-004
Required: 2
SCREW, PAN (5X8)
$2.75
You save $0.49
-15%
020
Honda
O-RING (59.4X3.1)91303-ZVT-000
Required: 1
O-RING (59.4X3.1)
$6.24
You save $1.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
