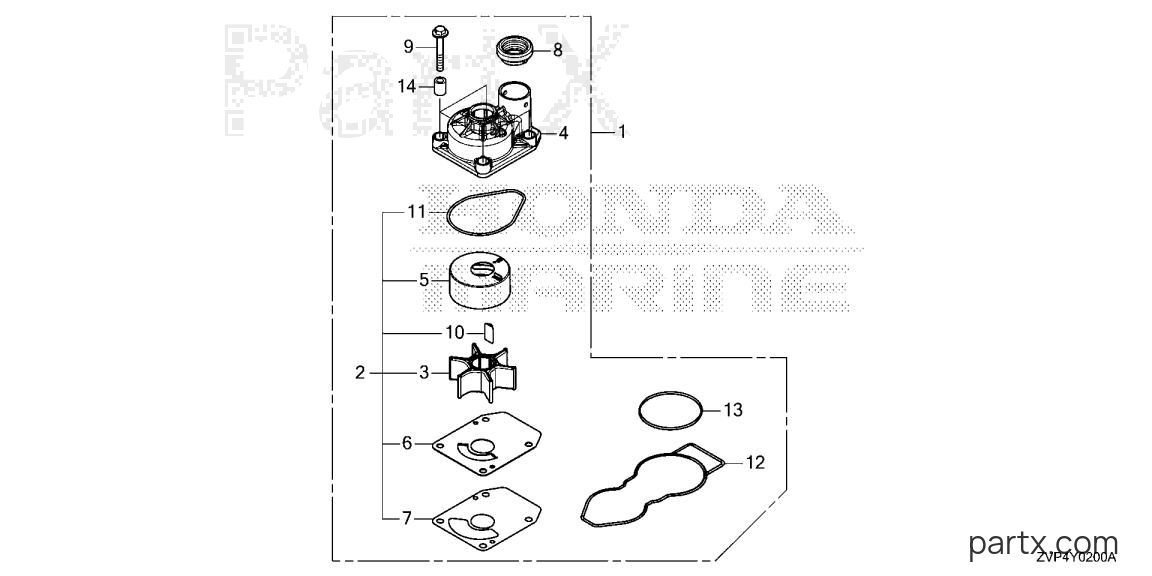

Pre 1997 Marine Engine BF - BF350A XCDA PUMP IMPELLER KIT diagram
-15%
001
Honda
PUMP KIT, IMPELLER06192-ZVP-000
Required: 1
PUMP KIT, IMPELLER (A)
$167.59
You save $29.57
-15%
002
Honda
PUMP KIT, IMPELLER06193-ZVP-010
Required: 1
PUMP KIT, IMPELLER (B)
$106.44
You save $18.78
-15%
003
Honda
IMPELLER, PUMP19210-ZVP-003
Required: 1
IMPELLER, PUMP
$40.97
You save $7.23
-15%
004
Honda
HOUSING, IMPELLER19221-ZVP-000
Required: 1
HOUSING, IMPELLER
$33.30
You save $5.88
-15%
005
Honda
LINER, WATER PUMP19223-ZVP-000
Required: 1
LINER, WATER PUMP
$40.68
You save $7.18
-15%
006
Honda
COVER, IMPELLER19231-ZVP-000
Required: 1
COVER, IMPELLER
$12.58
You save $2.22
-15%
007
Honda
GASKET B, IMPELLER19234-ZVP-000
Required: 1
GASKET B, IMPELLER
$4.56
You save $0.80
-15%
008
Honda
RING19253-ZVP-000
Required: 1
RING, WATER TUBE SEAL
$5.10
You save $0.90
-15%
009
Honda
BOLT-WASHER (8X60)90105-ZX2-C00
Required: 4
BOLT-WASHER (8X60)
$9.49
You save $1.67
-15%
010
Honda
KEY, WOODRUFF90752-ZVP-000
Required: 1
KEY, WOODRUFF
$26.47
You save $4.67
-15%
011
Honda
O-RING, WATER PUMP91356-ZY3-003
Required: 1
O-RING, WATER PUMP
$8.33
You save $1.47
-15%
012
Honda
O-RING, HOUSING PUMP91358-ZVP-000
Required: 1
O-RING, HOUSING PUMP
$7.80
You save $1.38
-15%
013
Honda
O-RING (79.4X2.4)91359-ZVP-000
Required: 1
O-RING (79.4X2.4)
$4.88
You save $0.86
-15%
014
Honda
COLLAR, DISTANCE91551-ZY3-000
Required: 4
COLLAR, DISTANCE
$2.40
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
