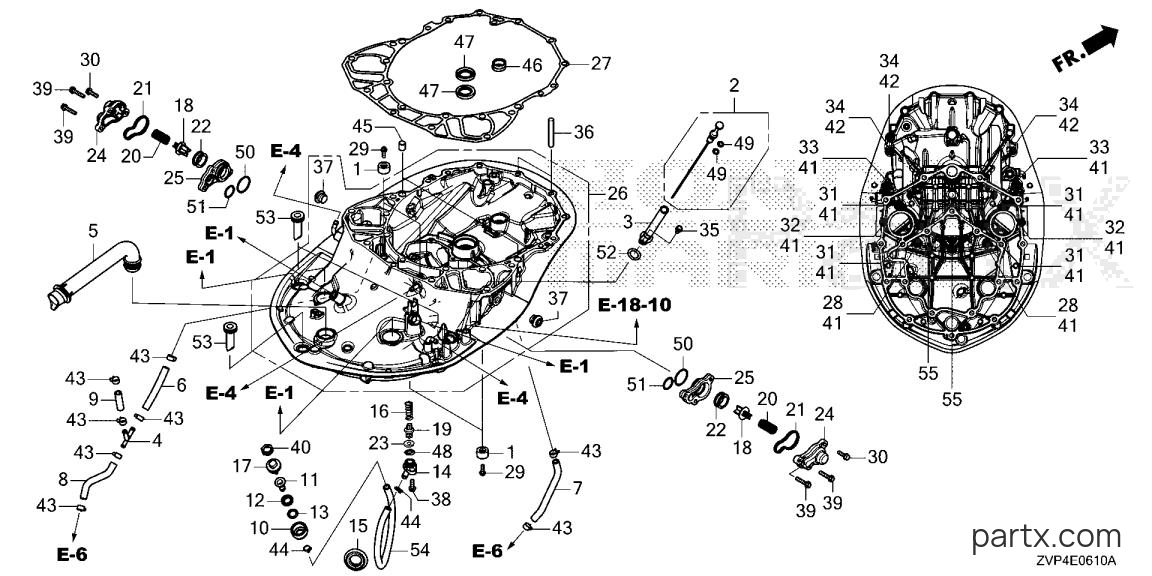

Pre 1997 Marine Engine BF - BF350A UDA MOUNT CASE diagram
-20%
001
Honda
METAL, ANODE12155-ZV5-010
Required: 4
METAL, ANODE
In stock
Only 5 remaining
$10.14
You save $2.54
-15%
002
Honda
DIPSTICK, OIL15655-ZVP-000
Required: 1
DIPSTICK, OIL
$11.59
You save $2.05
-15%
003
Honda
PIPE, OIL LEVEL15665-ZVP-000
Required: 1
PIPE, OIL LEVEL
$23.36
You save $4.12
-15%
004
Honda
JOINT, FUEL TUBE16959-MY1-000
Required: 1
JOINT, FUEL TUBE
$19.55
You save $3.45
-15%
005
Honda
PORT, IDLE EX.18211-ZVP-010
Required: 1
PORT, IDLE EX.
$28.30
You save $5.00
-15%
006
Honda
TUBE, FLUSH VALVE19264-ZVP-000
Required: 1
TUBE, FLUSH VALVE
$6.61
You save $1.17
-15%
007
Honda
TUBE, R.19265-ZVP-000
Required: 1
TUBE, R. OIL CASE COVER
$7.85
You save $1.39
-15%
008
Honda
TUBE, L.19266-ZVP-000
Required: 1
TUBE, L. OIL CASE COVER (A)
$7.28
You save $1.28
-15%
009
Honda
TUBE, L.19267-ZVP-000
Required: 1
TUBE, L. OIL CASE COVER B
$3.15
You save $0.56
-15%
010
Honda
NUT, WATER MOUTH19270-ZY3-000
Required: 1
NUT, WATER MOUTH
$14.72
You save $2.60
-15%
011
Honda
JOINT, WATER HOSE19271-ZY3-000
Required: 1
JOINT, WATER HOSE
$10.00
You save $1.76
-15%
012
Honda
SEAT, WATER MOUTH19272-ZY3-000
Required: 1
SEAT, WATER MOUTH
$4.57
You save $0.81
-15%
013
Honda
SEAT, WATER JOINT19274-ZVL-000
Required: 1
SEAT, WATER JOINT
$1.78
You save $0.32
-15%
014
Honda
COVER, FLUSH VALVE19277-ZY9-M01
Required: 1
COVER, FLUSH VALVE
$12.63
You save $2.23
-15%
015
Honda
GROMMET, WATER TUBE19279-ZVP-000
Required: 1
GROMMET, WATER TUBE
$6.56
You save $1.16
-20%
016
Honda
SPRING, FLUSH VALVE19279-ZW9-010
Required: 1
SPRING, FLUSH VALVE
$1.68
You save $0.42
-15%
017
Honda
CAP, WATER JOINT19289-ZY3-000
Required: 1
CAP, WATER JOINT
$3.33
You save $0.59
-15%
018
Honda
VALVE, RELIEF19291-ZW5-000
Required: 2
VALVE, RELIEF
$8.30
You save $1.46
-20%
019
Honda
VALVE, FLASH19291-ZW9-000
Required: 1
VALVE, FLASH
$6.27
You save $1.57
-15%
020
Honda
SPRING, RELIEF VALVE19292-ZW5-000
Required: 2
SPRING, RELIEF VALVE
$4.74
You save $0.84
-15%
021
Honda
GASKET19296-ZVP-000
Required: 2
GASKET, RELIEF VALVE COVER
$3.89
You save $0.69
-15%
022
Honda
GASKET, RELIEF VALVE19297-ZW5-000
Required: 2
GASKET, RELIEF VALVE
$7.11
You save $1.25
-20%
023
Honda
GASKET, FLASH VALVE19297-ZW9-010
Required: 1
GASKET, FLASH VALVE
In stock
Only 1 remaining
$1.63
You save $0.41
-15%
024
Honda
CVR, L. RELIEF VALVE19297-ZY3-000
Required: 2
COVER, L. RELIEF VALVE
$18.96
You save $3.34
-15%
025
Honda
SPACER, L. *TGRAY*19298-ZY3-000ZB
Required: 2
SPACER, L. RELIEF VALVE *TGRAY*(GRAY)
$60.38
You save $10.66
-15%
026
Honda
CASE, MOUNT23170-ZVP-000
Required: 1
CASE, MOUNT
$965.17
You save $170.33
-15%
027
Honda
GASKET, MOUNT CASE23172-ZVP-005
Required: 1
GASKET, MOUNT CASE
$120.33
You save $21.23
-15%
028
Honda
BOLT, HEX. (12X100)90001-ZVP-000
Required: 2
BOLT, HEX. (12X100)
$14.43
You save $2.55
-15%
029
Honda
BOLT, FLANGE (6X18)90004-ZX2-000
Required: 4
BOLT, FLANGE (6X18)
$2.13
You save $0.38
-15%
030
Honda
BOLT, FLANGE (6X23)90009-ZW9-000
Required: 2
BOLT, FLANGE (6X23)
$3.25
You save $0.57
-15%
031
Honda
BOLT, HEX. (12X175)90010-ZVP-000
Required: 4
BOLT, HEX. (12X175)
$25.01
You save $4.41
-15%
032
Honda
BOLT, HEX. (12X55)90011-ZVP-000
Required: 2
BOLT, HEX. (12X55)
$8.26
You save $1.46
-15%
033
Honda
BOLT, HEX. (12X65)90011-ZY3-000
Required: 2
BOLT, HEX. (12X65)
$14.45
You save $2.55
-15%
034
Honda
BOLT, HEX. (10X60)90015-ZY3-000
Required: 3
BOLT, HEX. (10X60)
$9.52
You save $1.68
-20%
035
Honda
BOLT, FLANGE (6X14)90021-ZZ5-M01
Required: 1
BOLT, FLANGE (6X14)
$1.22
You save $0.30
-15%
036
Honda
BOLT, STUD (10X50)90045-ZVP-000
Required: 2
BOLT, STUD (10X50)
$3.38
You save $0.60
-15%
037
Honda
BOLT, SEALING (18MM)90083-ZVP-000
Required: 2
BOLT, SEALING (18MM)
$8.26
You save $1.46
-15%
038
Honda
BOLT, FLANGE (6X20)90105-ZW9-000
Required: 1
BOLT, FLANGE (6X20)
$3.25
You save $0.57
-15%
039
Honda
BOLT-WASHER (6X35)90109-ZVA-000
Required: 4
BOLT-WASHER (6X35)
$3.32
You save $0.58
-15%
040
Honda
NUT, HEX. (16MM)90302-921-000
Required: 1
NUT, HEX. (16MM)
$4.64
You save $0.82
-20%
041
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 10
WASHER, PLAIN (12MM)
$3.14
You save $0.78
-15%
042
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 3
WASHER, PLAIN (10MM)
$2.75
You save $0.49
-15%
043
Honda
CLAMP, TUBE (D12.5)90601-ZVL-000
Required: 8
CLAMP, TUBE (D12.5)
$1.73
You save $0.31
-15%
044
Honda
CLIP B1, TUBE90651-ZY6-000
Required: 2
CLIP B1, TUBE
In stock
Only 4 remaining
$4.20
You save $0.74
-15%
045
Honda
PIN, DOWEL (14X15)90701-PW5-000
Required: 2
PIN, DOWEL (14X15)
$5.24
You save $0.92
-15%
046
Honda
BEARING (20X28X13)91001-ZY3-003
Required: 1
BEARING, NEEDLE (20X28X13) (SOLID)
$40.66
You save $7.18
-15%
047
Honda
OIL SEAL (25X40X7)91204-ZV5-005
Required: 2
OIL SEAL (25X40X7)
$12.68
You save $2.24
-20%
048
Honda
O-RING (16MM)91303-800-000
Required: 1
O-RING (16MM)
In stock
Only 1 remaining
$2.18
You save $0.54
-15%
049
Honda
O-RING (8.8X1.9)91303-ZVL-000
Required: 2
O-RING (8.8X1.9)
$0.82
You save $0.14
-15%
050
Honda
O-RING (33.5X2)91305-ZY3-003
Required: 2
O-RING (33.5X2)
$3.09
You save $0.55
-15%
051
Honda
O-RING (23.5X2)91306-ZY3-003
Required: 2
O-RING (23.5X2)
$3.77
You save $0.67
-15%
052
Honda
O-RING (15.5X3.5)91309-ZVT-000
Required: 1
O-RING (15.5X3.5)
$1.09
You save $0.19
-15%
053
Honda
GROMMET (1WAY)91601-ZVP-000
Required: 3
GROMMET (1WAY)
$8.35
You save $1.47
-15%
054
Honda
BULK HOSE (8X1000)95001-80001-60M
Required: 1
BULK HOSE, FUEL (8X1000) OEM CUT SIZE: (8X420)
$28.70
You save $5.06
-15%
055
Honda
BOLT, FLANGE (10X80)96300-10080-09
Required: 2
BOLT, FLANGE (10X80) (DR)
$1.63
You save $0.29
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
