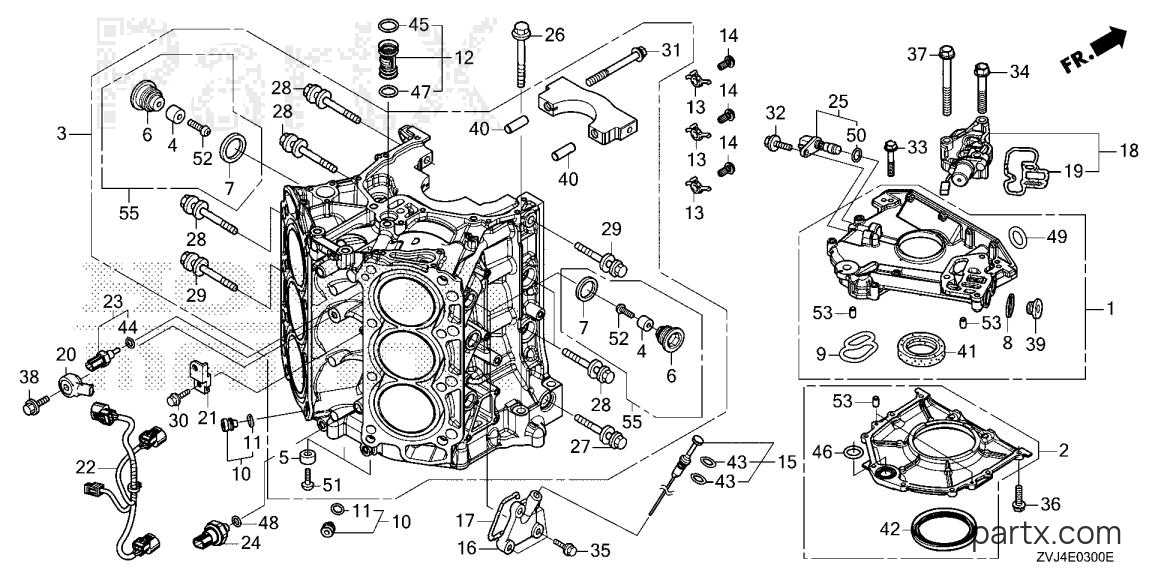

Pre 1997 Marine Engine BF - BF200D XCDA CYLINDER BLOCK diagram
-15%
001
Honda
CVR, CRANKCASE11200-ZVL-010
Required: 1
COVER ASSY., CRANKCASE (UPPER)
$327.40
You save $57.78
-15%
002
Honda
CASE ASSY., OIL SEAL11300-ZY3-C00
Required: 1
CASE ASSY., OIL SEAL
$101.46
You save $17.90
-15%
003
Honda
BLOCK ASSY. *NH8*12000-ZVL-020ZA
Required: 1
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY)
$2673.88
You save $471.86
-15%
004
Honda
METAL, ANODE12155-ZV4-A01
Required: 6
METAL, ANODE
$12.33
You save $2.18
-15%
005
Honda
METAL, ANODE12155-ZY3-010
Required: 2
METAL, ANODE
$9.35
You save $1.65
-15%
006
Honda
BOLT, SEALING (22MM)12164-ZY3-000
Required: 6
BOLT, SEALING (22MM)
$17.09
You save $3.02
-15%
007
Honda
WASHER (22MM)12171-ZY3-305
Required: 6
WASHER, SEALING (22MM)
$3.03
You save $0.53
-15%
008
Honda
22MM SEALING WASHER12214-ZV5-000
Required: 1
WASHER, SEALING (22MM)
$3.30
You save $0.58
-15%
009
Honda
GASKET, OIL HOLE15115-P8A-A01
Required: 1
GASKET, OIL HOLE
$5.35
You save $0.95
-15%
010
Honda
ORIFICE, OIL CONTROL15140-P8A-A00
Required: 2
ORIFICE ASSY., OIL CONTROL
$15.10
You save $2.66
-15%
011
Honda
O-RING (8.8X2.4)15142-P8A-A00
Required: 2
O-RING (8.8X2.4)
$4.01
You save $0.71
-15%
012
Honda
JOINT, OIL PIPE15150-P8A-A00
Required: 1
JOINT ASSY., OIL PIPE
$38.40
You save $6.78
-15%
013
Honda
BODY, OIL JET15280-R70-A00
Required: 3
BODY, OIL JET
$30.84
You save $5.44
-15%
014
Honda
BOLT, OIL JET15290-RJA-000
Required: 3
BOLT, OIL JET
$36.63
You save $6.47
-15%
015
Honda
DIPSTICK, OIL15655-ZVL-B10
Required: 1
DIPSTICK, OIL
$12.04
You save $2.12
-15%
016
Honda
COVER, O/GA15656-ZVL-000
Required: 1
COVER, OIL LEVEL GAUGE
$34.10
You save $6.02
-15%
017
Honda
GASKET, O/GA15657-ZY3-000
Required: 1
GASKET, OIL LEVEL GAUGE
$7.97
You save $1.41
-15%
018
Honda
VALVE, SPOOL *NH8*15810-ZY2-000ZA
Required: 1
VALVE ASSY., SPOOL *NH8*(DARK GRAY)
$215.73
You save $38.07
-15%
019
Honda
FILTER, SPOOL VALVE15825-ZY2-000
Required: 1
FILTER ASSY., SPOOL VALVE
$12.99
You save $2.29
-15%
020
Honda
SENSOR, KNOCK30530-R1A-A01
Required: 1
SENSOR, KNOCK
$200.63
You save $35.41
-15%
021
Honda
BRACKET D32116-ZVP-000
Required: 1
BRACKET D, HARNESS CLIP
$4.27
You save $0.75
-15%
022
Honda
WIRE, SWITCH32193-ZVL-B10
Required: 1
WIRE, SWITCH
$31.11
You save $5.49
-15%
023
Honda
SENSOR, WATER TEMP35673-ZY3-003
Required: 1
SENSOR ASSY., WATER TEMPERATURE
$25.57
You save $4.51
-15%
024
Honda
SENSOR, OIL PRESSURE37260-ZVP-003
Required: 1
SENSOR, OIL PRESSURE
$112.86
You save $19.92
-15%
025
Honda
SENSOR ASSY., CRANK37500-PNB-003
Required: 1
SENSOR ASSY., CRANK
$186.54
You save $32.92
-15%
026
Honda
BOLT, FLANGE (12X95)90001-ZVL-010
Required: 2
BOLT, FLANGE (12X95)
$4.62
You save $0.82
-15%
027
Honda
BOLT-WASHER (10X109)90006-ZVL-013
Required: 1
BOLT-WASHER (10X109)
$4.79
You save $0.85
-15%
028
Honda
BOLT-WASHER (10X60)90008-ZVL-013
Required: 5
BOLT-WASHER (10X60)
$3.84
You save $0.68
-15%
029
Honda
BOLT-WASHER (10X80)90009-ZVL-013
Required: 2
BOLT-WASHER (10X80)
$4.86
You save $0.86
-20%
030
Honda
BOLT, FLANGE (6X14)90021-ZZ5-M01
Required: 1
BOLT, FLANGE (6X14)
$1.22
You save $0.30
-15%
031
Honda
BOLT-WASHER (11X105)90014-RCA-A01
Required: 8
BOLT-WASHER (11X105)
$5.07
You save $0.89
-20%
032
Honda
BOLT, FLANGE (6X16)90017-ZZ5-M01
Required: 1
BOLT, FLANGE (6X16)
$1.33
You save $0.33
-15%
033
Honda
BOLT, FLANGE (6X35)90019-ZZ5-M01
Required: 7
BOLT, FLANGE (6X35)
$2.55
You save $0.45
-15%
034
Honda
BOLT, FLANGE (8X50)90020-ZVL-010
Required: 2
BOLT, FLANGE (8X50)
$1.41
You save $0.25
-15%
035
Honda
BOLT, FLANGE (6X18)90028-ZVL-010
Required: 4
BOLT, FLANGE (6X18)
$0.92
You save $0.16
-15%
036
Honda
BOLT, FLANGE (6X22)90030-ZZ5-M01
Required: 8
BOLT, FLANGE (6X22)
$1.48
You save $0.26
-15%
037
Honda
BOLT, FLANGE (8X75)90038-ZVL-010
Required: 1
BOLT, FLANGE (8X75)
$1.44
You save $0.26
-20%
038
Honda
BOLT, FLANGE (8X35)90054-ZY9-M01
Required: 1
BOLT, FLANGE (8X35)
$1.84
You save $0.46
-15%
039
Honda
BOLT, SEALING (22MM)90081-ZZ5-M01
Required: 1
BOLT, SEALING (22MM)
$5.10
You save $0.90
-15%
040
Honda
PIN, DOWEL (13X37)90715-PH7-000
Required: 8
PIN, DOWEL (13X37)
$6.39
You save $1.13
-15%
041
Honda
OIL SEAL (41X66X8)91212-ZY3-003
Required: 1
OIL SEAL (41X66X8)
$14.93
You save $2.63
042
Honda
OIL SEAL (80X98X10) (ARAI)91214-PNA-014
Required: 1
OIL SEAL (80X98X10) (ARAI)
Price unavailable
-15%
042
Honda
OIL SEAL (80X98X10)91214-RNB-A01
Required: 1
OIL SEAL (80X98X10) (ARAI)
$19.96
You save $3.52
-15%
043
Honda
O-RING (8.8X1.9)91303-ZVL-000
Required: 2
O-RING (8.8X1.9)
$0.82
You save $0.14
-15%
044
Honda
O-RING (9.5X1.9)91307-PNA-003
Required: 1
O-RING (9.5X1.9)
$2.28
You save $0.40
-15%
045
Honda
O-RING (18.3X3.5)91308-P8A-A01
Required: 1
O-RING (18.3X3.5)
$6.60
You save $1.16
-15%
046
Honda
O-RING (26.2X2.4)91308-P3R-T01
Required: 1
O-RING (26.2X2.4) (YAMADA SOMBOON)
$2.31
You save $0.41
046
Honda
O-RING (26.2X2.4) (NOK)91308-PK1-003
Required: 1
O-RING (26.2X2.4) (NOK)
Price unavailable
-15%
047
Honda
O-RING (16.3X3.5)91309-P8A-A01
Required: 1
O-RING (16.3X3.5)
$6.60
You save $1.16
-15%
048
Honda
O-RING (13X1.5)91319-PR3-003
Required: 1
O-RING (13X1.5) (ARAI)
$5.18
You save $0.92
-15%
049
Honda
O-RING (25X2.4)91321-P0X-003
Required: 1
O-RING (25X2.4) (NOK)
$4.76
You save $0.84
-15%
050
Honda
O-RING (15X1.9)91333-PNA-003
Required: 1
O-RING (15X1.9)
$3.42
You save $0.60
-15%
051
Honda
SCREW, PAN (5X16)93500-05016-4J
Required: 2
SCREW, PAN (5X16)
$1.12
You save $0.20
-15%
052
Honda
SCREW, PAN (5X20)93500-05020-4J
Required: 6
SCREW, PAN (5X20)
$0.97
You save $0.17
-15%
053
Honda
PIN, DOWEL (6X10)94301-06100
Required: 4
PIN, DOWEL (6X10)
$2.33
You save $0.41
-15%
055
Honda
BOLT KIT (22MM)06126-ZVL-000
Required: 6
BOLT KIT, SEALING (22MM)
$7.71
You save $1.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
