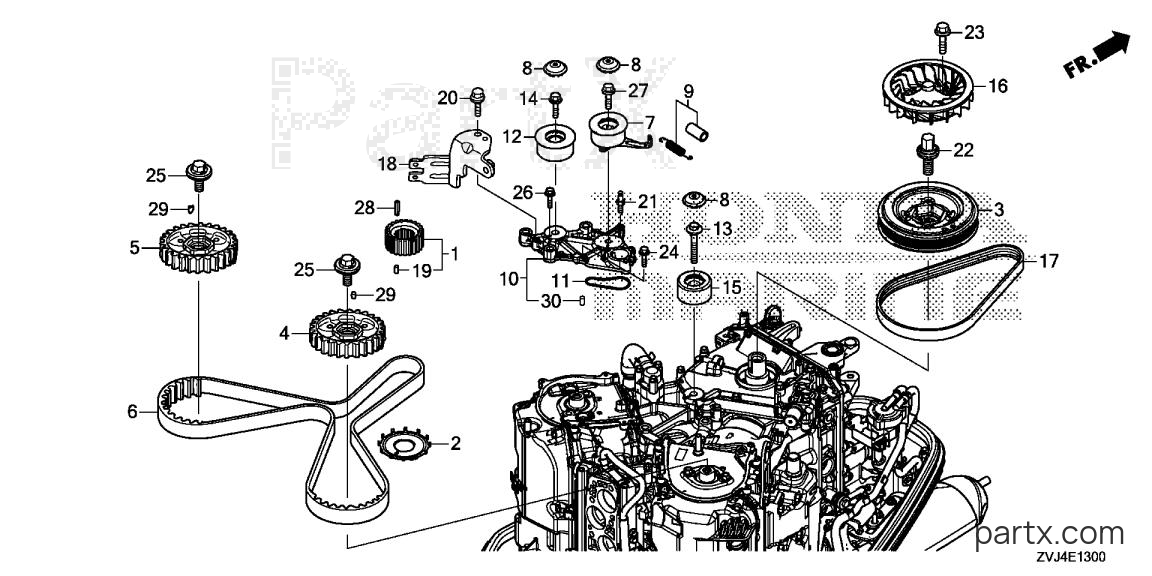

Pre 1997 Marine Engine BF - BF225D XRA TIMING BELT diagram
-15%
001
Honda
PULLEY, T/B DRIVE13621-ZY3-C01
Required: 1
PULLEY, TIMING BELT DRIVE
$65.37
You save $11.53
-15%
002
Honda
PLATE, CRANK PULSER13622-ZVL-B10
Required: 1
PLATE, CRANK PULSER
$30.12
You save $5.32
-15%
003
Honda
PULLEY, CRANKSHAFT13811-ZX2-000
Required: 1
PULLEY, CRANKSHAFT
$115.24
You save $20.34
-15%
004
Honda
PULLEY, R. T/B DRVN14261-ZY3-C00
Required: 1
PULLEY, R. TIMING BELT DRIVEN
$92.79
You save $16.37
-15%
005
Honda
PULLEY, L. T/B DRVN14270-ZVL-010
Required: 1
PULLEY, L. TIMING BELT DRIVEN
$120.61
You save $21.29
-20%
006
Honda
BELT, TIMING14400-P8A-A02
Required: 1
BELT, TIMING (197YU26 GB-323)
In stock
Only 2 remaining
$169.95
You save $42.59
-15%
007
Honda
TENSIONER14510-ZY3-013
Required: 1
TENSIONER, TIMING BELT
$124.42
You save $21.96
-15%
008
Honda
CAP14515-ZY3-000
Required: 3
CAP, TIMING BELT TENSIONER
In stock
Only 2 remaining
$4.44
You save $0.78
-15%
009
Honda
SPRING, TIM BLT ADJ14520-ZY3-000
Required: 1
SPRING, TIMING BELT ADJUSTING
In stock
Only 2 remaining
$5.61
You save $0.99
-15%
010
Honda
BASE *NH8*14526-ZVL-415ZA
Required: 1
BASE, TIMING BELT TENSIONER *NH8*(DARK GRAY)
$117.79
You save $20.79
-15%
011
Honda
O-RING14529-ZY3-000
Required: 1
O-RING, TIMING BELT TENSIONER BASE
In stock
Only 2 remaining
$5.92
You save $1.04
-20%
012
Honda
IDLER, TIMING BELT14550-ZY3-003
Required: 1
IDLER, TIMING BELT (KOYO SEIKO)
In stock
Only 2 remaining
$104.95
You save $26.51
-15%
013
Honda
BOLT, IDLER14551-P8A-A01
Required: 1
BOLT, IDLER
$14.31
You save $2.53
-15%
014
Honda
BOLT14553-ZVL-023
Required: 1
BOLT, TIMING BELT IDLER
$10.18
You save $1.80
-15%
015
Honda
IDLER B, TIMING BELT14555-ZY3-003
Required: 1
IDLER B, TIMING BELT
$86.07
You save $15.19
-15%
016
Honda
FAN, COOLING19511-ZX2-000
Required: 1
FAN, COOLING
$51.12
You save $9.02
-20%
017
Honda
BELT (6PK745 M-180)31638-ZY3-003
Required: 1
BELT, ALTERNATOR (6PK745 M-180)
In stock
Only 2 remaining
$32.86
You save $8.22
-15%
018
Honda
BRACKET, CONNECTOR D32111-ZVL-000
Required: 1
BRACKET, CONNECTOR D
$10.93
You save $1.93
-15%
019
Honda
PIN, VERTICAL SHAFT41122-ZV0-000
Required: 1
PIN, VERTICAL SHAFT
$1.53
You save $0.27
-15%
020
Honda
BOLT (6X14) (CT200)90011-ZZ5-M01
Required: 1
BOLT, FLANGE (6X14) (CT200)
$1.34
You save $0.24
-15%
021
Honda
BOLT90012-ZZ5-M02
Required: 1
BOLT, TIMING BELT ADJUSTING SPRING
$4.22
You save $0.74
-15%
022
Honda
BOLT-WASHER (16X49)90017-RJA-003
Required: 1
BOLT-WASHER (16X49)
$36.69
You save $6.47
-20%
023
Honda
BOLT, FLANGE (6X16)90017-ZZ5-M01
Required: 4
BOLT, FLANGE (6X16)
$1.33
You save $0.33
-15%
024
Honda
BOLT, FLANGE (6X22)90030-ZZ5-M01
Required: 1
BOLT, FLANGE (6X22)
$1.48
You save $0.26
-15%
025
Honda
BOLT-WASHER (12X35)90031-P8A-A01
Required: 2
BOLT-WASHER (12X35)
$17.24
You save $3.04
-15%
026
Honda
BOLT, FLANGE (10X40)90039-ZVL-010
Required: 3
BOLT, FLANGE (10X40)
$1.55
You save $0.27
-15%
027
Honda
BOLT, FLANGE (10X43)90016-ZVL-000
Required: 1
BOLT, FLANGE (10X43)
$1.68
You save $0.30
-15%
028
Honda
KEY (4.5X24)90704-RCA-A00
Required: 1
KEY (4.5X24)
$9.04
You save $1.60
-15%
029
Honda
KEY, SPECIAL90741-ZY3-000
Required: 2
KEY, SPECIAL
$3.84
You save $0.68
-15%
030
Honda
PIN, DOWEL (6X10)94301-06100
Required: 1
PIN, DOWEL (6X10)
$2.33
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
