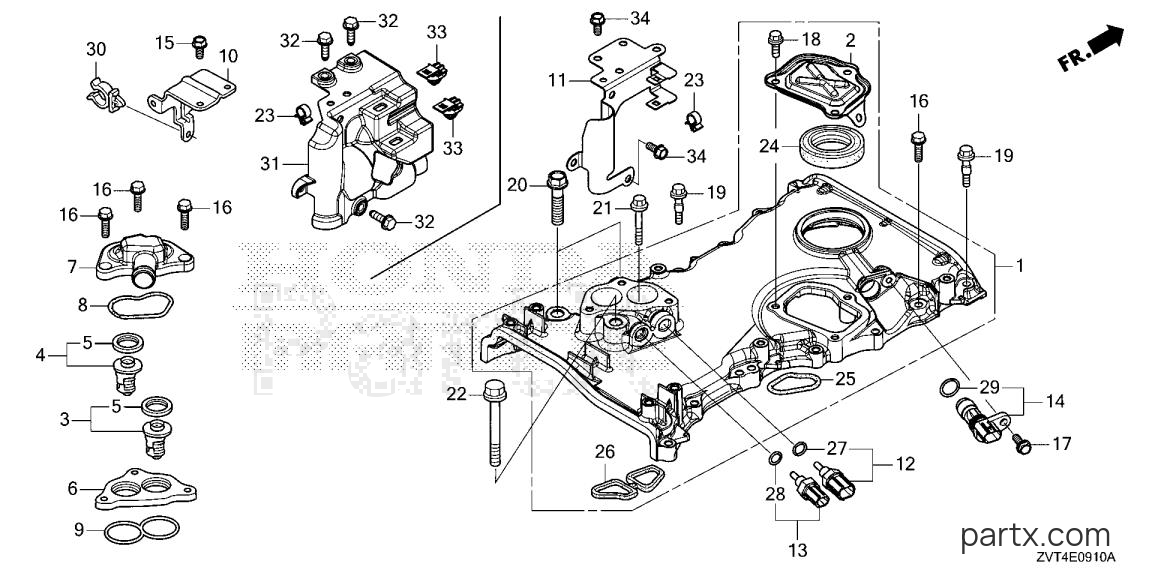

Pre 1997 Marine Engine BF - BF150D LDA CHAIN CASE - THERMOSTAT diagram
-15%
001
Honda
CASE, CHAIN *NH8*11410-ZVT-405ZA
Required: 1
CASE ASSY., CHAIN *NH8*(DARK GRAY)
$276.35
You save $48.77
-15%
002
Honda
COVER, CHAIN CASE11412-ZY6-010
Required: 1
COVER, CHAIN CASE
$12.27
You save $2.17
-15%
003
Honda
THERMOSTAT ASSY.19300-ZVL-003
Required: 1
THERMOSTAT ASSY.
$25.65
You save $4.53
-15%
004
Honda
THERMOSTAT ASSY.19300-ZVT-003
Required: 1
THERMOSTAT ASSY.
$25.65
You save $4.53
-20%
005
Honda
RUBBER, RING19303-ZW9-003
Required: 2
RUBBER, RING
In stock
Only 2 remaining
$5.63
You save $1.41
-15%
006
Honda
SPACER19313-ZY6-020
Required: 1
SPACER, THERMOSTAT COVER
$66.72
You save $11.78
-15%
007
Honda
COVER, THERMOSTAT19315-ZY6-010
Required: 1
COVER, THERMOSTAT
In stock
Only 2 remaining
$25.67
You save $4.53
-20%
008
Honda
GASKET19318-ZY6-003
Required: 1
GASKET, THERMOSTAT COVER
In stock
Only 1 remaining
$8.35
You save $2.09
-20%
009
Honda
GASKET19319-ZY6-010
Required: 1
GASKET, THERMOSTAT SPACER
$5.70
You save $1.42
-15%
010
Honda
BRKT B, HARNESS CLIP32112-ZY6-000
Required: 1
BRACKET B, HARNESS CLIP
$10.57
You save $1.87
-15%
012
Honda
SENSOR, WATER TEMP35673-ZW5-003
Required: 1
SENSOR ASSY., WATER TEMPERATURE
$21.69
You save $3.83
-15%
013
Honda
SENSOR, WATER TEMP35673-ZY3-003
Required: 1
SENSOR ASSY., WATER TEMPERATURE
$25.57
You save $4.51
-15%
014
Honda
SENSOR ASSY., CRANK37500-PNB-003
Required: 1
SENSOR ASSY., CRANK
$186.54
You save $32.92
-15%
015
Honda
BOLT (6X14) (CT200)90011-ZZ5-M01
Required: 2
BOLT, FLANGE (6X14) (CT200)
$1.34
You save $0.24
-15%
016
Honda
BOLT, FLANGE (6X28)90016-ZZ5-M01
Required: 13
BOLT, FLANGE (6X28)
In stock
Only 5 remaining
$1.60
You save $0.28
-20%
017
Honda
BOLT, FLANGE (6X16)90017-ZZ5-M01
Required: 1
BOLT, FLANGE (6X16)
$1.33
You save $0.33
-20%
018
Honda
BOLT, FLANGE (6X14)90021-ZZ5-M01
Required: 3
BOLT, FLANGE (6X14)
$1.22
You save $0.30
-15%
019
Honda
BOLT, SPECIAL (6X31)90023-ZY6-000
Required: 2
BOLT, SPECIAL (6X31)
$3.42
You save $0.60
-15%
020
Honda
BOLT, FLANGE (10X43)90040-ZVL-010
Required: 2
BOLT, FLANGE (10X43)
$1.80
You save $0.32
-15%
021
Honda
BOLT, FLANGE (6X38)90059-ZY6-000
Required: 1
BOLT, FLANGE (6X38)
$3.42
You save $0.60
-15%
022
Honda
BOLT, FLANGE (10X70)90162-ZW4-030
Required: 1
BOLT, FLANGE (10X70)
$2.46
You save $0.44
-15%
023
Honda
CLIP B (9MM BLACK)90682-959-661
Required: 1
CLIP B, CABLE (9MM BLACK)
$3.16
You save $0.56
-15%
024
Honda
OIL SEAL (43X58X7)91212-PNC-004
Required: 1
OIL SEAL (43X58X7) (ARAI)
$16.86
You save $2.98
-15%
025
Honda
O-RING, CHAIN CASE91302-PNA-004
Required: 1
O-RING, CHAIN CASE
In stock
Only 2 remaining
$8.57
You save $1.51
-15%
026
Honda
GASKET, CHAIN CASE91304-ZVT-B11
Required: 1
GASKET, CHAIN CASE
$4.22
You save $0.74
-15%
027
Honda
O-RING (9.5X1.5)91307-PK2-005
Required: 1
O-RING (9.5X1.5) (HONDA KIKAKI)
$2.65
You save $0.47
-15%
028
Honda
O-RING (9.5X1.9)91307-PNA-003
Required: 1
O-RING (9.5X1.9)
$2.28
You save $0.40
-15%
029
Honda
O-RING (15X1.9)91333-PNA-003
Required: 1
O-RING (15X1.9)
$3.42
You save $0.60
-15%
030
Honda
CLAMP (18.5MM)91546-SP0-A01
Required: 1
CLAMP (18.5MM)
$6.22
You save $1.10
-15%
031
Honda
HOLDER, WIRE HARNESS32113-ZVT-B10
Required: 1
HOLDER, WIRE HARNESS
$18.46
You save $3.26
-15%
032
Honda
BOLT (6X18) (CT200)90104-ZZ5-M01
Required: 3
BOLT, FLANGE (6X18) (CT200)
$2.09
You save $0.37
-15%
033
Honda
CLIP, CONNECTOR91535-TA0-003
Required: 2
CLIP, CONNECTOR (DARK BROWN)
$5.15
You save $0.91
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
