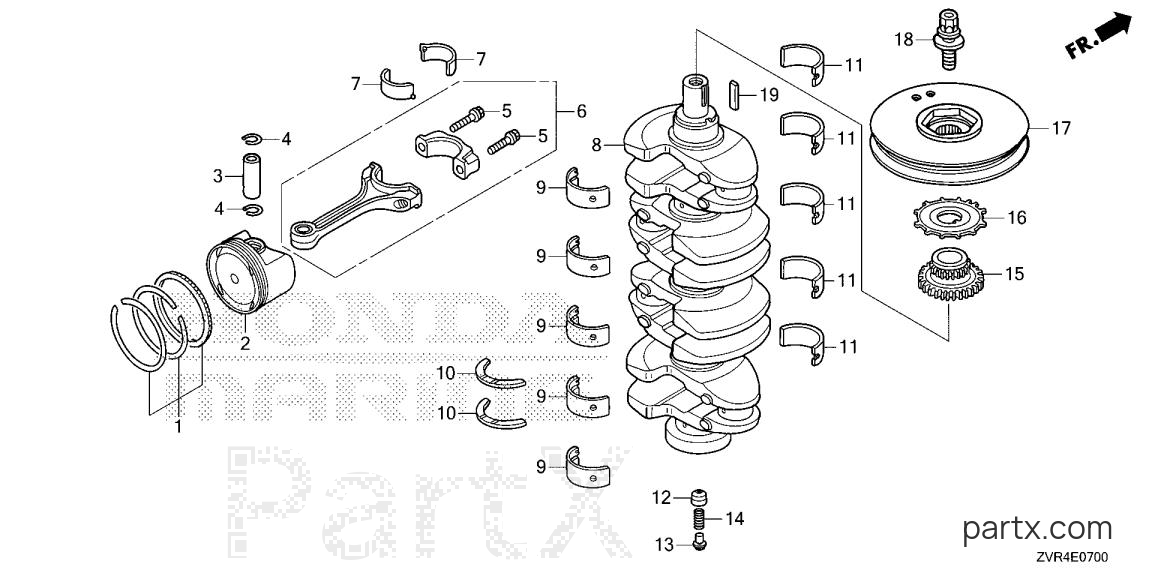

2007 And Later Marine Engine BF - BF115JK1 XDA CRANKSHAFT - PISTON diagram
-15%
001
Honda
RING SET (STD)13010-ZY6-010
Required: 4
RING SET, PISTON (STD)
$59.74
You save $10.54
-15%
$80.77
You save $14.25
-15%
003
Honda
PIN, PISTON13111-PNA-010
Required: 4
PIN, PISTON
$25.96
You save $4.58
-15%
004
Honda
CLIP, PISTON PIN13115-P5A-000
Required: 8
CLIP, PISTON PIN
$4.45
You save $0.79
-15%
005
Honda
BOLT, CONNECTING ROD13204-5X6-J01
Required: 8
BOLT, CONNECTING ROD
$10.42
You save $1.84
-15%
006
Honda
ROD, CONNECTING13210-R40-A00
Required: 4
ROD, CONNECTING
$274.89
You save $48.51
-15%
007
Honda
BEARING A, CONN ROD13211-ZY6-004
Required: 8
BEARING A, CONNECTING ROD (BLUE)
$14.25
You save $2.51
-15%
007
Honda
BEARING B, CONN ROD13212-ZY6-004
Required: 8
BEARING B, CONNECTING ROD (BLACK)
$14.91
You save $2.63
-15%
007
Honda
BEARING C, CONN ROD13213-ZY6-004
Required: 8
BEARING C, CONNECTING ROD (BROWN)
$14.91
You save $2.63
-15%
007
Honda
BEARING D, CONN ROD13214-ZY6-004
Required: 8
BEARING D, CONNECTING ROD (GREEN)
$14.91
You save $2.63
-15%
007
Honda
BEARING E, CONN ROD13215-ZY6-004
Required: 8
BEARING E, CONNECTING ROD (YELLOW)
$14.91
You save $2.63
-15%
007
Honda
BEARING F, CONN ROD13216-ZY6-004
Required: 8
BEARING F, CONNECTING ROD (PINK)
$14.91
You save $2.63
-15%
007
Honda
BEARING G, CONN ROD13217-ZY6-004
Required: 8
BEARING G, CONNECTING ROD (RED)
$14.25
You save $2.51
-15%
$752.72
You save $132.83
-15%
009
Honda
BEARING A, MAIN13321-ZVT-B11
Required: 5
BEARING A, MAIN (UPPER) (BLUE)(DAIDO)
$13.57
You save $2.39
-15%
009
Honda
BRG B, MAIN (UPPER)13322-ZVT-B11
Required: 5
BEARING B, MAIN (UPPER) (BLACK) (DAIDO)
$13.57
You save $2.39
-15%
009
Honda
BRG C, MAIN (UPPER)13323-ZVT-B11
Required: 5
BEARING C, MAIN (UPPER) (BROWN) (DAIDO)
$13.57
You save $2.39
-15%
009
Honda
BRG D, MAIN (UPPER)13324-ZVT-B11
Required: 5
BEARING D, MAIN (UPPER) (GREEN) (DAIDO)
$13.57
You save $2.39
-15%
009
Honda
BRG E, MAIN (UPPER)13325-ZVT-B11
Required: 5
BEARING E, MAIN (UPPER) (YELLOW) (DAIDO)
$13.57
You save $2.39
-15%
009
Honda
BEARING F, MAIN13326-ZVT-B11
Required: 5
BEARING F, MAIN (UPPER) (PINK)(DAIDO)
$13.57
You save $2.39
-15%
010
Honda
WASHER, THRUST13331-ZY6-023
Required: 2
WASHER, THRUST
$9.21
You save $1.63
-15%
011
Honda
BEARING A, MAIN13341-PNA-003
Required: 5
BEARING A, MAIN (LOWER) (BLUE)(DAIDO)
$23.19
You save $4.09
-15%
011
Honda
BRG B, MAIN (LOWER)13342-PNA-003
Required: 5
BEARING B, MAIN (LOWER) (BLACK) (DAIDO)
$23.19
You save $4.09
-15%
011
Honda
BRG C, MAIN (LOWER)13343-PNA-003
Required: 5
BEARING C, MAIN (LOWER) (BROWN) (DAIDO)
$23.19
You save $4.09
-15%
011
Honda
BRG D, MAIN (LOWER)13344-PNA-003
Required: 5
BEARING D, MAIN (LOWER) (GREEN) (DAIDO)
$23.19
You save $4.09
-15%
011
Honda
BRG E, MAIN (LOWER)13345-PNA-003
Required: 5
BEARING E, MAIN (LOWER) (YELLOW) (DAIDO)
$23.19
You save $4.09
-15%
011
Honda
BEARING F, MAIN13346-PNA-003
Required: 5
BEARING F, MAIN (LOWER) (PINK)(DAIDO)
$23.20
You save $4.10
-15%
012
Honda
RETAINER, SPRING13391-ZY3-010
Required: 1
RETAINER, SPRING
$7.99
You save $1.41
-15%
013
Honda
SEAT, SPRING (150)13392-ZY6-000
Required: 1
SEAT, SPRING (150)
$9.06
You save $1.60
-15%
014
Honda
SPRING, SUPPORT13398-ZY3-003
Required: 1
SPRING, SUPPORT
$4.18
You save $0.74
-15%
015
Honda
SPROCKET13620-RAA-A02
Required: 1
SPROCKET, CHAIN DRIVE
$169.20
You save $29.86
-15%
016
Honda
PLATE, CRANK PULSER13622-PNA-003
Required: 1
PLATE, CRANK PULSER
$21.32
You save $3.76
-15%
017
Honda
PULLEY, CRANKSHAFT13811-ZY6-000
Required: 1
PULLEY, CRANKSHAFT
$87.72
You save $15.48
-15%
018
Honda
BOLT-WASHER (16X49)90017-PCX-013
Required: 1
BOLT-WASHER (16X49)
$27.57
You save $4.87
-15%
019
Honda
KEY (4.5X21)90704-PNA-000
Required: 1
KEY (4.5X21)
$6.61
You save $1.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
