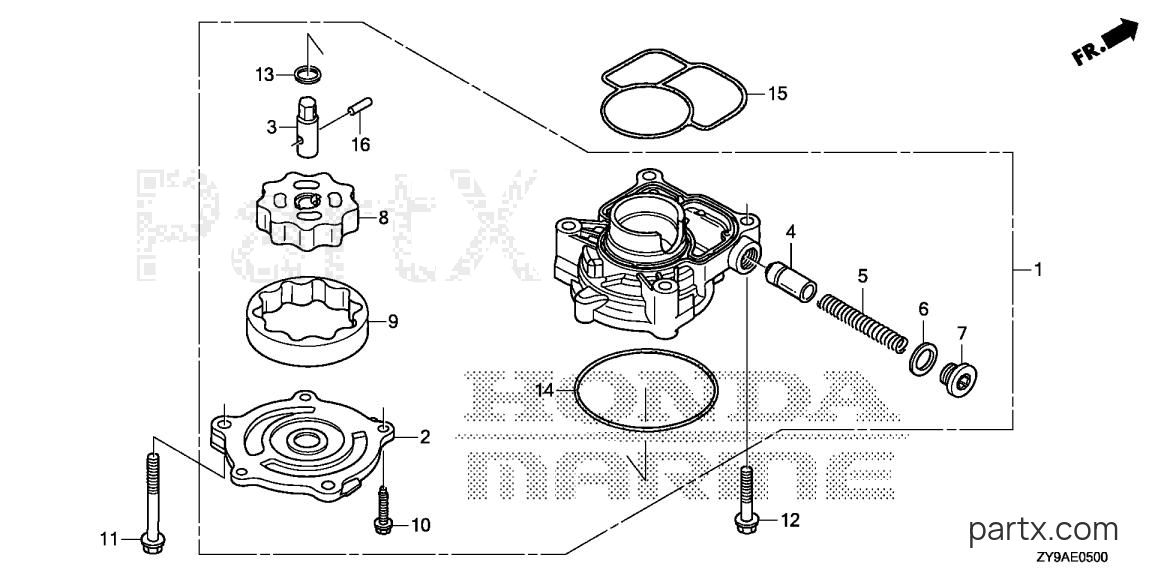

Pre 1997 Marine Engine BF - BF100A LRTA OIL PUMP diagram
-15%
001
Honda
PUMP ASSY., OIL15100-ZY9-M01
Required: 1
PUMP ASSY., OIL
$291.43
You save $51.43
-15%
002
Honda
COVER, OIL PUMP15121-ZY9-000
Required: 1
COVER, OIL PUMP
$42.28
You save $7.46
-15%
003
Honda
SHAFT, OIL PUMP15136-ZY9-000
Required: 1
SHAFT, OIL PUMP
$15.38
You save $2.71
-15%
004
Honda
VALVE, RELIEF15231-PE0-000
Required: 1
VALVE, RELIEF
$15.96
You save $2.82
-15%
005
Honda
SPRING, RELIEF VALVE15232-PG6-000
Required: 1
SPRING, RELIEF VALVE
$6.66
You save $1.18
-15%
006
Honda
WASHER (18MM)15234-PC6-000
Required: 1
WASHER, SEALING (18MM)
$7.57
You save $1.33
-15%
007
Honda
BOLT, SEALING (18MM)15236-ZY9-M00
Required: 1
BOLT, SEALING (18MM)
$9.47
You save $1.67
-15%
008
Honda
ROTOR (INNER)15331-ZW1-000
Required: 1
ROTOR (INNER)
$48.48
You save $8.56
-15%
009
Honda
ROTOR (OUTER)15341-ZW1-000
Required: 1
ROTOR (OUTER)
$53.91
You save $9.51
-15%
010
Honda
BOLT (6X18) (CT200)90104-ZZ5-M01
Required: 3
BOLT, FLANGE (6X18) (CT200)
$2.09
You save $0.37
-15%
011
Honda
BOLT, FLANGE (8X60)90027-ZY9-M01
Required: 2
BOLT, FLANGE (8X60)
$3.04
You save $0.54
-15%
012
Honda
BOLT, FLANGE (8X40)90055-ZZ5-M01
Required: 2
BOLT, FLANGE (8X40)
$2.11
You save $0.37
-15%
013
Honda
WASHER (13MM)90456-MC7-000
Required: 1
WASHER, THRUST (13MM)
$2.82
You save $0.50
-15%
014
Honda
O-RING, PUMP COVER91302-ZW1-000
Required: 1
O-RING, PUMP COVER
$8.87
You save $1.57
-15%
015
Honda
O-RING, OIL PUMP91304-ZY9-000
Required: 1
O-RING, OIL PUMP
$11.59
You save $2.05
-15%
016
Honda
ROLLER (5X17.8)96220-50178
Required: 1
ROLLER (5X17.8)
$0.85
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
