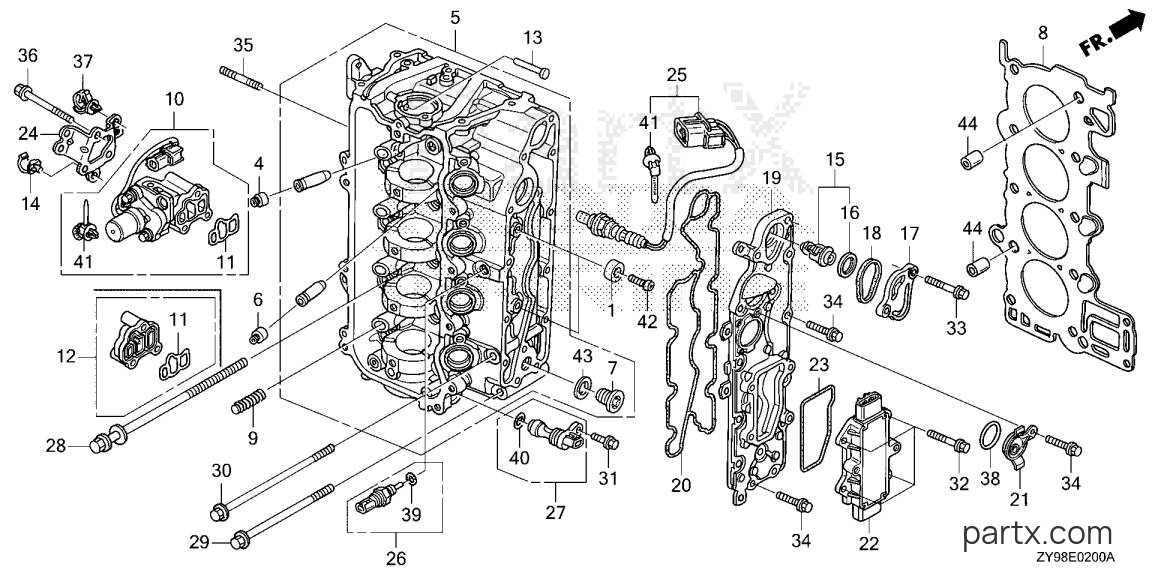

2007 And Later Marine Engine BF - BF90DK5 XRTA CYLINDER HEAD diagram
-15%
001
Honda
METAL, ANODE12155-ZV5-000
Required: 2
METAL, ANODE
$10.78
You save $1.90
-20%
001
Honda
METAL, ANODE12155-ZV5-010
Required: 2
METAL, ANODE
In stock
Only 5 remaining
$10.14
You save $2.54
-15%
002
Honda
GUIDE, VALVE (OS)12204-PJ7-305
Required: 8
GUIDE, VALVE (OVER SIZE)
$18.14
You save $3.20
-15%
003
Honda
GUIDE, EX VLV (OS)12205-PJ7-305
Required: 8
GUIDE, EX. VALVE (OVER SIZE) (NOT AVAILABLE)
$21.18
You save $3.74
-15%
004
Honda
SEAL A, VALVE STEM12210-PZ1-004
Required: 8
SEAL A, VALVE STEM (NOK) (INLET SIDE)
$4.90
You save $0.86
-15%
005
Honda
CYLINDER HEAD *NH8*12210-ZY9-M00ZA
Required: 1
CYLINDER HEAD *NH8*(DARK GRAY)
$1449.02
You save $255.71
-15%
005
Honda
CYLINDER HEAD *NH8*12210-ZY9-M01ZA
Required: 1
CYLINDER HEAD *NH8*(DARK GRAY)
$1192.35
You save $210.41
-15%
006
Honda
SEAL B, VALVE STEM12211-PZ1-004
Required: 8
SEAL B, VALVE STEM (NOK) (EXHAUST SIDE)
$4.90
You save $0.86
-15%
007
Honda
BOLT, SEALING (20MM)12217-ZY9-M00
Required: 2
BOLT, SEALING (20MM)
$3.06
You save $0.54
-15%
007
Honda
BOLT, SEALING (20MM)12217-ZY9-M01
Required: 2
BOLT, SEALING (20MM)
$3.42
You save $0.60
-15%
008
Honda
GASKET, CYL HD12251-ZY9-013
Required: 1
GASKET, CYLINDER HEAD
In stock
Only 1 remaining
$111.95
You save $20.27
-15%
009
Honda
MOTION, LOST14820-PZA-013
Required: 4
MOTION, LOST
$22.70
You save $4.01
-15%
010
Honda
VALVE, SPOOL *NH8*15810-ZZ0-003ZA
Required: 1
VALVE ASSY., SPOOL *NH8*(DARK GRAY)
$333.95
You save $58.93
-15%
011
Honda
FILTER, SPOOL VALVE15815-RAA-A02
Required: 1
FILTER ASSY., SPOOL VALVE
$7.63
You save $1.35
-15%
013
Honda
LIFTER, FUEL PUMP16717-ZY9-000
Required: 1
LIFTER, FUEL PUMP
$14.89
You save $2.63
-15%
014
Honda
CLAMP B, FUEL TUBE16896-ZY9-003
Required: 1
CLAMP B, FUEL TUBE
$3.16
You save $0.56
-20%
015
Honda
THERMOSTAT ASSY.19300-ZY6-003
Required: 1
THERMOSTAT ASSY.
In stock
Only 1 remaining
$40.16
You save $10.04
-20%
016
Honda
RUBBER, RING19303-ZW9-003
Required: 1
RUBBER, RING
In stock
Only 2 remaining
$5.63
You save $1.41
-20%
017
Honda
COVER, THERMOSTAT19315-ZW9-000
Required: 1
COVER, THERMOSTAT
In stock
Only 3 remaining
$11.66
You save $2.92
-15%
017
Honda
COVER, THERMOSTAT19315-ZY9-M00
Required: 1
COVER, THERMOSTAT
$16.52
You save $2.92
-20%
018
Honda
O-RING19317-ZW9-000
Required: 1
O-RING, THERMOSTAT COVER
In stock
Only 1 remaining
$5.49
You save $1.37
019
Honda
COVER,WATER JACKET19361-ZY9-405
Required: 1
COVER,WATER JACKET
Price unavailable
-15%
019
Honda
COVER,WATER JACKET19361-ZY9-M01
Required: 1
COVER, WATER JACKET
$154.96
You save $27.34
-15%
020
Honda
GASKET19371-ZY9-000
Required: 1
GASKET, EX. WATER JACKET COVER
$16.81
You save $2.97
-15%
021
Honda
COVER, ANODE19380-ZY9-M01
Required: 1
COVER, ANODE
$30.43
You save $5.37
-15%
022
Honda
RECTIFIER, REGULATOR31750-ZY9-003
Required: 1
RECTIFIER ASSY., REGULATOR
$207.28
You save $36.58
-15%
023
Honda
GASKET, REGULATOR31754-ZY9-000
Required: 1
GASKET, REGULATOR
$7.43
You save $1.31
-15%
024
Honda
BRACKET D32114-ZY9-010
Required: 1
BRACKET D, HARNESS CLIP
$10.06
You save $1.78
-15%
025
Honda
SENSOR, OXYGEN35655-ZY9-H01
Required: 1
SENSOR, OXYGEN
$365.67
You save $64.53
-15%
026
Honda
SENSOR, WATER TEMP35673-ZY3-003
Required: 1
SENSOR ASSY., WATER TEMPERATURE
$25.57
You save $4.51
-15%
027
Honda
SENSOR ASSY., TDC35695-ZY9-003
Required: 1
SENSOR ASSY., TDC
$101.98
You save $18.00
-15%
028
Honda
BOLT-WASHER (9X155)90008-PWA-003
Required: 10
BOLT-WASHER (9X155)
$9.89
You save $1.75
029
Honda
BOLT, FLANGE (8X95)90011-ZY9-M00
Required: 1
BOLT, FLANGE (8X95)
Price unavailable
-15%
029
Honda
BOLT, FLANGE (8X95)90011-ZY9-M01
Required: 1
BOLT, FLANGE (8X95)
$3.08
You save $0.54
-15%
030
Honda
BOLT, FLANGE (8X110)90016-ZY9-M00
Required: 1
BOLT, FLANGE (8X110)
$3.54
You save $0.62
-15%
030
Honda
BOLT, FLANGE (8X110)90016-ZY9-M01
Required: 1
BOLT, FLANGE (8X110)
$3.54
You save $0.62
-20%
031
Honda
BOLT, FLANGE (6X16)90017-ZZ5-M01
Required: 1
BOLT, FLANGE (6X16)
$1.33
You save $0.33
-15%
032
Honda
BOLT, FLANGE (6X20)90018-ZZ5-M01
Required: 4
BOLT, FLANGE (6X20)
$1.55
You save $0.27
-15%
033
Honda
BOLT, FLANGE (6X35)90019-ZZ5-M01
Required: 2
BOLT, FLANGE (6X35)
$2.55
You save $0.45
-15%
034
Honda
BOLT, FLANGE (6X22)90030-ZZ5-M01
Required: 13
BOLT, FLANGE (6X22)
$1.48
You save $0.26
-15%
035
Honda
BOLT, STUD (8X32)90047-ZY9-M00
Required: 2
BOLT, STUD (8X32)
$2.48
You save $0.44
-15%
035
Honda
BOLT, STUD (8X32)90047-ZY9-M01
Required: 2
BOLT, STUD (8X32)
$2.35
You save $0.41
-15%
036
Honda
BOLT, FLANGE (6X55)90047-ZZ5-M00
Required: 3
BOLT, FLANGE (6X55)
$2.14
You save $0.38
-15%
036
Honda
BOLT, FLANGE (6X55)90047-ZZ5-M01
Required: 3
BOLT, FLANGE (6X55)
$2.21
You save $0.39
-15%
037
Honda
CLIP, HARNESS90691-ZB7-003
Required: 1
CLIP, HARNESS
$3.47
You save $0.61
-15%
038
Honda
O-RING (33X2.4)91302-ZZ5-M01
Required: 1
O-RING (33X2.4)
$2.69
You save $0.47
-15%
039
Honda
O-RING (9.5X1.9)91307-PNA-003
Required: 1
O-RING (9.5X1.9)
$2.28
You save $0.40
-15%
040
Honda
O-RING (15X1.9)91333-PNA-003
Required: 1
O-RING (15X1.9)
$3.42
You save $0.60
-15%
041
Honda
CLIP (145MM)91541-S0A-003
Required: 2
CLIP, HARNESS BAND (145MM) (BLACK)
$4.11
You save $0.73
-50%
042
Honda
SCREW, PAN (6X18)93500-06018-4J
Required: 2
SCREW, PAN (6X18)
In stock
Only 3 remaining
$0.99
You save $0.99
-15%
042
Honda
BOLT, FLANGE (6X18)90004-ZX2-000
Required: 2
BOLT, FLANGE (6X18)
$2.13
You save $0.38
-15%
043
Honda
WASHER, DRAIN (20MM)94109-20000
Required: 2
WASHER, DRAIN PLUG (20MM)
In stock
5+ in stock
$1.44
You save $0.26
-15%
044
Honda
PIN, DOWEL (14X20)94301-14200
Required: 2
PIN, DOWEL (14X20)
$2.55
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
