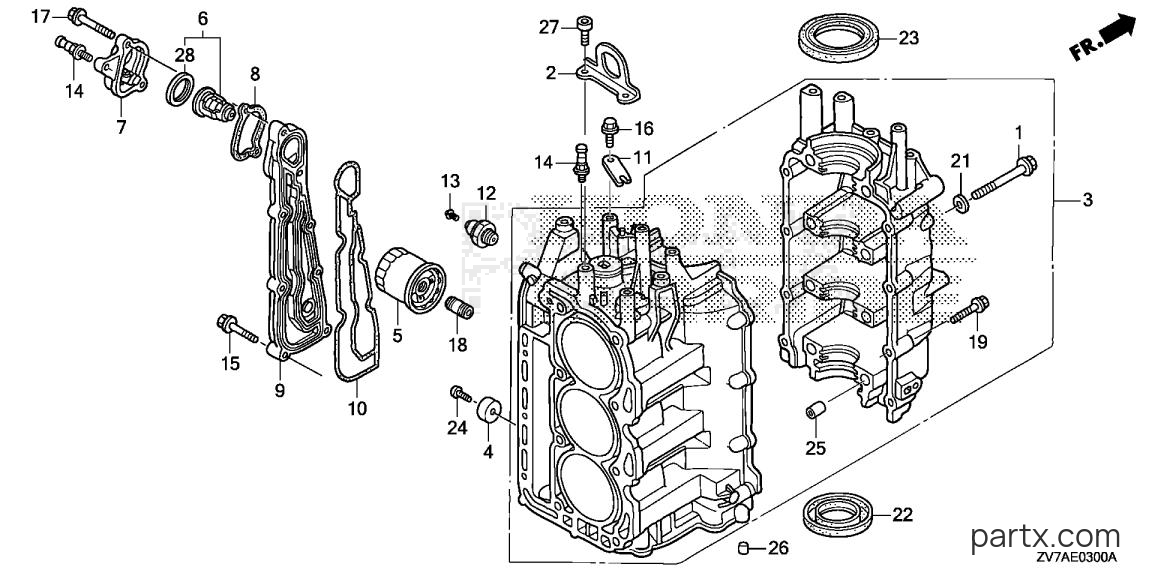

2007 And Later Marine Engine BF - BF30DK3 LRTA CYLINDER BLOCK diagram
001
Honda
BOLT, FLANGE (8X85)11115-ZV7-010
Required: 8
BOLT, FLANGE (8X85)
Price unavailable
001
Honda
BOLT, FLANGE (8X85) (NOT AVAILABLE)11115-ZV7-040
Required: 8
BOLT, FLANGE (8X85) (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
HANGER, ENGINE11911-ZV7-020
Required: 1
HANGER, ENGINE
$9.49
You save $1.67
002
Honda
HANGER, ENGINE (NOT AVAILABLE)11911-ZV7-030
Required: 1
HANGER, ENGINE (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
BLOCK ASSY. *NH8*12000-ZW2-415ZA
Required: 1
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY)
$987.37
You save $174.24
003
Honda
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY) (NOT AVAILABLE)12000-ZW2-445ZA
Required: 1
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY) (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
METAL, ANODE12155-ZV5-000
Required: 1
METAL, ANODE
$10.78
You save $1.90
-20%
004
Honda
METAL, ANODE12155-ZV5-010
Required: 1
METAL, ANODE
In stock
Only 5 remaining
$10.14
You save $2.54
-20%
005
Honda
FILTER, OIL15400-ZZ3-003
Required: 1
FILTER, OIL (DENSO)
In stock
Only 1 remaining
$17.52
You save $4.38
-20%
006
Honda
THERMOSTAT ASSY.19300-ZW9-003
Required: 1
THERMOSTAT ASSY.
$45.74
You save $11.44
-15%
007
Honda
COVER, THERMOSTAT19315-ZV5-010
Required: 1
COVER, THERMOSTAT
$29.16
You save $5.15
-20%
008
Honda
GASKET19351-ZV5-000
Required: 1
GASKET, THERMOSTAT COVER
$3.17
You save $0.79
-15%
009
Honda
COVER *NH8*19361-ZV7-000ZA
Required: 1
COVER, WATER JACKET *NH8*(DARK GRAY)
$75.17
You save $13.27
-15%
010
Honda
GASKET19371-ZV7-000
Required: 1
GASKET, WATER JACKET COVER
$13.77
You save $2.43
-15%
011
Honda
PLATE, SHIFT SHAFT24626-ZV5-010
Required: 1
PLATE, SHIFT SHAFT
$2.55
You save $0.45
-15%
012
Honda
SWITCH, OIL PRESSURE35490-ZW2-F01
Required: 1
SWITCH ASSY., OIL PRESSURE
$32.22
You save $5.69
-15%
013
Honda
SCREW-WASHER (4X8)90002-ZW2-F01
Required: 1
SCREW-WASHER (4X8)
$1.36
You save $0.24
-15%
014
Honda
BOLT90012-ZZ5-M02
Required: 2
BOLT, TIMING BELT ADJUSTING SPRING
$4.22
You save $0.74
015
Honda
BOLT, FLANGE (6X22) (CT200)90012-ZW9-000
Required: 6
BOLT, FLANGE (6X22) (CT200)
Price unavailable
-50%
015
Honda
BOLT (6X22) (CT200)90012-ZW9-030
Required: 6
BOLT, FLANGE (6X22) (CT200)
In stock
5+ in stock
$1.26
You save $1.26
-20%
016
Honda
BOLT, FLANGE (6X12)90013-ZV0-010
Required: 1
BOLT, FLANGE (6X12)
In stock
Only 2 remaining
$1.90
You save $0.48
-15%
017
Honda
BOLT, FLANGE (6X35)90014-ZV7-040
Required: 2
BOLT, FLANGE (6X35)
$1.78
You save $0.32
-15%
018
Honda
HOLDER, OIL FILTER90018-PN3-000
Required: 1
HOLDER, OIL FILTER
$7.96
You save $1.40
019
Honda
BOLT, FLANGE (6X40)90145-ZW4-000
Required: 8
BOLT, FLANGE (6X40)
Price unavailable
-15%
019
Honda
BOLT, FLANGE (6X40)90045-ZZ5-M01
Required: 8
BOLT, FLANGE (6X40)
$1.94
You save $0.34
-15%
021
Honda
WASHER, PLAIN (8MM)90405-ZZ5-M01
Required: 8
WASHER, PLAIN (8MM)
$2.21
You save $0.39
-20%
022
Honda
OIL SEAL (35X52X8)91201-ZE3-004
Required: 1
OIL SEAL (35X52X8)
$8.50
You save $2.12
-15%
023
Honda
OIL SEAL91262-SL4-005
Required: 1
OIL SEAL (44.5X60.5X8) (NOK)
$12.24
You save $2.16
-50%
024
Honda
SCREW, PAN (6X18)93500-06018-4J
Required: 1
SCREW, PAN (6X18)
In stock
Only 3 remaining
$0.99
You save $0.99
-15%
025
Honda
PIN, DOWEL (10X12)94301-10120
Required: 8
PIN, DOWEL (10X12)
$2.55
You save $0.45
-15%
026
Honda
PIN, DOWEL (6X10)94303-06100
Required: 2
PIN, DOWEL (6X10)
$2.33
You save $0.41
-15%
027
Honda
BOLT, SOCKET (8X18)90001-ZW2-000
Required: 2
BOLT, SOCKET (8X18)
$3.13
You save $0.55
-20%
028
Honda
RUBBER, RING19303-ZW9-003
Required: 1
RUBBER, RING
In stock
Only 2 remaining
$5.63
You save $1.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
