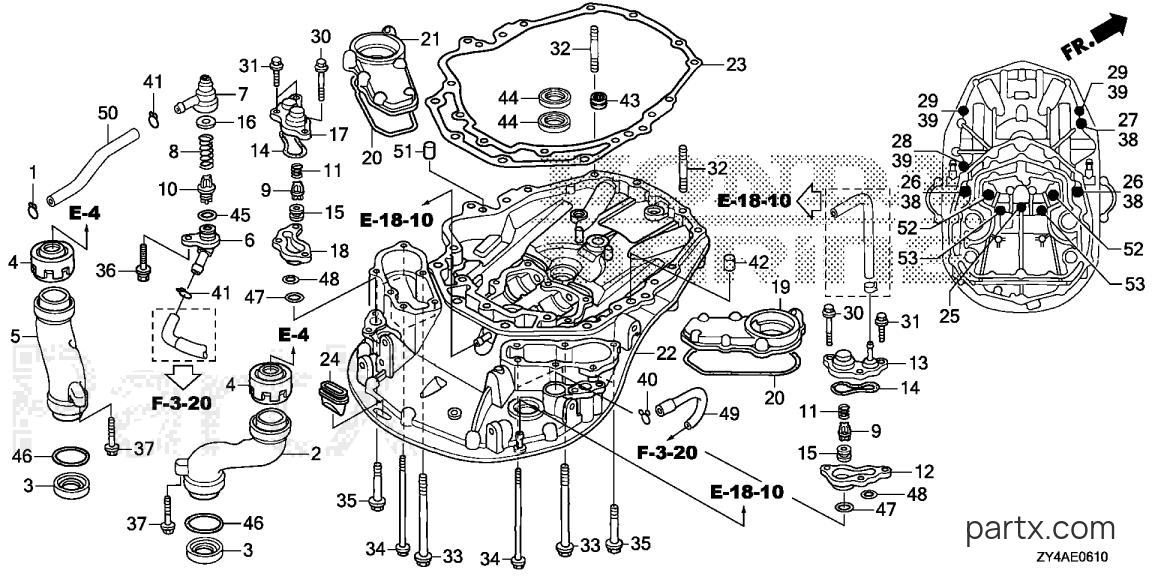

2007 And Later Marine Engine BF - BF225AK3 XCA MOUNT CASE diagram
-15%
$1.89
You save $0.33
-15%
002
Honda
GUIDE, R. *TGRAY*18141-ZY3-A00ZA
Required: 1
GUIDE, R. EX. *TGRAY*(GRAY)
$103.62
You save $18.28
-15%
003
Honda
SEAL, EX. GUIDE18148-ZY3-003
Required: 2
SEAL, EX. GUIDE
$33.29
You save $5.87
-15%
004
Honda
SEAL B, EX. GUIDE18149-ZY3-A01
Required: 2
SEAL B, EX. GUIDE
$31.28
You save $5.52
-15%
005
Honda
GUIDE, L. *TGRAY*18151-ZY3-A00ZA
Required: 1
GUIDE, L. EX. *TGRAY*(GRAY)
$103.62
You save $18.28
-20%
006
Honda
COVER *NH8*19277-ZY3-000ZA
Required: 1
COVER, FLUSH VALVE *NH8*(DARK GRAY)
$43.60
You save $10.90
-15%
007
Honda
CASE, FLUSH VALVE19278-ZY3-000
Required: 1
CASE, FLUSH VALVE
$24.65
You save $4.35
-20%
008
Honda
SPRING, FLUSH VALVE19279-ZW9-010
Required: 1
SPRING, FLUSH VALVE
$1.68
You save $0.42
-15%
009
Honda
VALVE, RELIEF19291-ZW5-000
Required: 2
VALVE, RELIEF
$8.30
You save $1.46
-20%
010
Honda
VALVE, FLASH19291-ZW9-000
Required: 1
VALVE, FLASH
$6.27
You save $1.57
-15%
011
Honda
SPRING, RELIEF VALVE19292-ZW5-000
Required: 2
SPRING, RELIEF VALVE
$4.74
You save $0.84
-15%
012
Honda
SPACER, R. *TGRAY*19294-ZY3-000ZB
Required: 1
SPACER, R. RELIEF VALVE *TGRAY*(GRAY)
$60.38
You save $10.66
-15%
013
Honda
CVR, R. RELIEF VALVE19295-ZY3-000
Required: 1
COVER, R. RELIEF VALVE
$18.96
You save $3.34
-7%
014
Honda
GASKET19296-ZY3-000
Required: 2
GASKET, RELIEF VALVE COVER
$4.24
You save $0.34
-15%
015
Honda
GASKET, RELIEF VALVE19297-ZW5-000
Required: 2
GASKET, RELIEF VALVE
$7.11
You save $1.25
016
Honda
GASKET, FLASH VALVE19297-ZW9-000
Required: 1
GASKET, FLASH VALVE
Price unavailable
-20%
016
Honda
GASKET, FLASH VALVE19297-ZW9-010
Required: 1
GASKET, FLASH VALVE
In stock
Only 1 remaining
$1.63
You save $0.41
-15%
017
Honda
CVR, L. RELIEF VALVE19297-ZY3-000
Required: 1
COVER, L. RELIEF VALVE
$18.96
You save $3.34
-15%
018
Honda
SPACER, L. *TGRAY*19298-ZY3-000ZB
Required: 1
SPACER, L. RELIEF VALVE *TGRAY*(GRAY)
$60.38
You save $10.66
-15%
019
Honda
CVR, R. WATER JACKET19361-ZY3-000
Required: 1
COVER, R. WATER JACKET
$104.01
You save $18.35
-15%
020
Honda
GASKET19362-ZY3-000
Required: 2
GASKET, WATER JACKET COVER
$13.99
You save $2.47
-15%
021
Honda
CVR, L. WATER JACKET19366-ZY3-000
Required: 1
COVER, L. WATER JACKET
$106.61
You save $18.81
-15%
022
Honda
CASE, MOUNT *NH8*23170-ZY3-030ZA
Required: 1
CASE, MOUNT *NH8*(DARK GRAY)
$962.57
You save $169.87
-15%
023
Honda
GASKET, MOUNT CASE23172-ZY3-003
Required: 1
GASKET, MOUNT CASE
$123.88
You save $21.86
-15%
024
Honda
RUB, MOUNT CASE SEAL23173-ZY3-010
Required: 1
RUBBER, MOUNT CASE SEAL
$9.40
You save $1.66
-15%
025
Honda
BOLT, FLG (10X120)90009-371-015
Required: 1
BOLT, FLANGE (10X120) (SATO)
$11.78
You save $2.08
-15%
026
Honda
BOLT, HEX. (12X120)90010-ZY3-000
Required: 2
BOLT, HEX. (12X120)
$13.77
You save $2.43
-15%
027
Honda
BOLT, HEX. (12X65)90011-ZY3-000
Required: 1
BOLT, HEX. (12X65)
$14.45
You save $2.55
-15%
028
Honda
BOLT, HEX. (10X85)90013-ZY3-000
Required: 1
BOLT, HEX. (10X85)
$13.29
You save $2.35
-15%
029
Honda
BOLT, HEX. (10X60)90015-ZY3-000
Required: 2
BOLT, HEX. (10X60)
$9.52
You save $1.68
-15%
030
Honda
BOLT, FLANGE (6X22)90030-ZY3-000
Required: 2
BOLT, FLANGE (6X22)
$1.04
You save $0.18
-15%
031
Honda
BOLT, FLANGE (6X32)90031-ZY3-000
Required: 4
BOLT, FLANGE (6X32)
In stock
Only 1 remaining
$1.17
You save $0.21
-15%
032
Honda
BOLT, STUD (10X45)90045-ZY3-000
Required: 2
BOLT, STUD (10X45)
$4.76
You save $0.84
-15%
032
Honda
BOLT, STUD (10X45)90045-ZVL-010
Required: 2
BOLT, STUD (10X45)
$4.76
You save $0.84
-15%
033
Honda
BOLT, FLANGE (8X100)90046-ZY3-000
Required: 2
BOLT, FLANGE (8X100)
$8.47
You save $1.49
-15%
034
Honda
BOLT-WASHER (6X121)90047-ZY3-000
Required: 6
BOLT-WASHER (6X121)
$9.03
You save $1.59
-15%
035
Honda
BOLT, FLANGE (8X30)90049-ZVL-010
Required: 4
BOLT, FLANGE (8X30)
$1.46
You save $0.26
-15%
036
Honda
BOLT-WASHER (6X29)90059-ZY3-000
Required: 1
BOLT-WASHER (6X29)
$4.28
You save $0.76
-15%
037
Honda
BOLT, FLANGE (6X40)90207-HW1-671
Required: 2
BOLT, FLANGE (6X40)
$2.35
You save $0.41
-20%
038
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 3
WASHER, PLAIN (12MM)
$3.14
You save $0.78
-15%
039
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 3
WASHER, PLAIN (10MM)
$2.75
You save $0.49
-15%
040
Honda
CLIP, TUBE (B10)90603-ZV4-000
Required: 1
CLIP, TUBE (B10)
$1.60
You save $0.28
-15%
041
Honda
CLIP, TUBE (B12.5)90605-ZV4-000
Required: 2
CLIP, TUBE (B12.5)
$1.55
You save $0.27
-15%
042
Honda
PIN, DOWEL (14X15)90701-PW5-000
Required: 1
PIN, DOWEL (14X15)
$5.24
You save $0.92
-15%
043
Honda
BEARING (20X28X13)91001-ZY3-003
Required: 1
BEARING, NEEDLE (20X28X13) (SOLID)
$40.66
You save $7.18
-15%
044
Honda
SEAL (22X35X7)91202-ZW5-003
Required: 2
SEAL, WATER (22X35X7)
$13.77
You save $2.43
-20%
045
Honda
O-RING (16MM)91303-800-000
Required: 1
O-RING (16MM)
In stock
Only 1 remaining
$2.18
You save $0.54
-15%
046
Honda
O-RING (49.4X3.1)91304-ZY3-000
Required: 2
O-RING (49.4X3.1)
$7.79
You save $1.37
-15%
047
Honda
O-RING (33.5X2)91305-ZY3-003
Required: 2
O-RING (33.5X2)
$3.09
You save $0.55
-15%
048
Honda
O-RING (23.5X2)91306-ZY3-003
Required: 2
O-RING (23.5X2)
$3.77
You save $0.67
-15%
049
Honda
TUBE, WATER CHECK91404-ZY3-000
Required: 1
TUBE, WATER CHECK
$3.91
You save $0.69
-15%
050
Honda
TUBE, FLUSH VALVE91405-ZY3-000
Required: 1
TUBE, FLUSH VALVE
$5.02
You save $0.88
-15%
051
Honda
PIN B, DOWEL (10X16)94302-10160
Required: 1
PIN B, DOWEL (10X16)
$1.84
You save $0.32
-15%
052
Honda
BOLT, FLANGE (10X70)95701-10070-09
Required: 2
BOLT, FLANGE (10X70)
$2.06
You save $0.36
-15%
053
Honda
BOLT, FLG (12X120)95701-12120-09
Required: 2
BOLT, FLANGE (12X120)
$3.20
You save $0.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
