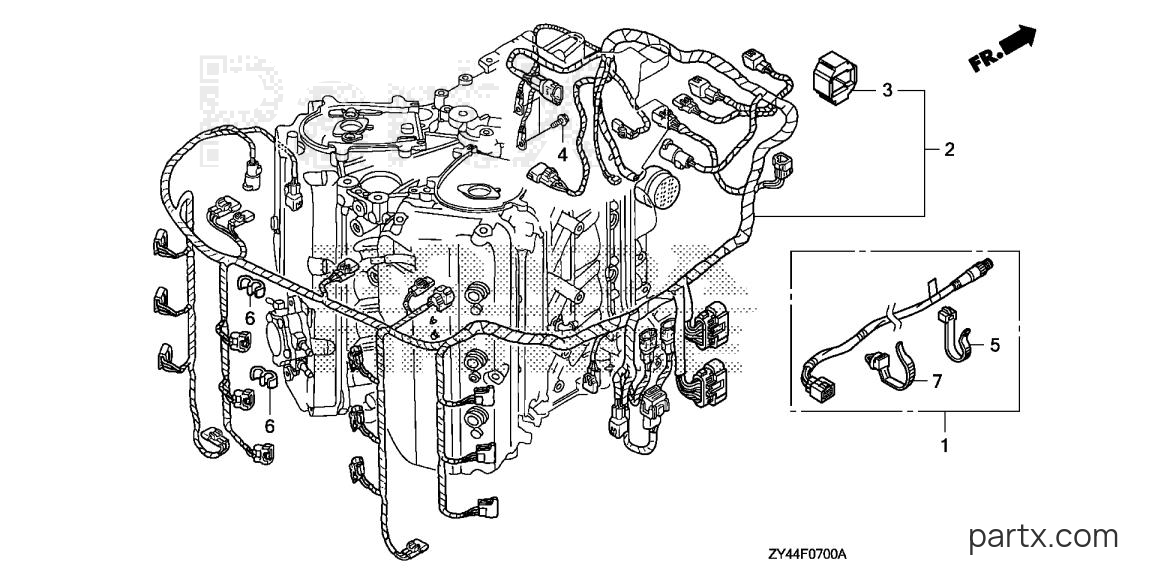

2007 And Later Marine Engine BF - BF175AK1 XA WIRE HARNESS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

001

Honda

KIT, CABLE (6FT)06328-ZZ3-764

Required: 1

KIT, CABLE (6FT) (NMEA)

~~$355.82~~

$302.45

You save $53.37

More details

-15%

002

Honda

WIRE HARNESS, MAIN32100-ZY2-C01

Required: 1

WIRE HARNESS ASSY., MAIN

~~$1065.96~~

$906.07

You save $159.89

More details

-15%

003

Honda

SUSPENSION32127-ZZ3-000

Required: 1

SUSPENSION, CONNECTOR

~~$5.38~~

$4.57

You save $0.81

More details

-50%

004

Honda

BOLT, FLANGE (6X12)90013-ZW9-000

Required: 2

BOLT, FLANGE (6X12)

In stock

Only 4 remaining

~~$1.96~~

$0.98

You save $0.98

More details

-15%

005

Honda

TIE, CABLE90650-ZY1-003

Required: 2

TIE, CABLE

~~$4.52~~

$3.84

You save $0.68

More details

-15%

006

Honda

CLIP A, HARNESS90654-ZY3-003

Required: 2

CLIP A, HARNESS

~~$2.92~~

$2.48

You save $0.44

More details

-15%

007

Honda

CLIP (155.3MM)91540-STK-003

Required: 2

CLIP, HARNESS BAND (155.3MM) (BLACK)

~~$5.68~~

$4.83

You save $0.85

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2007 And Later Marine Engine BF - BF175AK1 XA WIRE HARNESS diagram
