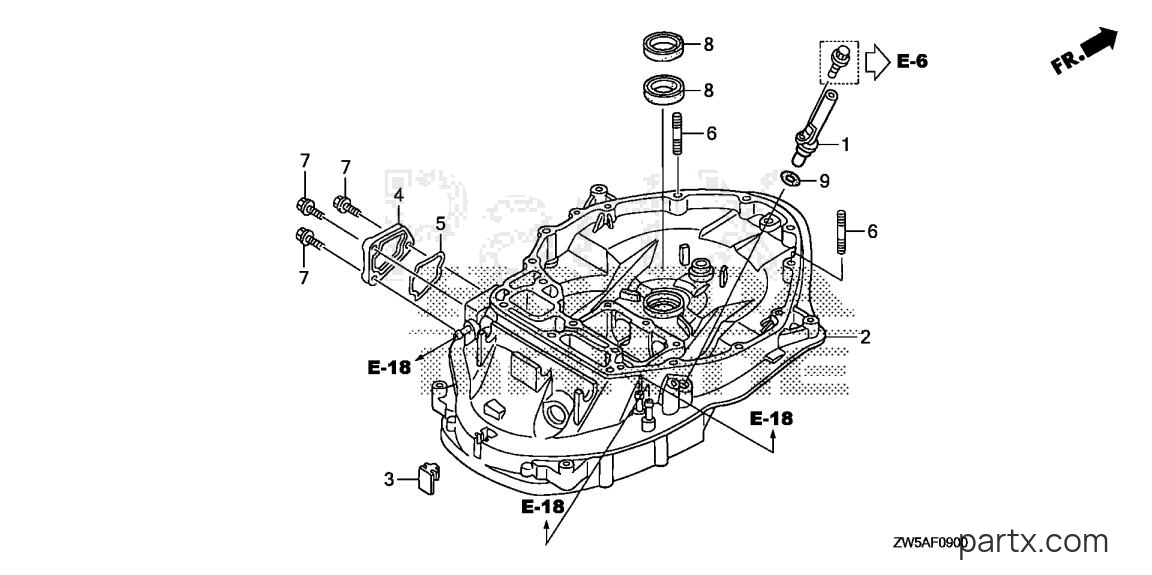

2007 And Later Marine Engine BF - BF115AK0 XA MOUNT CASE diagram
-15%
001
Honda
PIPE, OIL LEVEL15665-ZW1-030
Required: 1
PIPE, OIL LEVEL
$14.26
You save $2.52
-15%
002
Honda
CASE, MOUNT *NH8*23170-ZW5-000ZA
Required: 1
CASE, MOUNT *NH8*(DARK GRAY) (NOT AVAILABLE)
$657.55
You save $116.04
-15%
003
Honda
RUB, MOUNT CASE SEAL23173-ZW5-000
Required: 1
RUBBER, MOUNT CASE SEAL
$4.76
You save $0.84
-15%
004
Honda
COVER, MOUNT CASE23175-ZW5-000
Required: 1
COVER, MOUNT CASE
$27.73
You save $4.89
004
Honda
COVER, MOUNT CASE *NH8*(DARK GRAY) (NOT AVAILABLE)23175-ZW5-000ZA
Required: 1
COVER, MOUNT CASE *NH8*(DARK GRAY) (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
GASKET23176-ZW5-003
Required: 1
GASKET, MOUNT CASE COVER
$8.94
You save $1.58
-15%
006
Honda
BOLT, STUD (10X35)90009-ZW5-010
Required: 2
BOLT, STUD (10X35)
$2.33
You save $0.41
-50%
007
Honda
BOLT, FLANGE (6X20)90018-ZW5-000
Required: 3
BOLT, FLANGE (6X20)
In stock
Only 1 remaining
$1.09
You save $1.09
-15%
008
Honda
SEAL (22X35X7)91202-ZW5-003
Required: 2
SEAL, WATER (22X35X7)
$13.77
You save $2.43
-15%
009
Honda
O-RING (11.5X3.5)91309-PJ7-010
Required: 1
O-RING (11.5X3.5)
$3.45
You save $0.61
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
