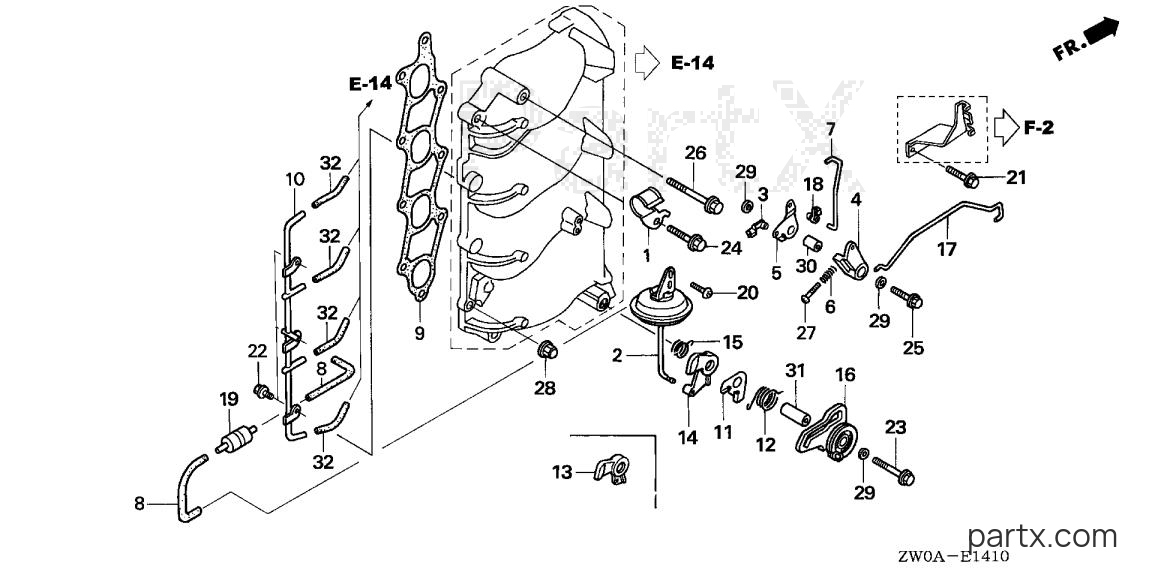

2005 Marine Engine BF - BF90A5 LHTA THROTTLE CAM diagram
-15%
001
Honda
CLAMP, TUBE12328-ZW1-000
Required: 1
CLAMP, TUBE
$14.43
You save $2.55
-15%
002
Honda
DIAPHRAGM ASSY.16240-ZW0-L02
Required: 1
DIAPHRAGM ASSY. (NOT AVAILABLE)
$61.39
You save $10.83
-15%
$4.27
You save $0.75
-15%
004
Honda
ARM A, CHOKE16574-ZV5-000
Required: 1
ARM A, CHOKE
No longer availableSearch Nationwide Inventory
$7.07
You save $1.25
005
Honda
ARM B, CHOKE (NOT AVAILABLE)16575-ZW1-000
Required: 1
ARM B, CHOKE (NOT AVAILABLE)
Price unavailable
006
Honda
SPRING, CHOKE ARM ADJUSTING (NOT AVAILABLE)16659-ZV5-000
Required: 1
SPRING, CHOKE ARM ADJUSTING (NOT AVAILABLE)
Price unavailable
-15%
$3.98
You save $0.70
008
Honda
TUBE, FUEL (D) (NOT AVAILABLE)16881-ZW1-L00
Required: 2
TUBE, FUEL (D) (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
GASKET, IN. MANIFOLD17151-ZW1-000
Required: 1
GASKET, IN. MANIFOLD
$14.96
You save $2.64
010
Honda
PIPE, INSTALL (NOT AVAILABLE)17881-ZW1-010
Required: 1
PIPE, INSTALL (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
PLATE, ASSIST17927-ZV5-000
Required: 1
PLATE, ASSIST
$7.75
You save $1.37
-15%
012
Honda
SPRING, ASSIST17928-ZW0-L00
Required: 1
SPRING, ASSIST (NOT AVAILABLE)
$3.64
You save $0.64
013
Honda
CAM, THROTTLE OPENER (NOT AVAILABLE)17937-ZW0-L00
Required: 1
CAM, THROTTLE OPENER (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
SPRING17938-ZV5-000
Required: 1
SPRING, OPENER CAM RETURN
$3.16
You save $0.56
016
Honda
CAM, THROTTLE (NOT AVAILABLE)17946-ZW1-000
Required: 1
CAM, THROTTLE (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
ROD, CHOKE KNOB17955-ZW1-000
Required: 1
ROD, CHOKE KNOB (NOT AVAILABLE)
$6.97
You save $1.23
-15%
018
Honda
BUSH, LINKAGE17957-ZV4-000
Required: 1
BUSH, LINKAGE
$2.14
You save $0.38
019
Honda
VALVE, DASHPOT CHECK (NOT AVAILABLE)36135-ZW1-L01
Required: 1
VALVE, DASHPOT CHECK (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
BOLT, TORX (6X14)90011-ZV5-003
Required: 2
BOLT, TORX (6X14)
$1.63
You save $0.29
-20%
021
Honda
BOLT, FLANGE (6X16)90017-ZZ5-M01
Required: 2
BOLT, FLANGE (6X16)
$1.33
You save $0.33
-15%
022
Honda
BOLT, FLANGE (5X10)90019-ZV1-010
Required: 3
BOLT, FLANGE (5X10)
$1.53
You save $0.27
023
Honda
BOLT, FLANGE (6X45)90020-ZW5-000
Required: 1
BOLT, FLANGE (6X45)
Price unavailable
-20%
024
Honda
BOLT, FLANGE (8X35)90054-ZY9-M01
Required: 6
BOLT, FLANGE (8X35)
$1.84
You save $0.46
-15%
025
Honda
BOLT, FLANGE (6X30)90002-ZZ5-M01
Required: 1
BOLT, FLANGE (6X30)
$1.65
You save $0.29
-15%
026
Honda
BOLT, FLANGE (8X70)90158-ZW4-030
Required: 1
BOLT, FLANGE (8X70)
$2.24
You save $0.40
027
Honda
SCREW, PAN (4X16) (NOT AVAILABLE)90180-ZW4-000
Required: 1
SCREW, PAN (4X16) (NOT AVAILABLE)
Price unavailable
-15%
028
Honda
NUT, CAP (8MM)90208-438-000
Required: 2
NUT, CAP (8MM)
$3.71
You save $0.65
-15%
029
Honda
WASHER, PLAIN (6MM)90512-ZV4-000
Required: 3
WASHER, PLAIN (6MM)
$3.43
You save $0.61
-15%
030
Honda
COLLAR (6.5X10.5X16)91503-ZV5-000
Required: 1
COLLAR, DISTANCE (6.5X10.5X16)
$5.81
You save $1.03
031
Honda
COLLAR (6.7X12.5X31.5) (NOT AVAILABLE)91504-ZW1-000
Required: 1
COLLAR (6.7X12.5X31.5) (NOT AVAILABLE)
Price unavailable
-15%
032
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 4
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X50)
$25.02
You save $4.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
