All diagrams for this model

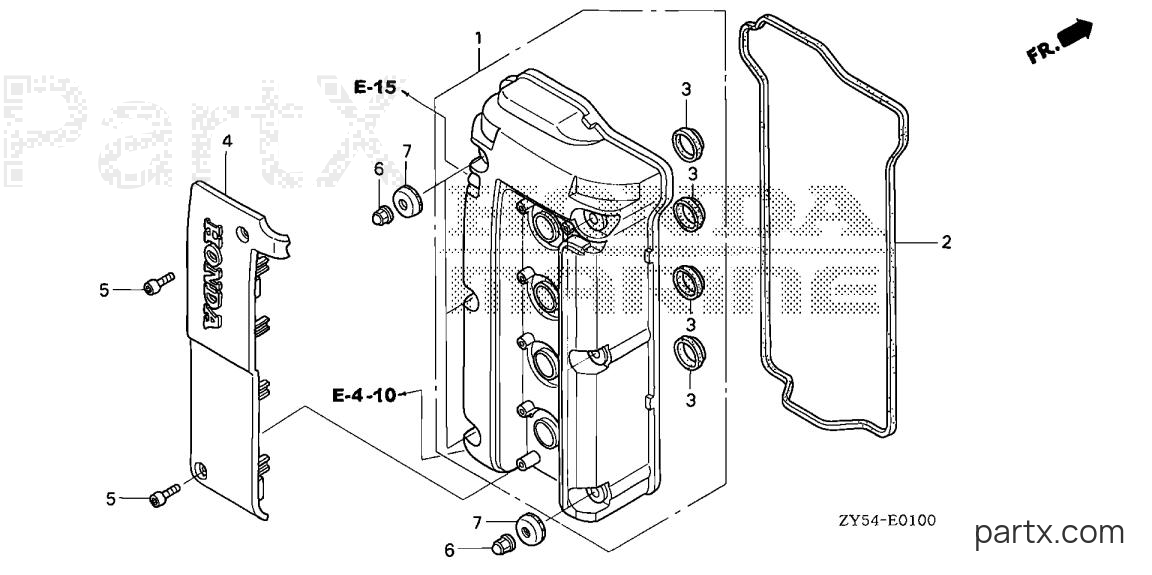

2004 Marine Engine BF - BF135A4 XCA CYLINDER HEAD COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF135A4 XCA - CYLINDER HEAD COVER
Change View:
COVER, CYLINDER HEAD *NH8*(DARK GRAY) (FOR 14540-PRB-A01)
001
Honda
COVER, CYLINDER HEAD *NH8*(DARK GRAY) (FOR 14540-PRB-A01)12310-ZY6-000ZA
Required: 1
COVER, CYLINDER HEAD *NH8*(DARK GRAY) (FOR 14540-PRB-A01)
Price unavailable
-15%
COVER, CYL HD *NH8*
001
Honda
COVER, CYL HD *NH8*12310-ZY6-010ZA
Required: 1
COVER, CYLINDER HEAD *NH8*(DARK GRAY) (FOR 14540-RWC-A02)
Cross Ship
Leaves in 2-5 days
$370.58
$314.99
You save $55.59
More details
-15%
GASKET, CYL HD CVR
002
Honda
GASKET, CYL HD CVR12341-RTA-000
Required: 1
GASKET, CYLINDER HEAD COVER
Cross Ship
Leaves in 2-5 days
$24.04
$20.43
You save $3.61
More details
-15%
SEAL, S/PLUG TUBE
003
Honda
SEAL, S/PLUG TUBE12342-PCX-004
Required: 4
SEAL, SPARK PLUG TUBE (NOK)
Cross Ship
Leaves in 2-5 days
$10.74
$9.13
You save $1.61
More details
-15%
CVR, PLUG HOLE COIL
004
Honda
CVR, PLUG HOLE COIL12500-ZY6-000
Required: 1
COVER, PLUG HOLE COIL
Cross Ship
Leaves in 2-5 days
$50.02
$42.52
You save $7.50
More details
-15%
BOLT, SOCKET (6X25)
005
Honda
BOLT, SOCKET (6X25)90084-ZY3-000
Required: 2
BOLT, SOCKET (6X25)
Cross Ship
Leaves in 2-5 days
$7.10
$6.03
You save $1.07
More details
NUT, FLANGE CAP (6MM)
006
Honda
NUT, FLANGE CAP (6MM)90201-ZY6-000
Required: 6
NUT, FLANGE CAP (6MM)
Price unavailable
-15%
NUT (6MM)
006
Honda
NUT (6MM)90201-ZY6-030
Required: 6
NUT, FLANGE CAP (6MM)
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
-15%
WASHER, HEAD COVER
007
Honda
WASHER, HEAD COVER90401-ZY6-000
Required: 6
WASHER, HEAD COVER
Cross Ship
Leaves in 2-5 days
$8.74
$7.43
You save $1.31
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
