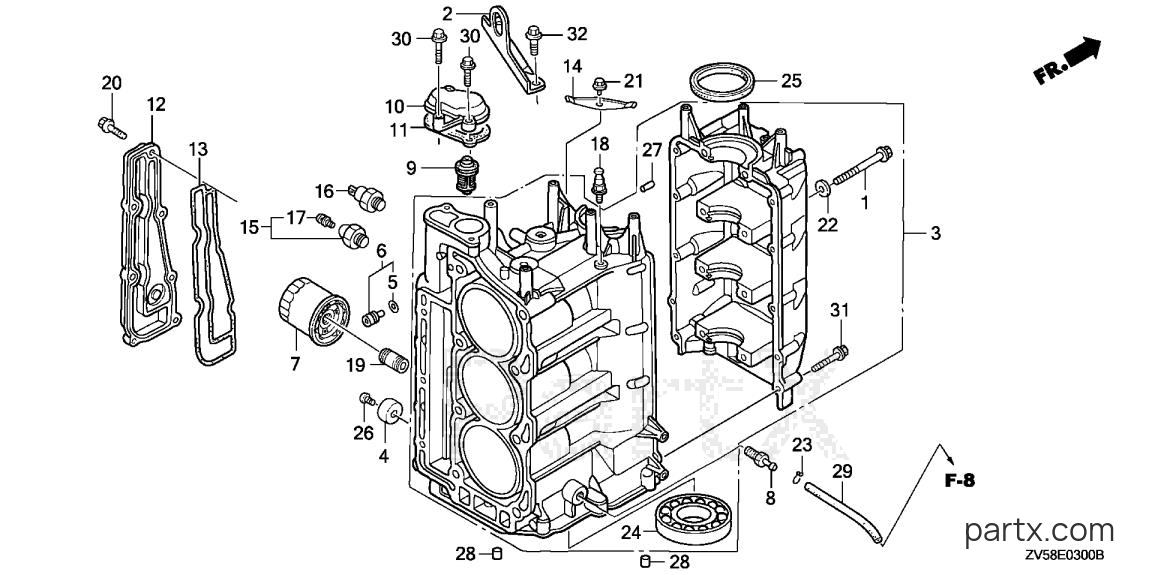

2003 Marine Engine BF - BF50A3 LRTA CYLINDER BLOCK diagram
-15%
001
Honda
BOLT, FLANGE (8X94)11115-ZZ5-M02
Required: 8
BOLT, FLANGE (8X94)
$2.99
You save $0.53
-15%
002
Honda
HANGER, ENGINE11911-ZV5-020
Required: 1
HANGER, ENGINE
$8.25
You save $1.46
003
Honda
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY) (NOT AVAILABLE)12000-ZV5-010ZA
Required: 1
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY) (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
METAL, ANODE12155-ZV5-000
Required: 1
METAL, ANODE
$10.78
You save $1.90
-20%
004
Honda
METAL, ANODE12155-ZV5-010
Required: 1
METAL, ANODE
In stock
Only 5 remaining
$10.14
You save $2.54
-15%
005
Honda
O-RING (4.8X1.9)15142-PE0-000
Required: 1
O-RING (4.8X1.9)
$3.03
You save $0.53
-15%
006
Honda
ORIFICE, OIL PASSAGE15150-ZV5-000
Required: 1
ORIFICE ASSY., OIL PASSAGE
$8.48
You save $1.50
007
Honda
FILTER, OIL (DENSO)15400-PFB-007
Required: 1
FILTER, OIL (DENSO)
Price unavailable
-20%
007
Honda
FILTER, OIL15400-ZZ3-003
Required: 1
FILTER, OIL (DENSO)
In stock
Only 1 remaining
$17.52
You save $4.38
-15%
008
Honda
JOINT, WATER HOSE19271-ZV5-000
Required: 1
JOINT, WATER HOSE
$12.90
You save $2.28
-20%
009
Honda
THERMOSTAT ASSY.19300-ZV5-043
Required: 1
THERMOSTAT ASSY.
In stock
Only 1 remaining
$31.66
You save $7.92
-15%
010
Honda
COVER, THERMOSTAT19315-ZV5-010
Required: 1
COVER, THERMOSTAT
$29.16
You save $5.15
-20%
011
Honda
GASKET19351-ZV5-000
Required: 1
GASKET, THERMOSTAT COVER
$3.17
You save $0.79
-15%
012
Honda
COVER, WATER JACKET19361-ZV5-000
Required: 1
COVER, WATER JACKET
$52.87
You save $9.33
-15%
013
Honda
GASKET19371-ZV5-000
Required: 1
GASKET, WATER JACKET COVER
$13.99
You save $2.47
014
Honda
HOLDER, WIRE (A)32116-ZV5-000
Required: 1
HOLDER, WIRE (A)
Price unavailable
-15%
014
Honda
HOLDER, WIRE32116-ZV5-010
Required: 1
HOLDER, WIRE (A)
$8.57
You save $1.51
-15%
015
Honda
SWITCH, OIL PRESSURE37240-ZG3-E01
Required: 1
SWITCH, OIL PRESSURE
$38.05
You save $6.71
-15%
016
Honda
SWITCH, THERMOSTAT37760-ZV5-003
Required: 1
SWITCH ASSY., THERMOSTAT (NOT AVAILABLE)
$51.70
You save $9.12
-15%
017
Honda
SCREW-WASHER (4X8)90002-ZG5-004
Required: 1
SCREW-WASHER (4X8)
$7.72
You save $1.36
-15%
018
Honda
BOLT90012-ZZ5-M02
Required: 1
BOLT, TIMING BELT ADJUSTING SPRING
$4.22
You save $0.74
-15%
019
Honda
HOLDER, OIL FILTER90018-PN3-000
Required: 1
HOLDER, OIL FILTER
$7.96
You save $1.40
-15%
020
Honda
BOLT, FLANGE (6X22)90020-ZV5-000
Required: 7
BOLT, FLANGE (6X22)
$2.16
You save $0.38
-15%
021
Honda
BOLT, FLANGE (6X12)90122-ZV1-010
Required: 1
BOLT, FLANGE (6X12)
$1.73
You save $0.31
-15%
022
Honda
WASHER, PLAIN (8MM)90405-ZZ5-M01
Required: 8
WASHER, PLAIN (8MM)
$2.21
You save $0.39
-15%
023
Honda
CLIP, TUBE (B8)90602-921-000
Required: 1
CLIP, TUBE (B8)
$1.56
You save $0.28
-15%
024
Honda
BEARING (6005)91003-ZV5-003
Required: 1
BEARING, RADIAL BALL (6005)
$15.71
You save $2.77
-15%
025
Honda
OIL SEAL (56X70X8)91202-ZV5-005
Required: 1
OIL SEAL (56X70X8)
$13.02
You save $2.30
-50%
026
Honda
SCREW, PAN (6X18)93500-06018-4J
Required: 1
SCREW, PAN (6X18)
In stock
Only 3 remaining
$0.99
You save $0.99
-15%
027
Honda
PIN, DOWEL (10X12)94301-10120
Required: 8
PIN, DOWEL (10X12)
$2.55
You save $0.45
-15%
028
Honda
PIN A, DOWEL (12X16)94301-12160
Required: 2
PIN A, DOWEL (12X16)
$2.55
You save $0.45
-15%
028
Honda
PIN, DOWEL (6X10)94303-06100
Required: 2
PIN, DOWEL (6X10)
$2.33
You save $0.41
-15%
029
Honda
BULK HOSE (4.5X1000)95005-45001-30M
Required: 1
BULK HOSE, VACUUM (4.5X1000) OEM CUT SIZE: (4.5X125)
$10.23
You save $1.81
-15%
030
Honda
BOLT, FLANGE (6X20)95701-06020-02
Required: 2
BOLT, FLANGE (6X20)
$1.21
You save $0.21
-15%
031
Honda
BOLT, FLANGE (6X40)95701-06040-02
Required: 10
BOLT, FLANGE (6X40)
$1.94
You save $0.34
-15%
032
Honda
BOLT, FLANGE (8X18)95701-08018-02
Required: 2
BOLT, FLANGE (8X18)
$1.53
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
