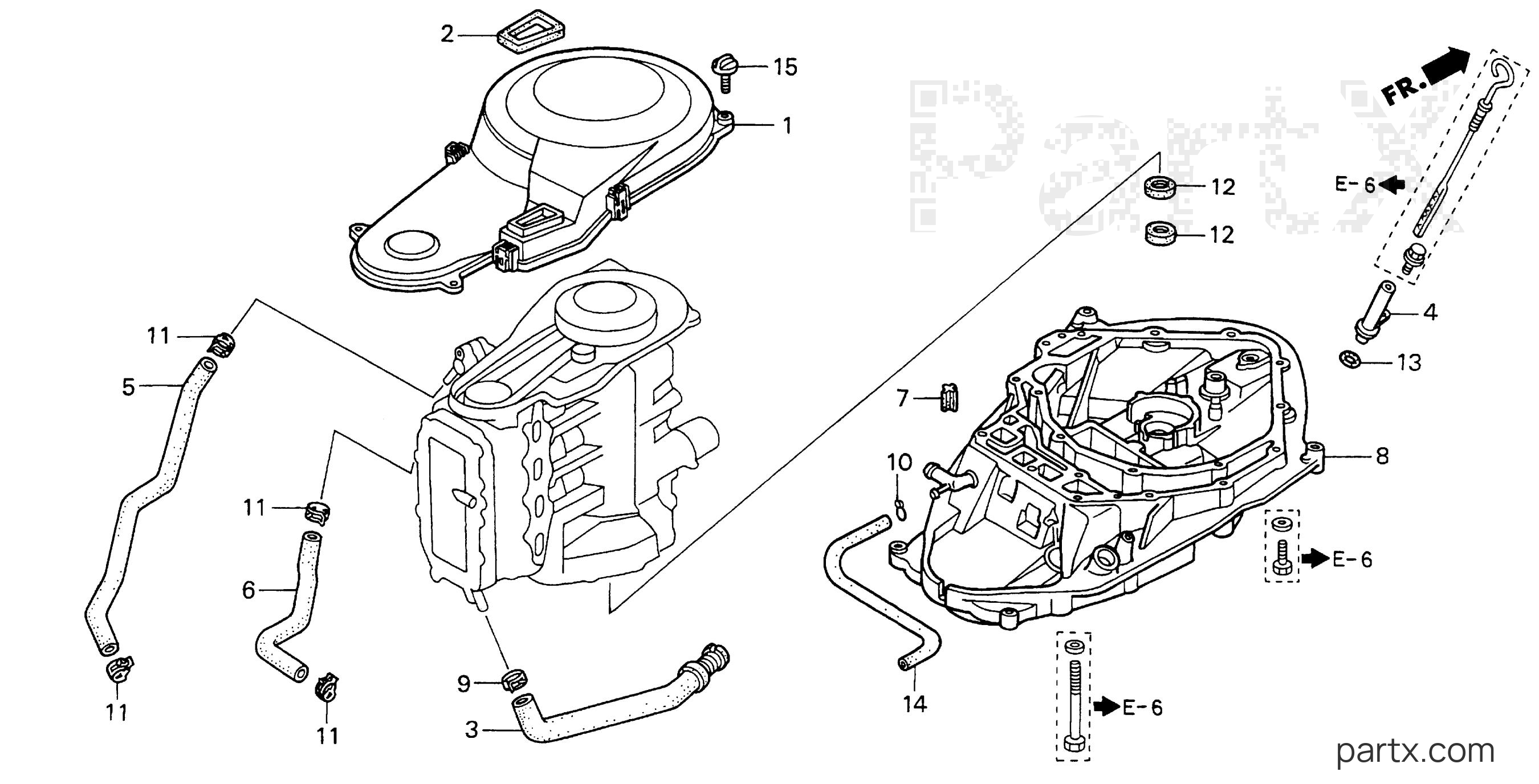

1999 Marine Engine BF - BF75AX LHTA TIMING BELT COVER - MOUNT CASE diagram
001
Honda
COVER, TIMING BELT (UPPER)11821-ZW1-000
Required: 1
COVER, TIMING BELT (UPPER)
Price unavailable
002
Honda
RUBBER, SEAL (NOT AVAILABLE)11831-ZW1-000
Required: 1
RUBBER, SEAL (NOT AVAILABLE)
Price unavailable
003
Honda
TUBE, OIL (NOT AVAILABLE)15422-ZW1-000
Required: 1
TUBE, OIL (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
PIPE, OIL LEVEL15665-ZW1-030
Required: 1
PIPE, OIL LEVEL
$14.26
You save $2.52
005
Honda
HOSE, FLUSHING WATER19274-ZW1-000
Required: 1
HOSE, FLUSHING WATER
Price unavailable
006
Honda
HOSE, WATER BYPASS (NOT AVAILABLE)19508-ZW1-000
Required: 1
HOSE, WATER BYPASS (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
RUBBER, SEAL23161-ZV5-000
Required: 1
RUBBER, SEAL (NOT AVAILABLE)
$3.03
You save $0.53
008
Honda
CASE, MOUNT *NH8*(DARK GRAY)23170-ZW1-000ZA
Required: 1
CASE, MOUNT *NH8*(DARK GRAY)
Price unavailable
-15%
009
Honda
CLAMP, TUBE (D22)90602-ZV5-013
Required: 1
CLAMP, TUBE (D22)
$2.48
You save $0.44
-15%
010
Honda
CLIP, TUBE (B8)90602-921-000
Required: 1
CLIP, TUBE (B8)
$1.56
You save $0.28
-15%
011
Honda
CLAMP, TUBE (D18.8)90602-ZV3-030
Required: 4
CLAMP, TUBE (D18.8)
$3.81
You save $0.67
012
Honda
SEAL, WATER (22X35X7) (NOT AVAILABLE)91201-ZW1-003
Required: 2
SEAL, WATER (22X35X7) (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
O-RING (11.5X3.5)91309-PJ7-010
Required: 1
O-RING (11.5X3.5)
$3.45
You save $0.61
-15%
014
Honda
BULK HOSE (4.5X1000)95005-45001-30M
Required: 1
BULK HOSE, VACUUM (4.5X1000) OEM CUT SIZE: (4.5X430)
$10.23
You save $1.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
