All diagrams for this model

1999 Marine Engine BF - BF90AX JRTA BOLT KIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

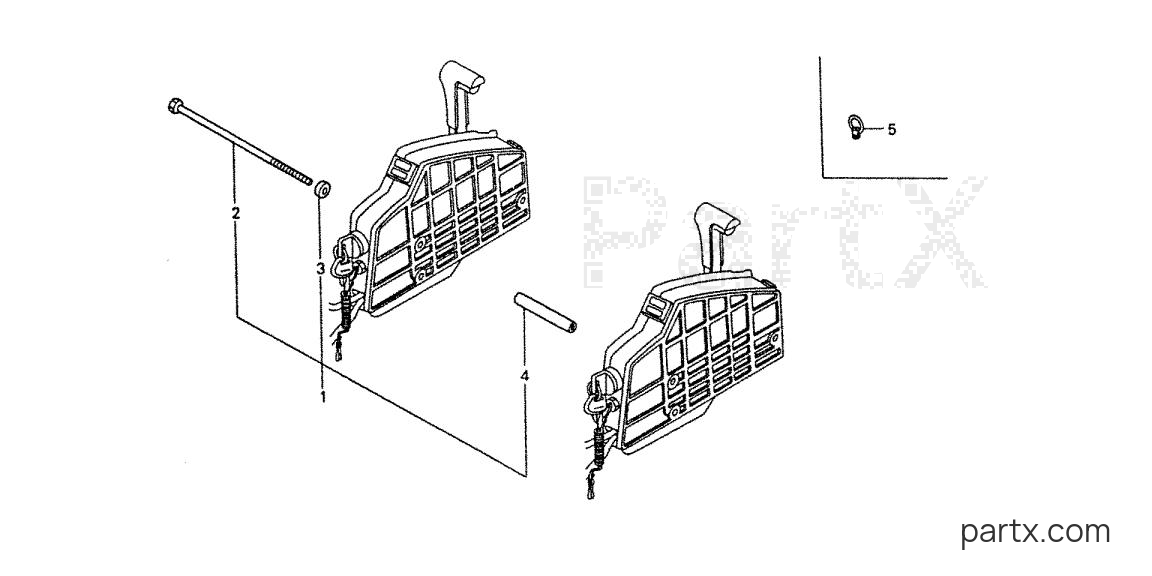

Honda BF90AX JRTA - BOLT KIT
Change View:
-15%
BOLT KIT
001
Honda
BOLT KIT06900-ZW5-U00
Required: 1
BOLT KIT, SIDE REMOTE CONTROL
Cross Ship
Leaves in 2-5 days
$110.24
$93.70
You save $16.54
More details
-15%
BOLT (6X220)
002
Honda
BOLT (6X220)90021-ZW5-U00
Required: 3
BOLT, SPECIAL (6X220)
Cross Ship
Leaves in 2-5 days
$17.44
$14.82
You save $2.62
More details
-15%
COLLAR, DISTANCE
003
Honda
COLLAR, DISTANCE90511-ZW5-U00
Required: 3
COLLAR, DISTANCE (A)
Cross Ship
Leaves in 2-5 days
$5.28
$4.49
You save $0.79
More details
-15%
COLLAR, DISTANCE
004
Honda
COLLAR, DISTANCE90512-ZW5-U00
Required: 3
COLLAR, DISTANCE (B)
Cross Ship
Leaves in 2-5 days
$8.82
$7.50
You save $1.32
More details
-15%
EYE, LIFTING
005
Honda
EYE, LIFTING07SPZ-ZW0010Z
Required: 1
LIFTING EYE
Cross Ship
Leaves in 2-5 days
$106.54
$90.95
You save $15.59
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
